Figure 3-11 m, Calibration tab for the calibration at lens mode – Gentec-EO Beamage-M2 User Manual
Page 20
Beamage-M
2
User Manual Revision 2.0
20
8- The “Calibration At Lens” Mode Calibration Tab :

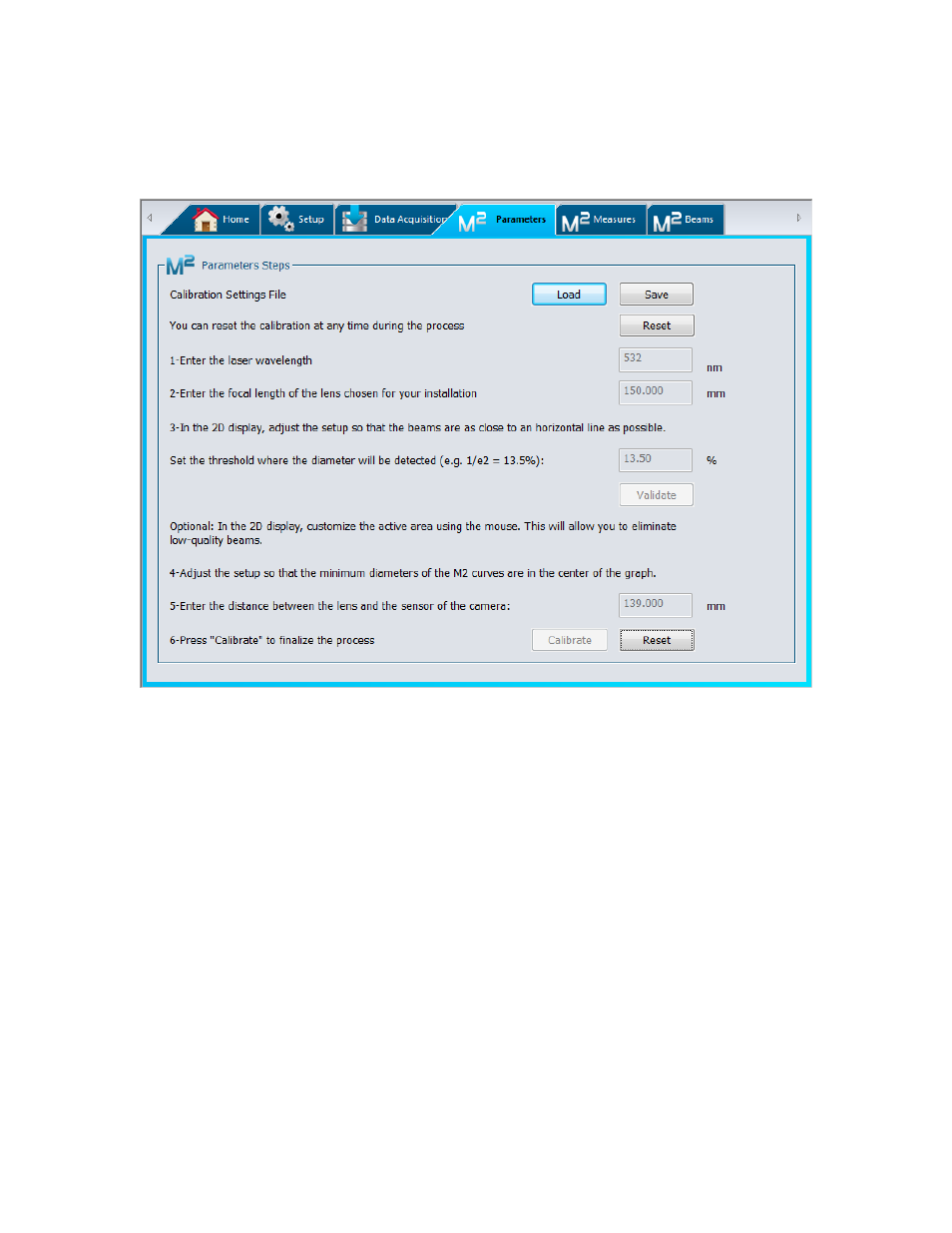

Figure 3-11 M
2
Calibration Tab for the Calibration At Lens Mode
The M
2
Calibration tab allows the user to calibrate the Beamage-M2 module before doing real-time M
2
calculations in the M
2
Measures tab.
The calibration is a step by step procedure and must be done one step at a time following a precise order. To
validate a value, press the ENTER or the TAB key. For the button, press ENTER or left click with a mouse to
validate a value. If, at any time, a wrong value has been entered, the Reset button can be pressed. If so, the
complete procedure must be done again from the first step.
When the Save Calibrate button is pressed, the M
2
and other parameters calculations will be displayed in real-
time in the M
2
Measures tab (refer to section 3.4).
