3.5. The M
2
Display
The 2D M
2
Display shows the beam’s intensity in two dimensions. Each beam slice is represented in this 2D
display.

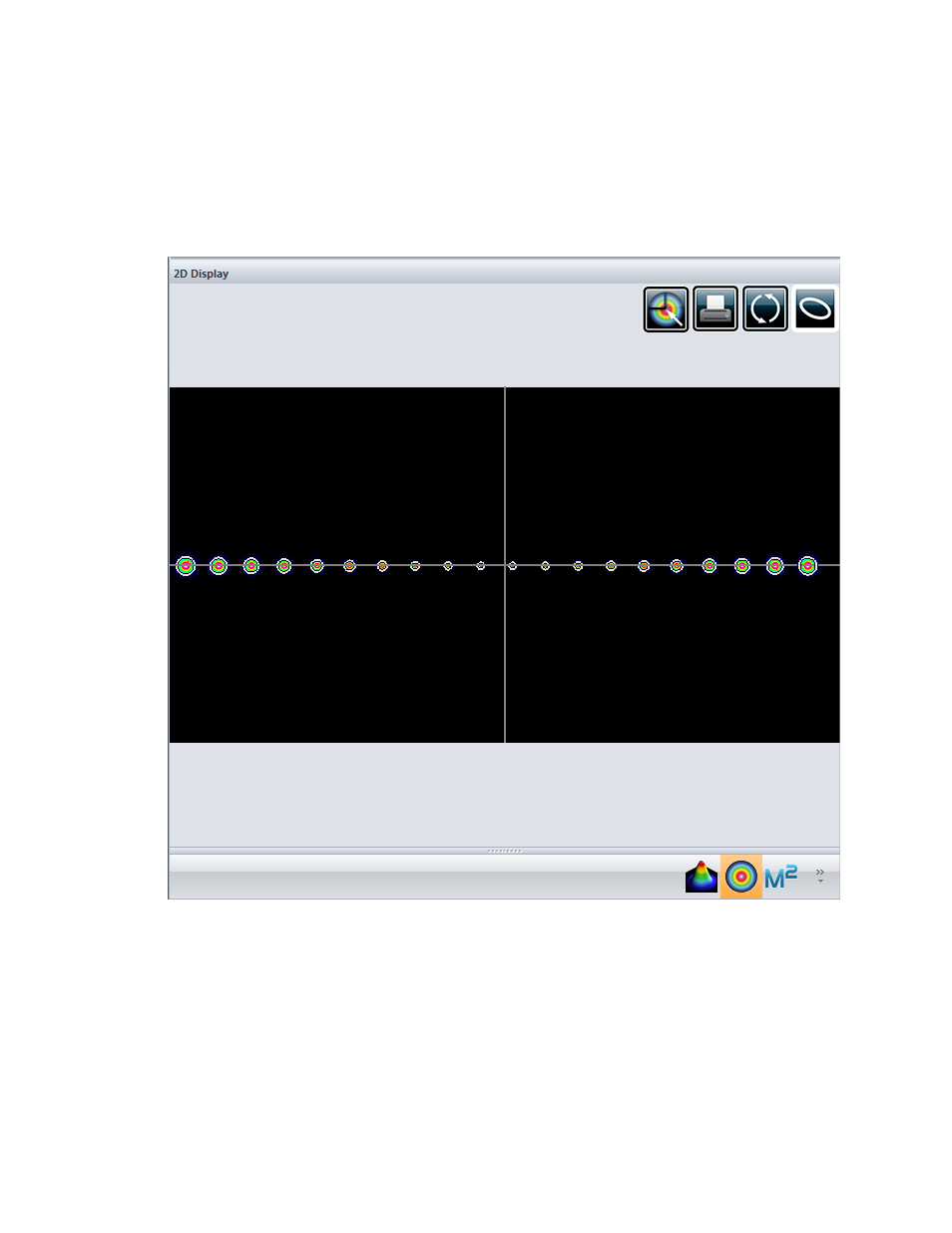

Figure 3-25 2D M
2
Display
Hold down the left button of the mouse while moving around the screen to move the image. Pressing the arrow
keys will also move the image. The mouse scroll zooms the image in or out. Pressing the + and – keys also
controls the zoom.
M
2
Display: Controls
The toolbar buttons in the upper right corner control the 2D M
2
image.
