Beamage-M
2
User Manual Revision 2.0
16

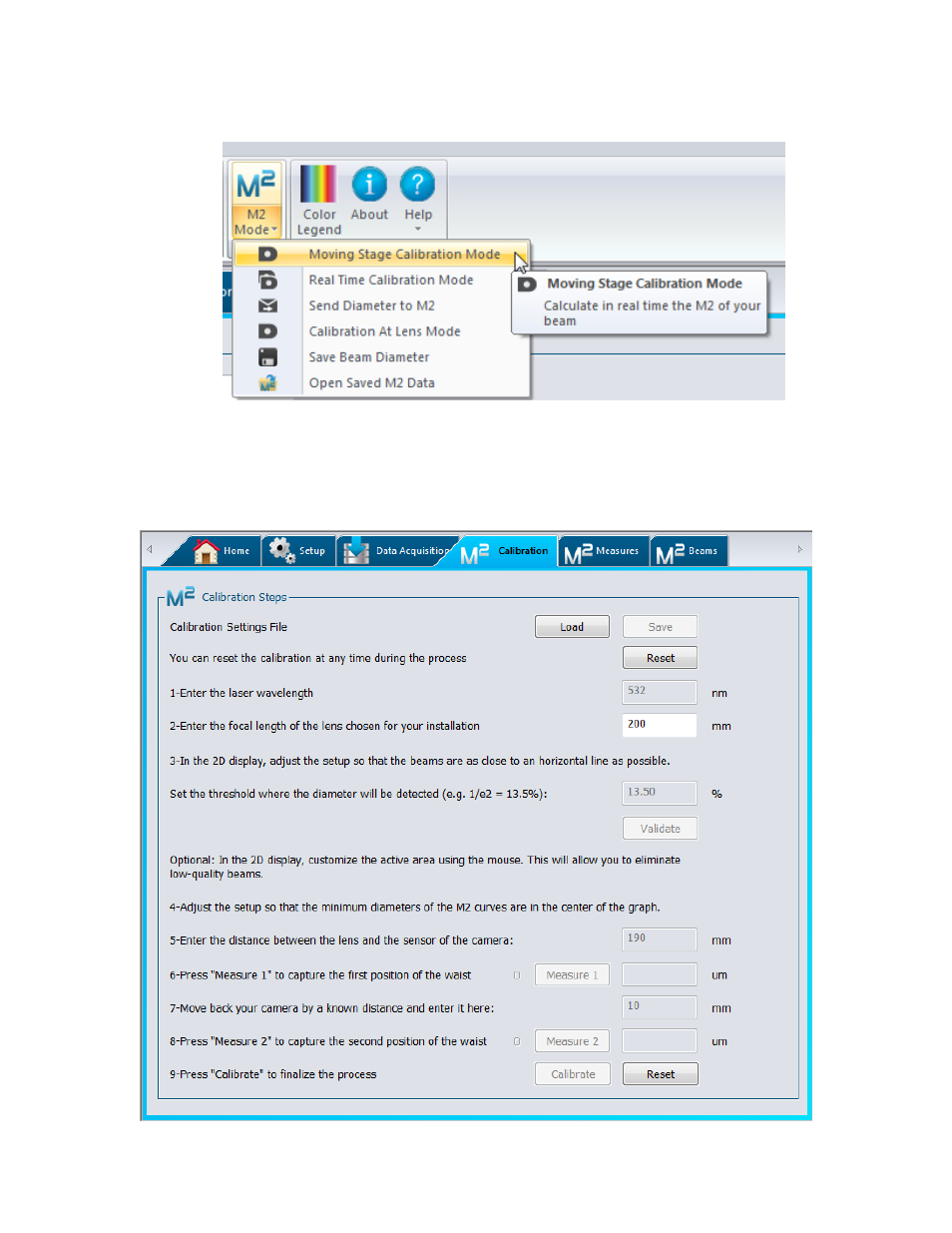

Figure 3-4 Moving Stage Calibration Mode Selection
It activates two new tabs on the right-hand side of the user interface. All the settings and results relative
to the M
2
measurement can be found in those new tabs.
4- The M
2
Moving Stage Calibration Mode Tab :
Figure 3-5 M
2
Moving Stage Calibration Mode
