Page 82
Chapter 4: System Setup and Wiring
Page 4-38
4.12 Firmware Flash Connector (CN8)
Upgrades or revisions to Firmware are handled easily with the on board Flash connector lo-
cated on the bottom of each SAN Unit. There is no need to remove or disassemble the unit.
A Flash adapter (SAN-ROM) containing the new firmware can be connected to connector
CN8 with the power off to the unit. The power is then cycled on and off with the adapter in
place and the firmware is automatically updated.
Note: This connector is for FEC use only and it is not recommended for use other than
FEC.
SAN-3 E0350061-L Flash Programmer
SAN-2 E0520021-L Flash Programmer

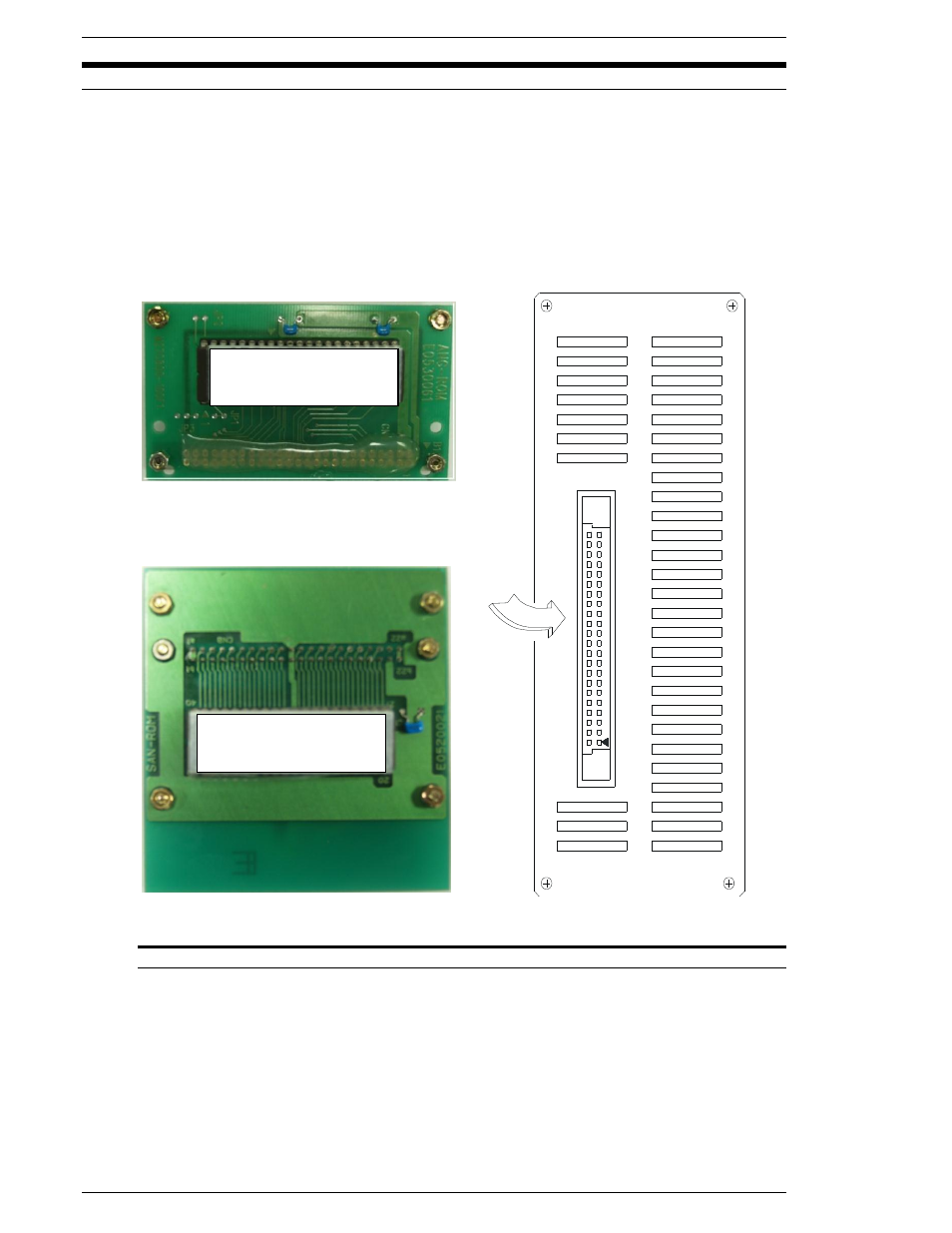

FIG 4-12: CN8 location (SAN) unit bottom view).
CN 8
AFC1500 SAN-3
Version 2.36
E0530061-L Programmer
AFC1500 SAN-2
Version 2.24
E0520021-L Programmer
