Data No.00 Torque Unit

All fastening parameters inside the spindle use the same torque unit.
0= Nm, 1=Kgm, 2=Kgcm, 3=Ftlbs, 4=Inlbs

Data No.01 NR Version / Parameter Copy

This shows the version of AXIS Unit software version and can be used to perform the fol-
lowing functions.

How to copy parameters individually

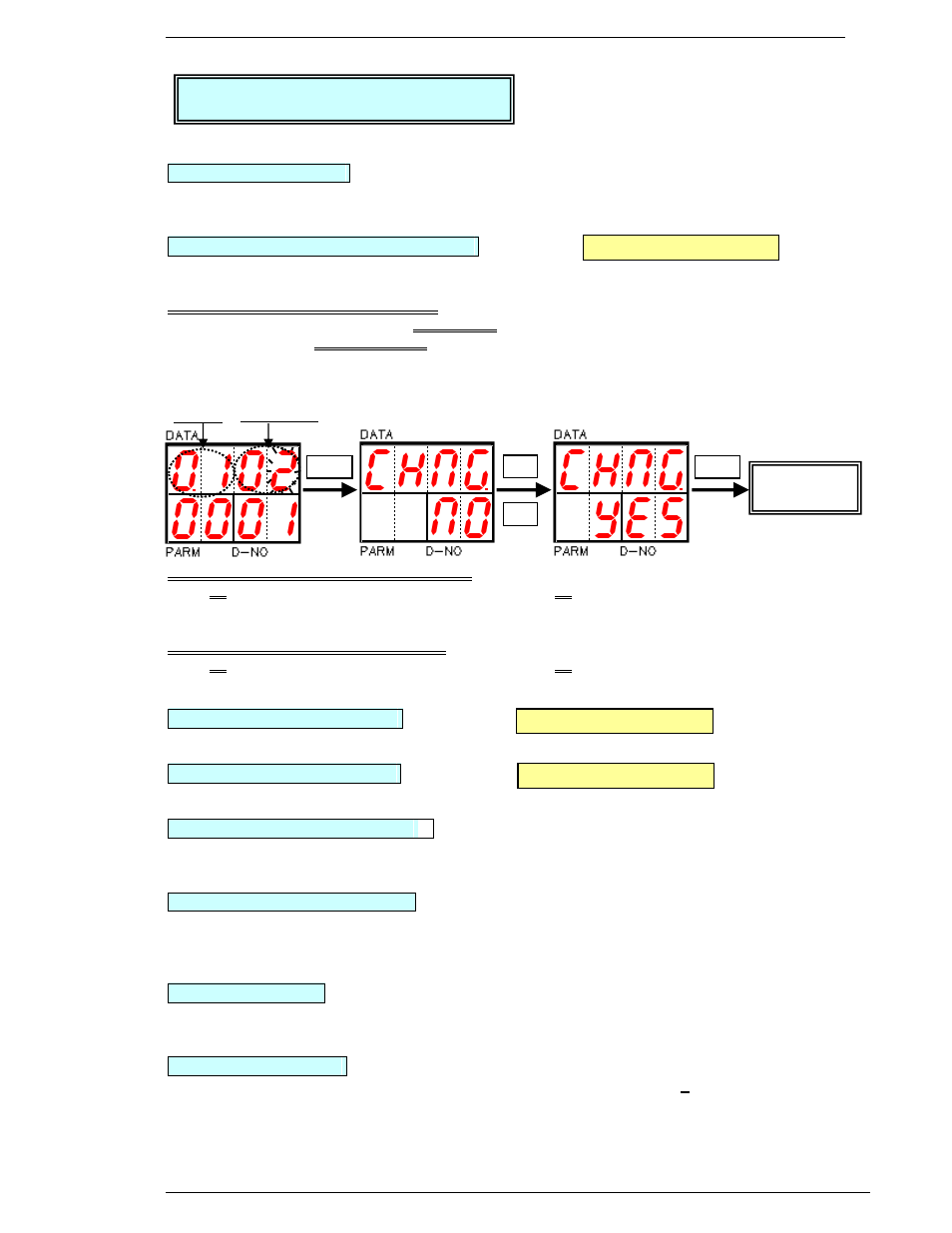

Enter the parameter Number of the copy source into the first two digits of [DATA] indicator, and the
parameter No. of the copy destination into the last two digits.

The parameter will be copied when normal parameter setting procedure is completed.

How to copy multiple parameters at once
Enter 99 into the first two digits of [DATA] indicator, and 16 into the last two digits. Perform normal
parameter setting procedures. Parameter 1 will be copied to parameter 2~16.

How to erase fastening results record
Enter 99 into the first two digits of [DATA] indicator, and 99 into the last two digits. Perform normal
parameter setting procedures. Fastening results records will be all erased.

Data No.02 Amplifier Version

Version of amplifier is displayed.

Data No.03 Function Version

This is used for special functions.
Setting: 1.03 = Multi assumes I/O 1.27= Stand-Alone PLC I/O 1.23=Dual Transducer Mode

Data No.04 External Gear Ratio

Standard setting: 1.000
Setting range: 0.300 ~ 3.000
Used to adjust the gear ratio when an external head is connected to the output of the tool assembly.

Data No.07 Angle Decimal Point

Firmware Version 5.09 or later
Setting 0000 or, 0002 : No Angle Decimal place (1) Ex. xxxx degrees
Setting 0001 or 0003 : One Decimal place (0.1) Ex. xxx.x degrees

Data No.20 Tool No.

Set the connected tool number from the appendix [Tool Type List] included in the end of this instruc-
tion manual.

Data No.30 Time Setup

Sets the Date / Time when a SAN3-DP1 or DP2 is used. (Requires a SAN3

– DPx to be installed)

System Parameters Parameter No. 00

SET

↑

↓

Source Destination

SET

Copy

* Cannot be changed
