FEC AFC1500 User Manual
Page 128
Chapter 7: System Operations
Page 7-14
Data No.11 Peak Torque Low Limit [Nm, Kgm...]
Data No.12 Peak Torque High Limit Nm, Kgm...]
Setting range: 0 ~ [10: Calibration torque] × 1.1
Setting points for the High and Low limits of the Peak Fastening Torque. If the High or Low limits are
exceeded the operation is rejected.
Data No.13 Standard Torque [Nm, Kgm...]
Setting range: 0 ~ [10: Calibration torque] × 1.0
Set point of the Fastening Standard (Target) Torque. This function is only available when Torque
method is selected for [00: Fastening Mode].
Data No.14 Speed Change Torque [Nm, Kgm...]
Setting range: 0 ~ [10: Calibration torque] × 1.0
Set the torque value that switches Freerun speed to Slowdown speed.
Data No.15 1ST Torque [Nm, Kgm...] Setting range: 0 ~ [10: Calibration torque] × 1.0
Data No.23 1ST Angle [deg] Setting range: 0 ~ 9999
1
ST
stop / synchronization point for multiple step fastening operations.
End point for 1
st
torque rate calculation. [17: Threshold Torque is beginning]
Shift point for changing to Torque Speed [53: Torque Speed]
End of 1
st
Time and beginning of Final Time
Even if Freerun Revolutions are not achieved, the speed will change to
Slow Down Speed when Speed Change Torque is detected.

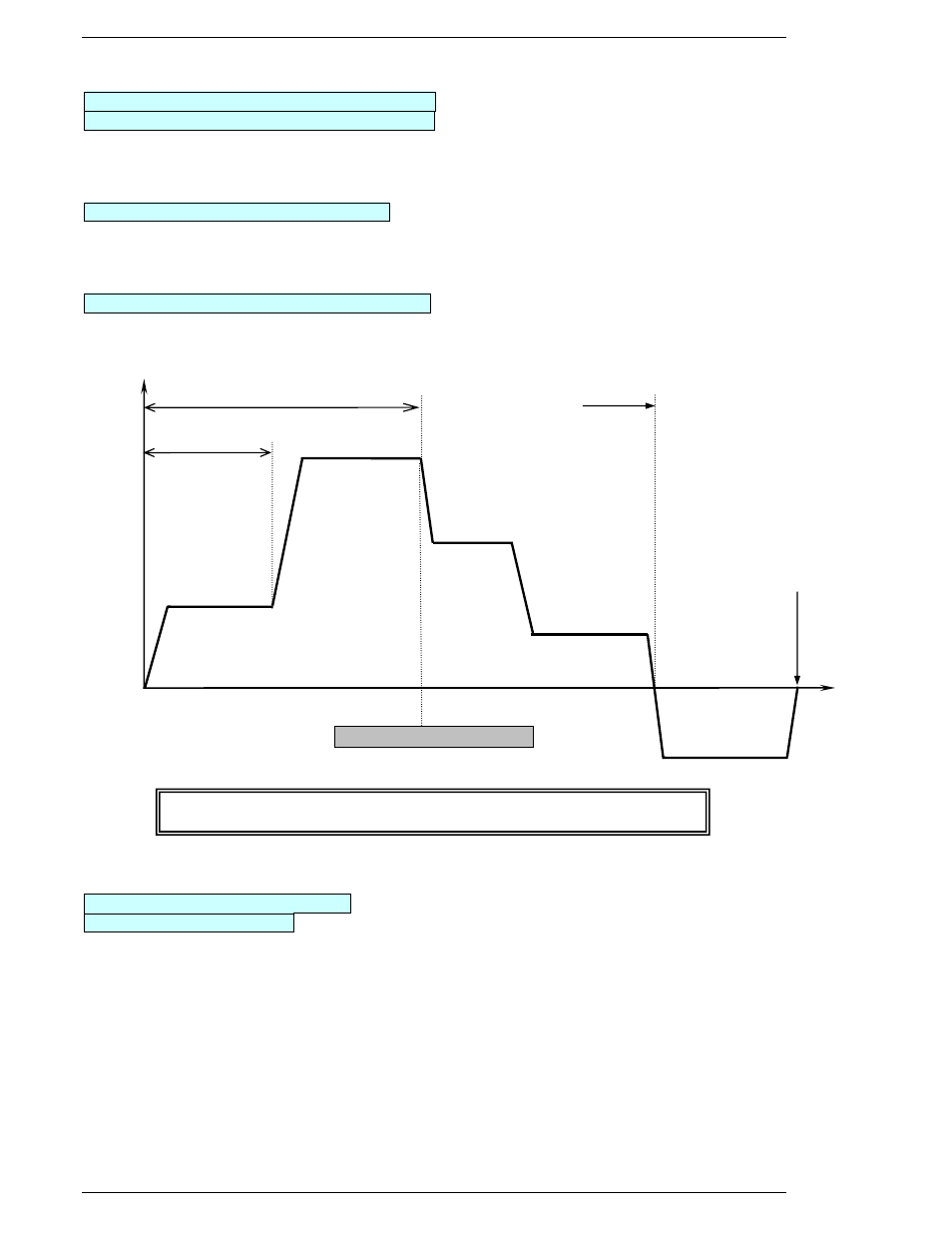

SPEED
60 Freerun Revolutions
51 Freerun
Speed
40 Initial Time
14 Speed Change Torque
52 Slowdown Speed
53 Torque Speed
54 Reverse Speed
50 Initial Speed
63 Reverse Revolutions
Fastening
