FEC AFC1500 Operations Manual

Chapter 3: System Description

(Rev. 6:10/09)

Page 3-5

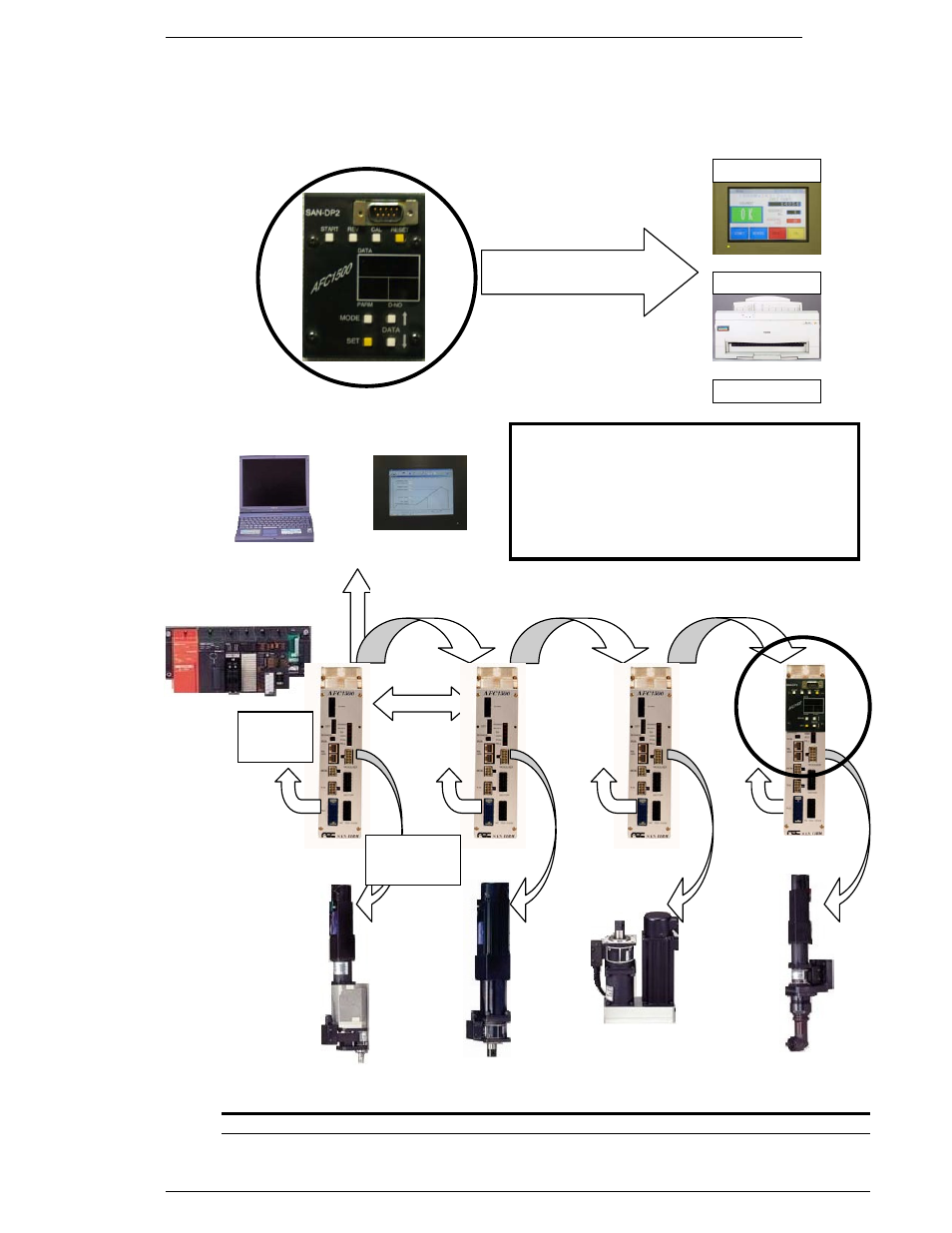

FIG. 3-1-2 AFC1500 Block Diagram with out Multi Unit connection (Stand-Alone)

1 ~ 31 Spin-

RS485 com-
munications

User Console

RS485

User Console HMI

Embedded

User Console De-

tachable Laptop

Motor/Resolver,

& Transducer

Tool Cables

Individual

Spindle

PLC I/O

Individual Spindle
Serial Output (1) Port
Per Display Unit (RS232)

Serial display panel

Serial Printer

Misc. Serial Device

Serial Data output via a SAN-DP2, SAN3-DP2 or
SAN-DP4 unit is available as a single spindle out-
put only. When multiple spindle data is required
an Embedded PC with the AFC Userconsole soft-
ware or a MULTI unit must be used.

*Use cable FEB-1266
RS232/RS485 convertor cable assembly
