Chapter 7: System Operations
Page 7-8

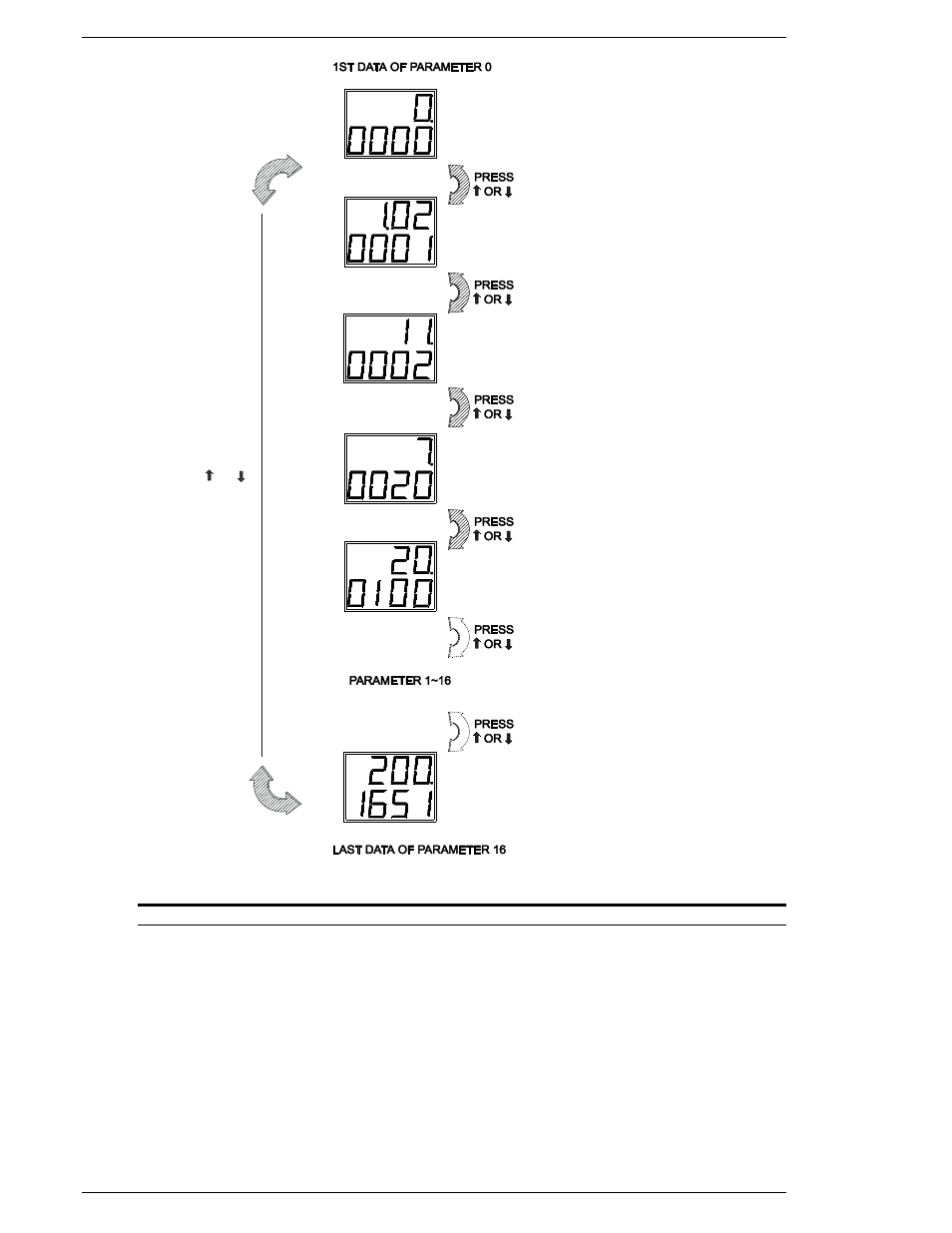

FIG. 7-2-4b Parameter display D-No selection
When Parameter Display mode is enabled, the [D-No] display will show 2 digits (00-73) representing
the preset data number. The [DATA] display will show the corresponding preset data value and the
parameter display [PARM] will indicate the parameter number (from 0 ~ 16). Use the [
 ] and [  ] keys
to change the preset data number [D-NO]. If the [D-NO] display is showing the number 73 of the pa-
rameter number 1, pressing the [
 ] key will change the [D-NO] display to the number 00 of the pa-
rameter number 2.
You can verify the fastening parameters by pressing the [

] and [

] keys at any time. However,
it is not possible to alter these settings in the (RUN state).
FASTENING METHOD AND STEPS
OR
PRESS
ROM VERSION
TOOL NUMBER (7 = NFT-801RM3)
AMPLIFIER VERSION
TORQUE UNIT (0 = Nm)
FREERUN SPEED SETTING
(_ _20 = CW TORQUE CONTROL 2 STEP)
