Chapter 7: System Operations

Page 7-22

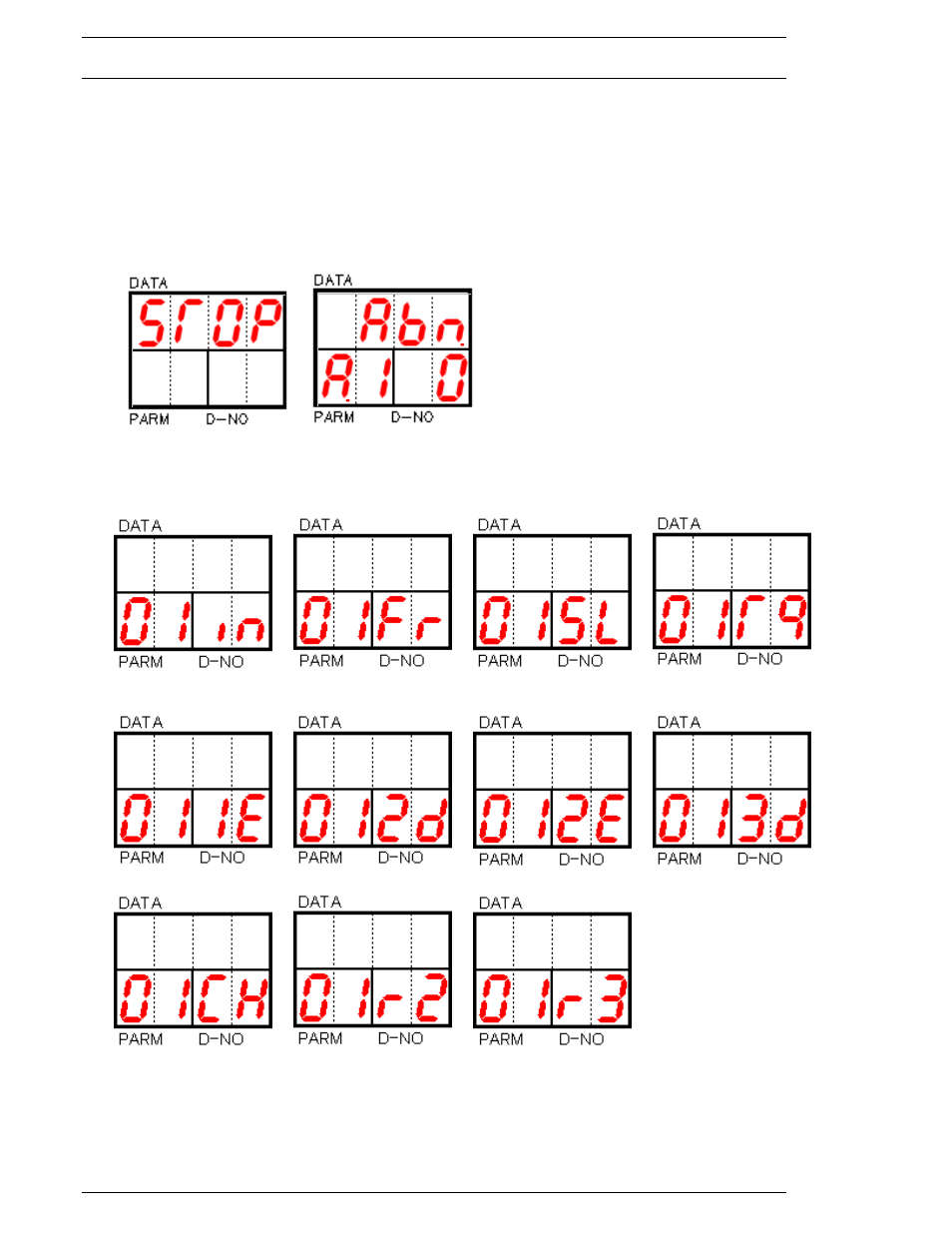

7.2.6 STATUS display

Two types of non-Fastening Results STATUS can be displayed, either STOP or ABNORMAL.

1) When the STOP signal is activated:
The DATA display will indicate when the STOP signal has halted the SAN Unit as shown in
the figure.

2) When an ABNORMAL condition occurs the [PARM] display will show a flashing "A" char-
acter followed by a number that represents the Abnormal number code. The [D-NO] displays
a number that represents the SERVICE CODE NUMBER or SUB Code. (Refer to chapter 9)

The following example values are displayed during Fastening operations using Parameter No. 1

■

During Initial

■

During Freerun

■

During Slowdown

■

During Torque

Speed

■ STEP 2

■ STEP 3 Stand by

■ STEP 3

Waiting

Fastening

Waiting

Fastening

■Offset Check

■

Reverse 2 Revolutions

■

Reverse 3 Revolutions

Normal manual reverse (Reverse 1) operation is not displayed.
