FEC AFC1500 Operations Manual Chapter 4: System Setup and Wiring (Rev. 6.1: 8/12)

Page 4-13

4.6

Power Requirements and Connections

4.6.1 SAN Unit

WARNING:

Follow Lockout/Tagout and other safety precautions when connecting

and/or disconnecting cabling, wiring, and equipment.

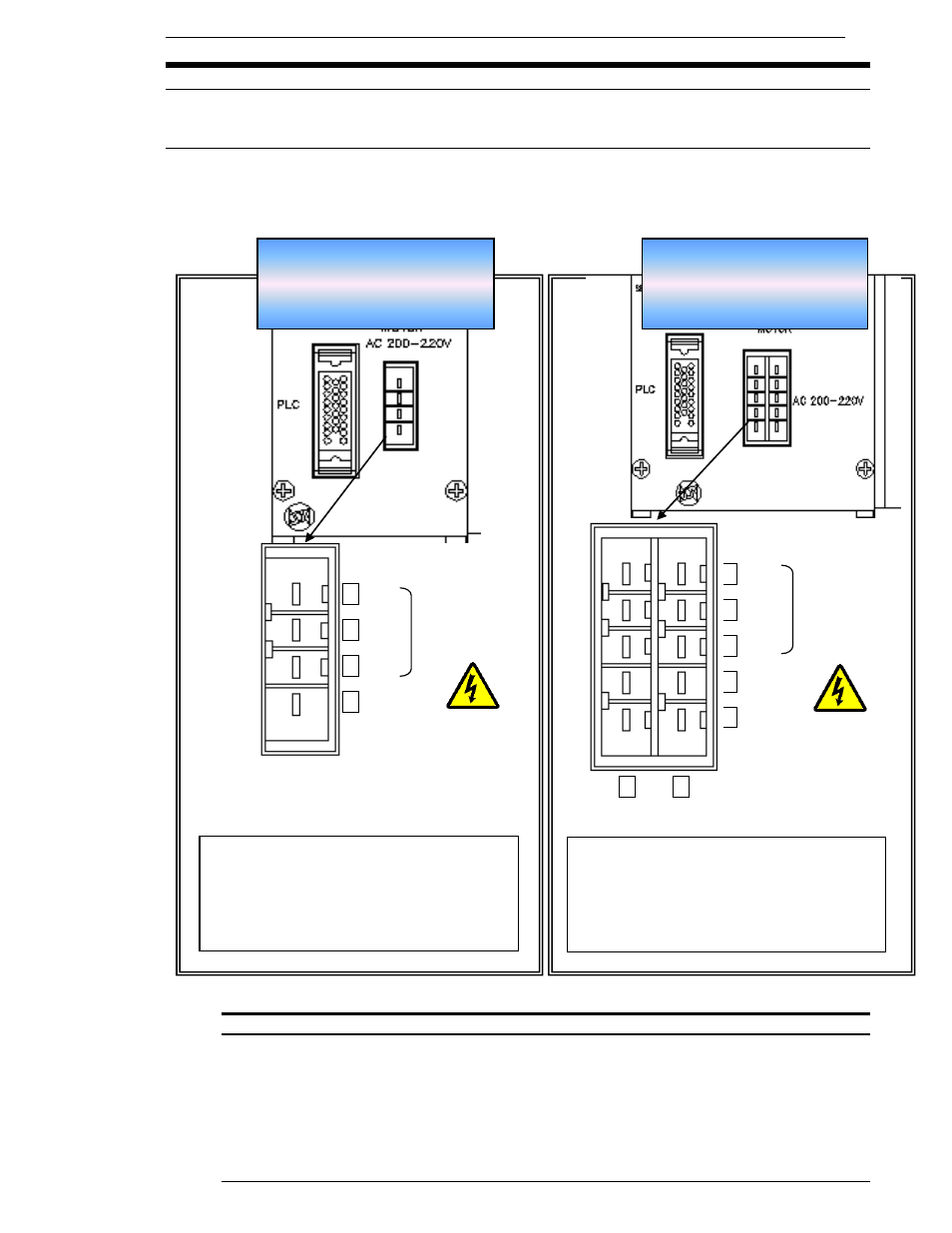

Fig. 4-6-1 SAN Unit Power Connector

４Ｕ

３Ｖ

２Ｗ

１ＦＧ

3 Phase AC
power

AC200～220V

*Always ground
the equipment.

５Ｕ

４Ｖ

３Ｗ

２ＮＣ

１ＦＧ

Ａ

Ｂ

3 Phase AC
power

AC200～220V

*Connect both A and B-line.

*Always ground
the equipment.

Manufacturer: AMP
Type: D3200S Receptacle Housing
Model No.: 1-178128-4 (Keying X)

Type:

Receptacle Contact

(Pressure bonding type)

Model No.: 1-175218-3

Manufacturer: AMP
Type: D3200M Receptacle Housing
Model No.: 1-917659-5 (Keying X)

Type:

Receptacle Contact

(Pressure bonding type)

Model No.: 1-917511-3

SAN3-120WM

SAN2-12M

SAN2-24M/SAN3-24M
SAN2-40M/SAN3-40M

SAN3-24H/SAN3-60H

SAN2-80M/SAN3-120TM
