The protocol of the network is –
Baud Rate 9600
Parity none
Stop Bits 1
RS485 Half Duplex
Mode RTU (binary mode)
For more details see Section 2.12 and Appendix 6.

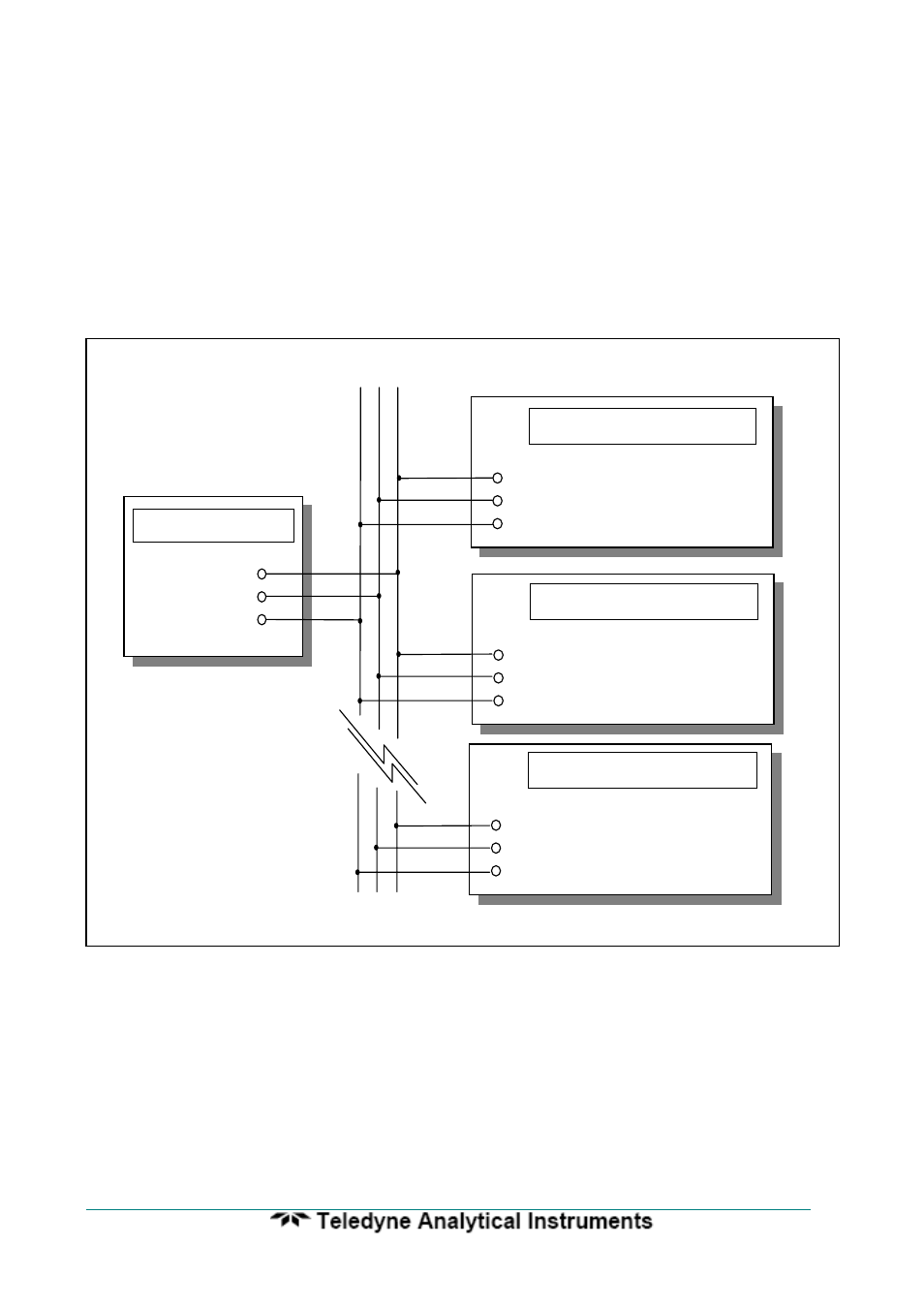

Network Connections
Network -
Network +
Network Com.
22 Network -
23 Network +
24 Network Com
Oxygen Transmitter #1
22 Network -
23 Network +
24 Network Com
Oxygen Transmitter #2
22 Network -
23 Network +
24 Network Com
Oxygen Transmitter 31
Network Master
