Teledyne 9060 - Zirconium oxide flue gas oxygen analyzer User Manual
Page 31
9060-Zirconia
Analyser
31
31
3.5 ELECTRICAL
CONNECTIONS
All wiring should comply with local electrical codes. The printed circuit boards are
fully floating above earth. All earth and shield connections should be connected to the
earth stud on the LHS inside the case. Before connection of mains power check that the
115 / 230 volt power selector switch is set to the correct voltage.

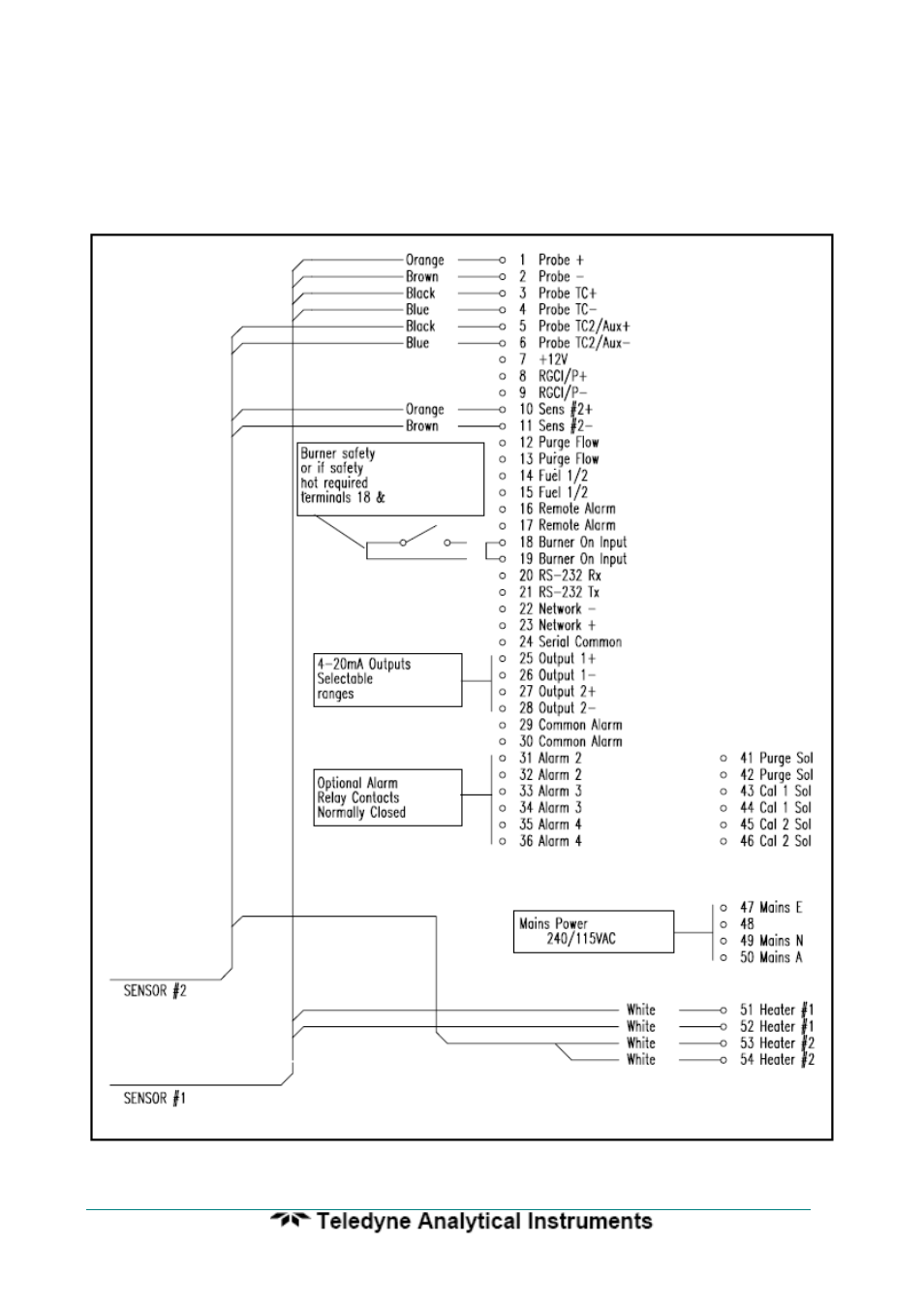

Connection Diagram for 9060 Analyser and one or two 1231 / 1234 Heated Sensors
