Roboocyte2 Manual
86

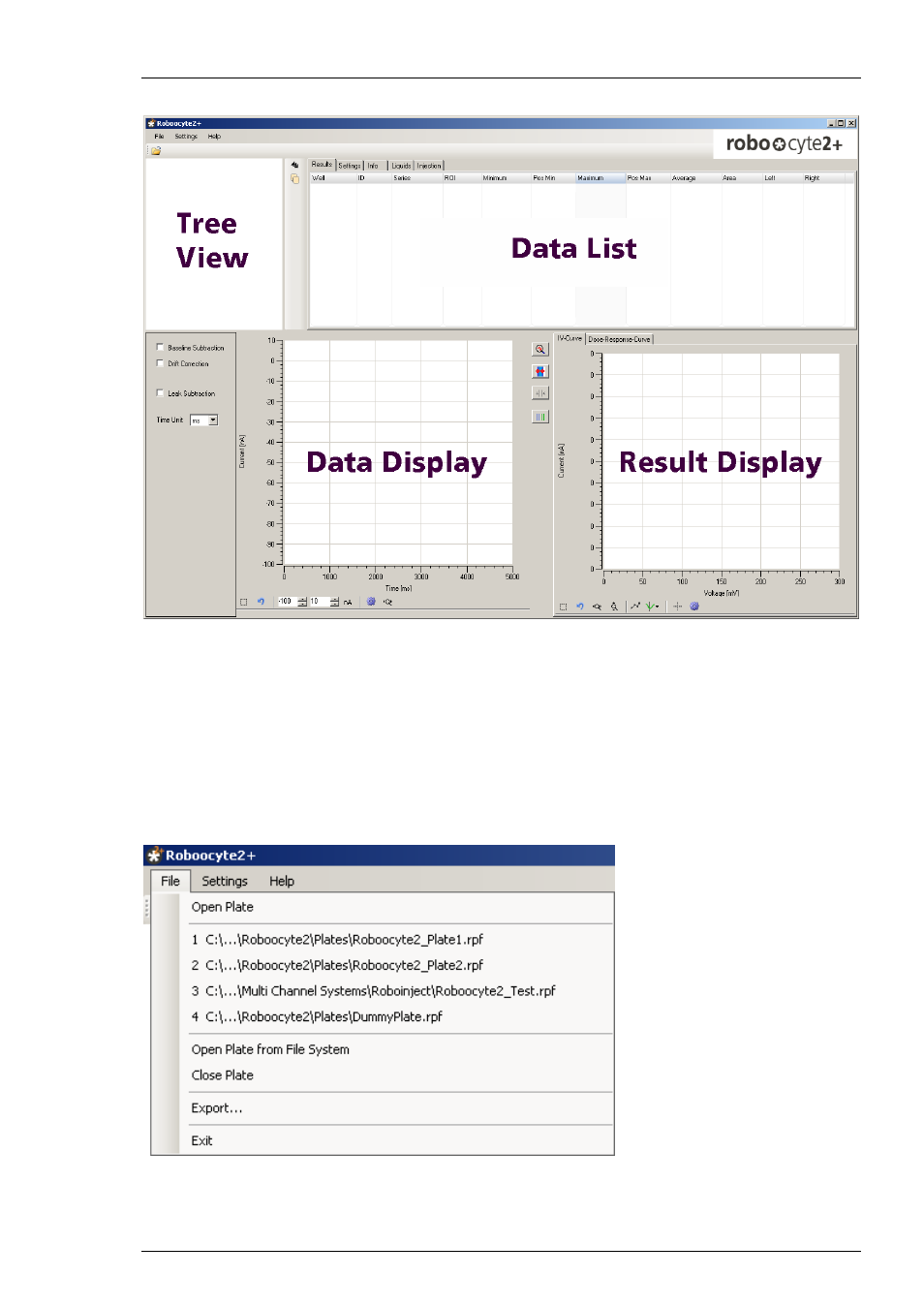

Roboocyte2+ Main Window
The main window of the Roboocyte2+ software is divided in an upper section with the "Tree
View" on the left side, displaying the data saved in the file to be analyzed, and the "Data List"
on the right side. In the lower left section the recorded data traces for the selected recordings
are displayed in the "Data Display". On the right side you can toggle in the "Result Display"
between the automatically generated "IV-Curve" or a "Dose-Response-Curve".
The main menu bar holds three options: "File", "Settings" and "Help".
Main menu "File"
