Attaching the Tubing of the Waste Pump
Connect the tubing to the provided connectors of the waste pump (PPRT2.29). The silicone tube
(ID 1.0 mm, OD 2.4 mm, length 540 mm) coming from the left side of the aspiration pump is
directly connected to the outlet of the measuring head of the Roboocyte2. Please guide this tube
also through the plastic tube holder to ensure the correct attachment. The PVC tube (ID 2.0 mm,
OD 4.0 mm, length 1 m) coming from the right side of the aspiration pump leads to the waste
bottle.
Attaching the Tubes to the Measuring Head of the Roboocyte2
Connect the tube section from the valve pump to the inlet connector of the measuring head of
the Roboocyte2. This is the upper one of both provided connections. Connect the suction tube
coming from the waste pump to the outlet of the measuring head which is the lower connection

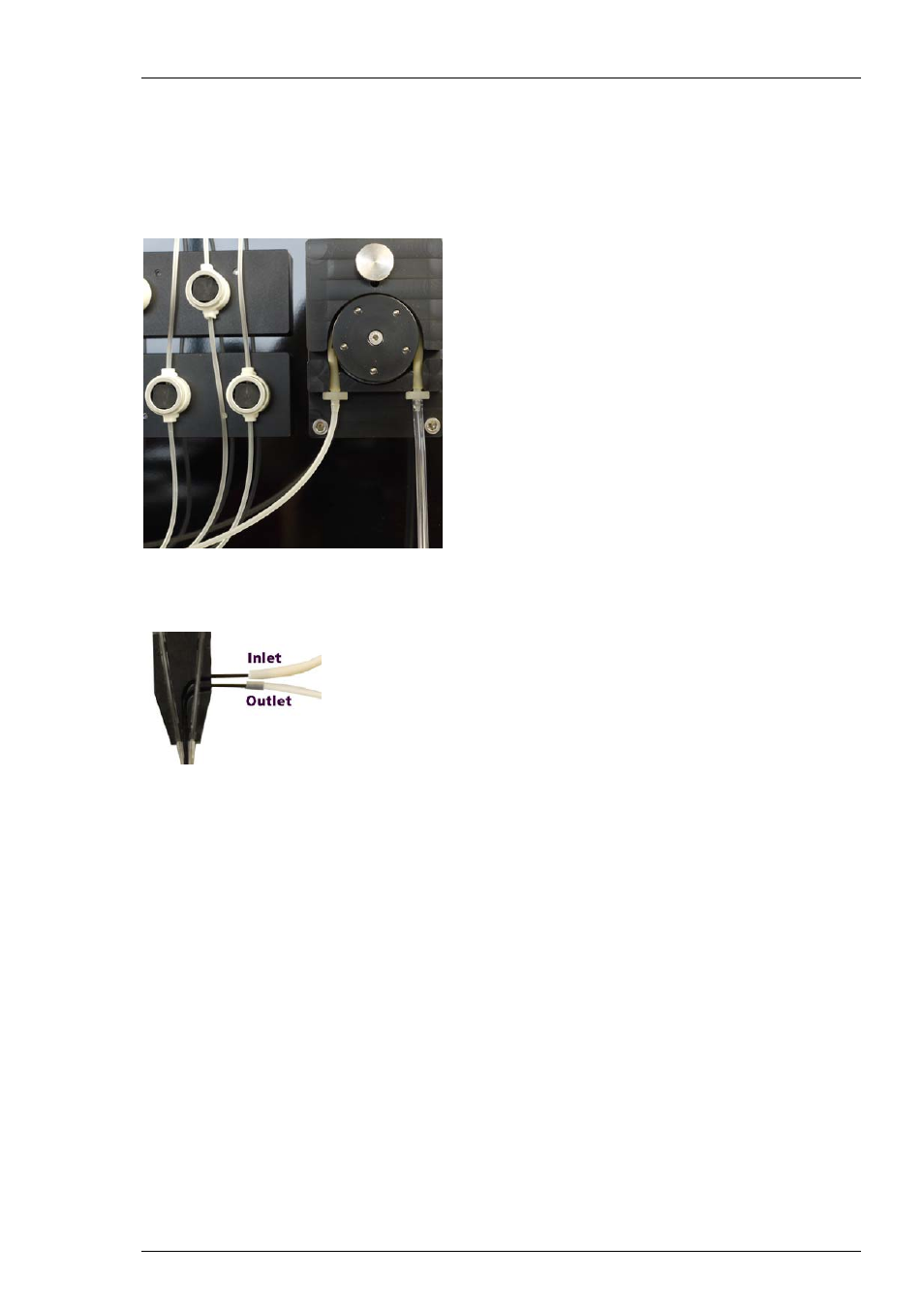

of the measuring head below the inlet. Please see the picture.
