Micro-PWC OPERATOR’S MANUAL
52 Logs
5.1.1 Accessing Log Print
Log Print is accessed by using the menus available from the System Window Menu button. Select Menu >
Print Log. The window shown in
Figure 5-1 will appear.
The available options (Process Summaries, Event Logs, and Spreadsheet Logs) are associated with radio
buttons located at the top of the Log Print window. By default, the Process Summaries log type is selected.
To change the type of log to be printed, click the radio button associated with the desired log type.
A list box appears below the Log Type buttons. The Log Name of each log configured (if any) for the
selected Log Type will appear in the list box. Use the scroll bars to view log names which extend beyond
the viewing area of the list box.
At the bottom of the window, in addition to the usual Close and Help buttons, is a button labelled Print,
used to print logs.

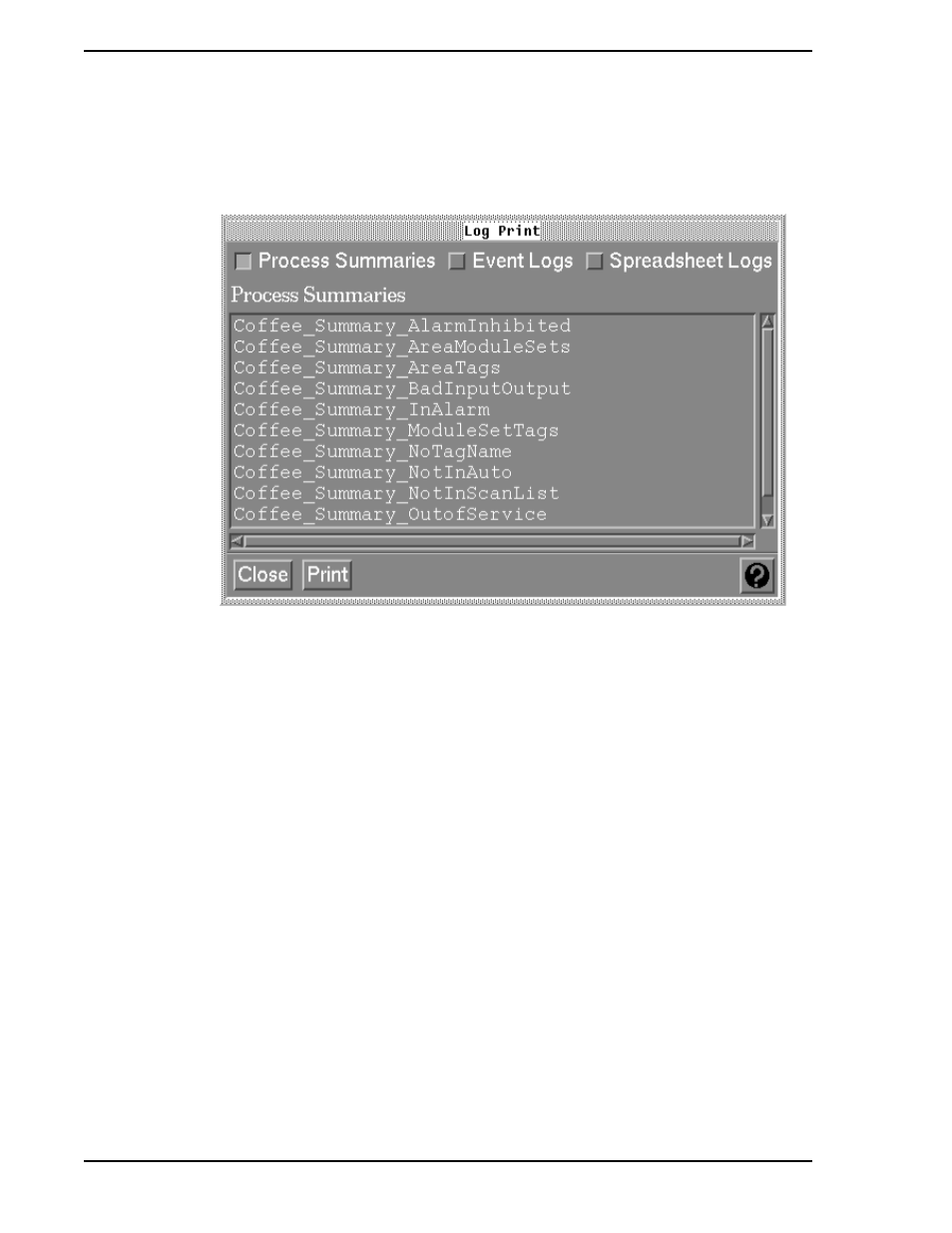

Figure 5-1. Log Print Window
