Micro-PWC OPERATOR’S MANUAL
Micro-PWC Features 31
3.4 System Status Display
The System Status Display (SSD), shown in Figure 3-5 , provides information about each node connected
to the network.
Each node on the network is depicted by a graphical representation known as an SSD object.
An SSD object is composed of a schematic illustration of the node above a button containing the name of
the node and information on the state of the node and its connections to the network. The appearance of
the SSD object varies, depending on the type and state of the node. Click the button to access a menu for
the node represented by the SSD object. Like the appearance of the SSD object, the entries on the menu
vary with the type of node represented.
Figure 3-6 is an example of the SSD object for a Micro-PWC. Figure 3-7 represents a Micro-PWC client,
which provides operator displays like the Micro-PWC, but does not perform network tasks, such as data-
base and graphics storage, and communication with other operator consoles.

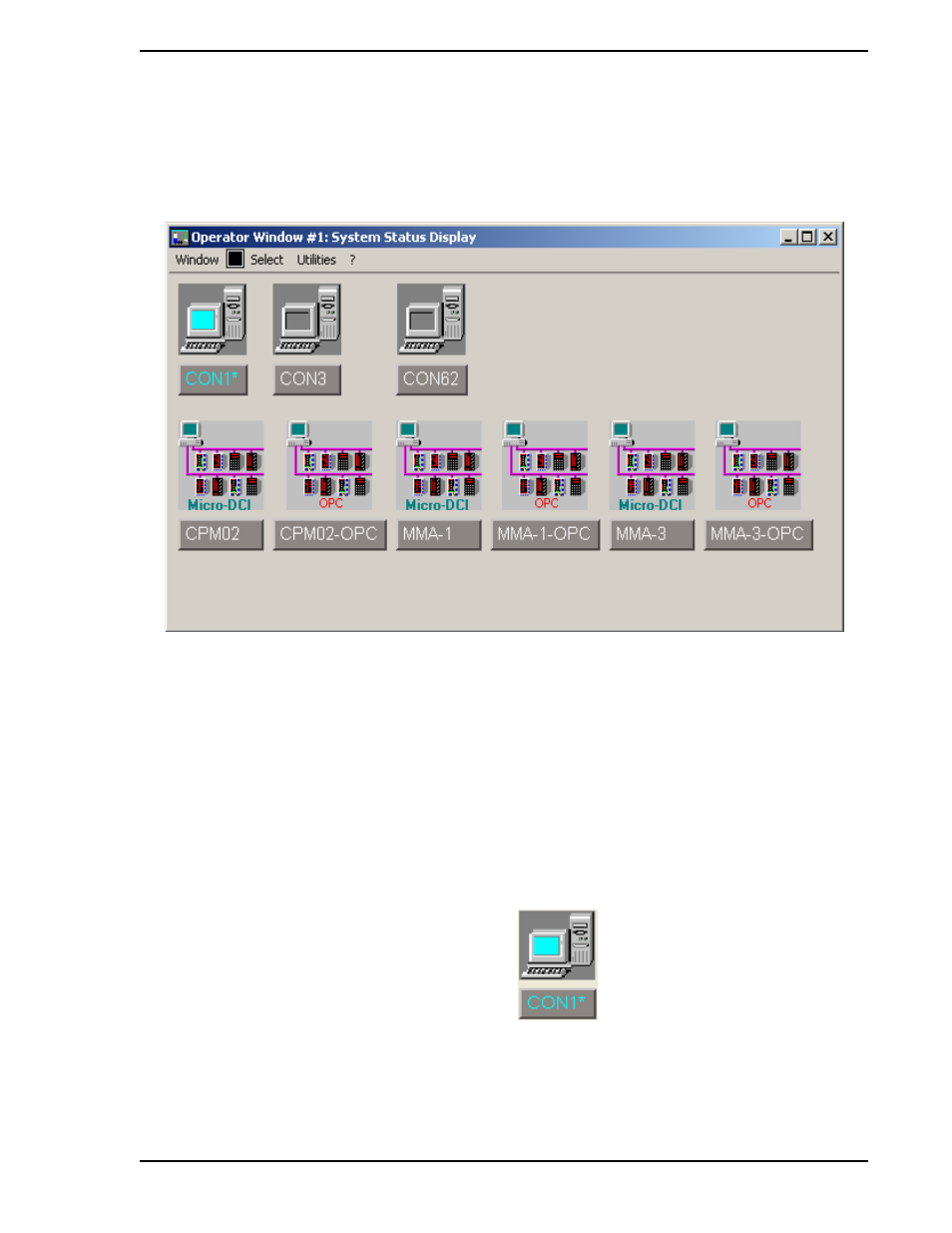

Figure 3-5. System Status Display
Figure 3-6. SSD Object for a Micro-PWC
