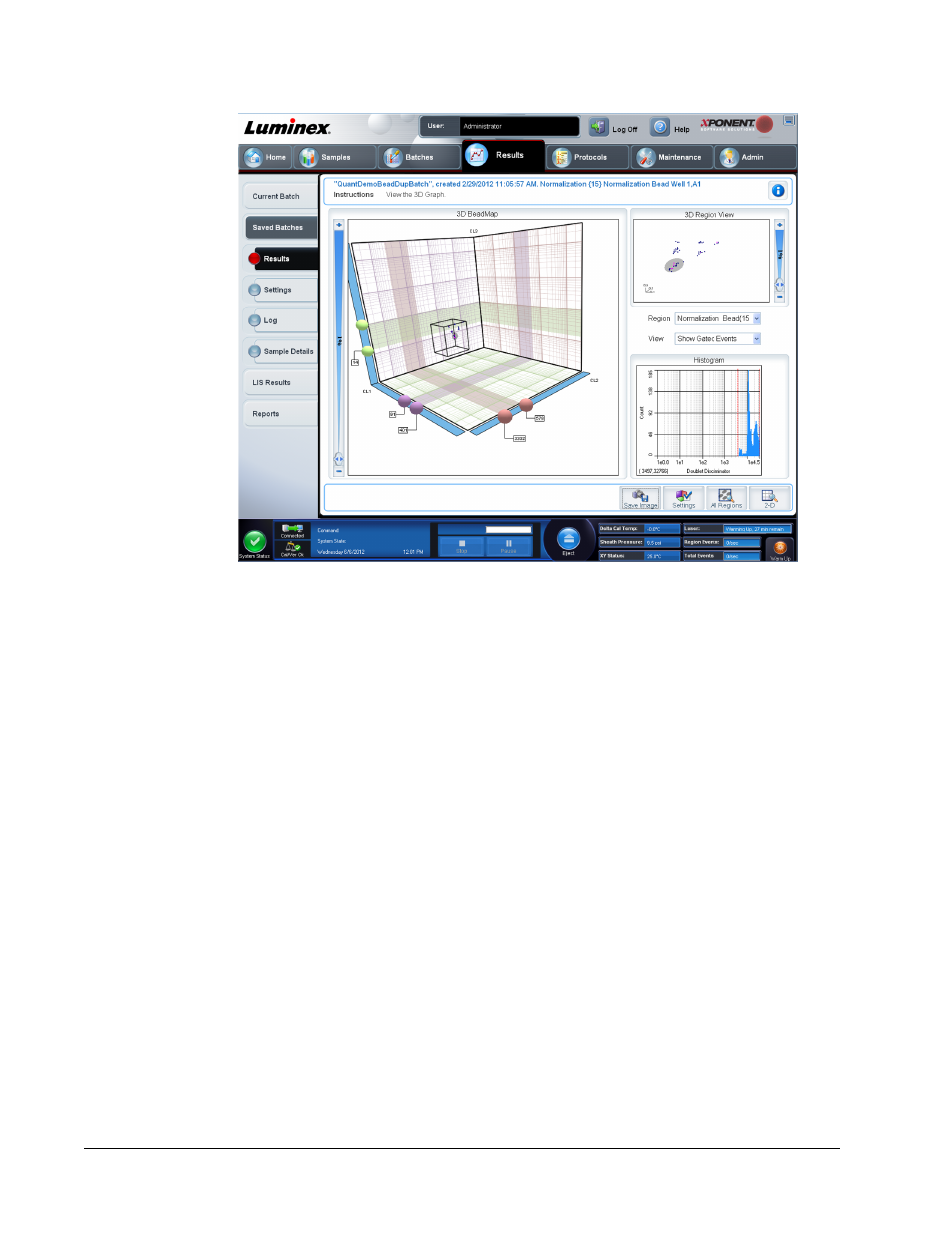

• 3D BeadMap - The main display is the 3D BeadMap. The display shows the CL1, CL2,
and CL3 axes. Left-click and drag your mouse to move the display for better viewing of a
particular section. Right-click anywhere in the display to select from the following viewing
options.
Select the Settings button at the bottom to display:
• Show Regions
• 3D
• CL1/CL3 Plane
• CL2/CL3 Plane
• CL1/CL2 Plane
• Show Beads
• 3D
• CL1/CL3 Plane
• CL2/CL3 Plane
• CL1/CL2 Plane
• View
• Show Cursors
• Show Region Labels
• Show 3D Region View Box
• Display Mode
• Logarithmic
