Luminex IS Version 2.3 (IVD) - Manual (Page 88)

Luminex IS Software Manual for Version 2.3- For In Vitro Diagnostic Use x MAP Technology
78
Batch Summary Report - prints batch information in a sample
versus test grid format; useful to quickly reference a test result for a
particular sample.
Calibration Trend Report - provides information about all
instrument calibration operations that occurred during the date range
entered by the operator.
System Control Trend Report - provides information about all
verification operations that were performed during the date range
entered by the operator.
Data Analysis Report - displays all the information available in the
Data Analysis window. You access this report through the Analysis
Window. For more information on printing this report, see page 80.
 To print a report from a batch or a specific time frame:
Install the printer before initiating the print command.
1. Click Print Report. The Report Selection dialog box opens.

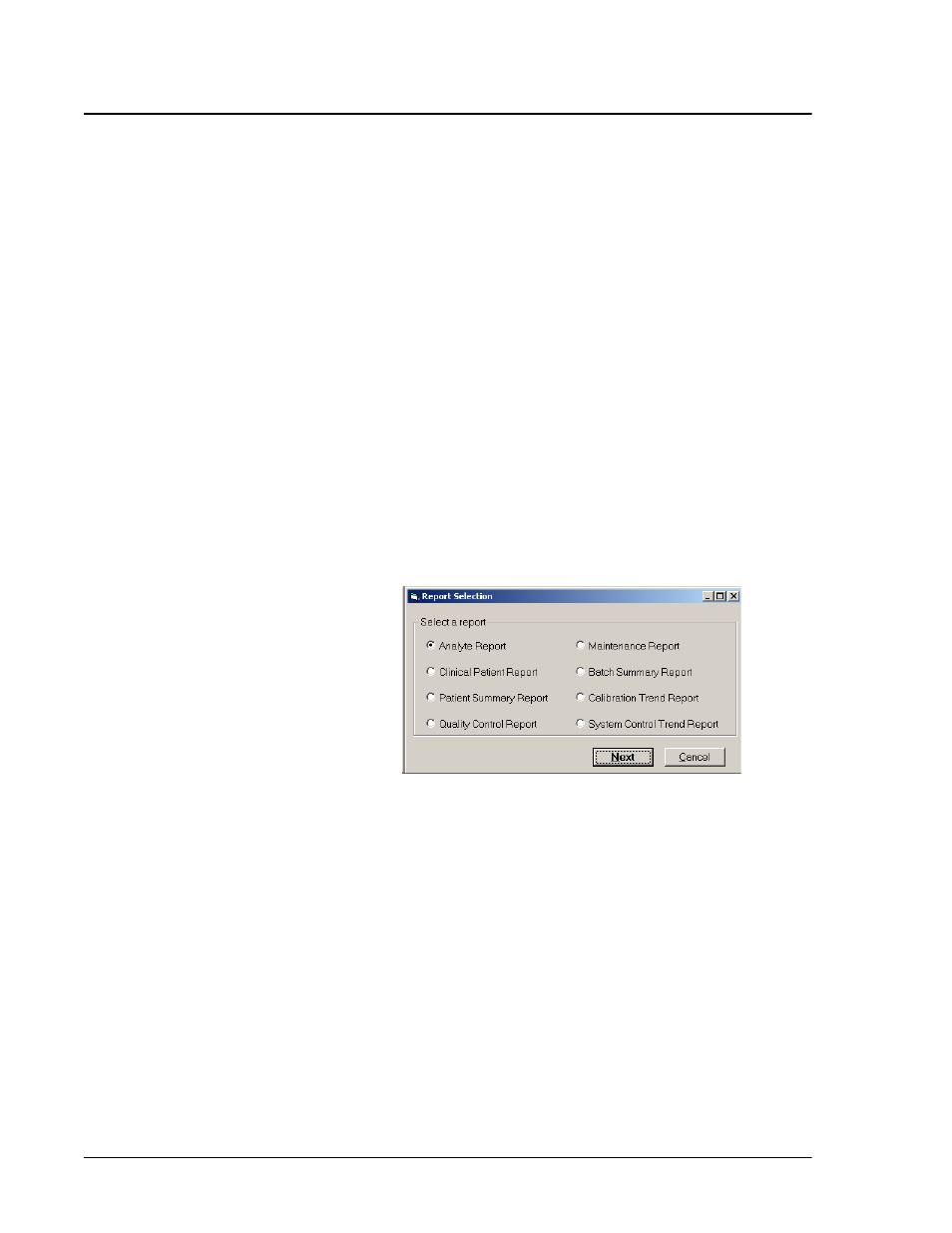

Figure 51 Report Selection Dialog Box
2. Select the type of report that you want to print and click Next.
For the Analyte, Clinical Patient, and Batch Summary Reports,
the Batch Selection dialog box opens. Select the batch to print.
See Figure 52. For the Quality Control, Maintenance, Calibration
Trend, and System Control Trend Reports, a dialog box related to
the specific report opens. The system information may vary
depending on the type of report you select.
