MAP Technology
4
Toolbar
The shortcut buttons on the toolbar can be found in other locations in
the software. The Help button opens the online help. The Single Step
option on the toolbar allows you to pause the system in between each
command or sample acquisition within a batch.

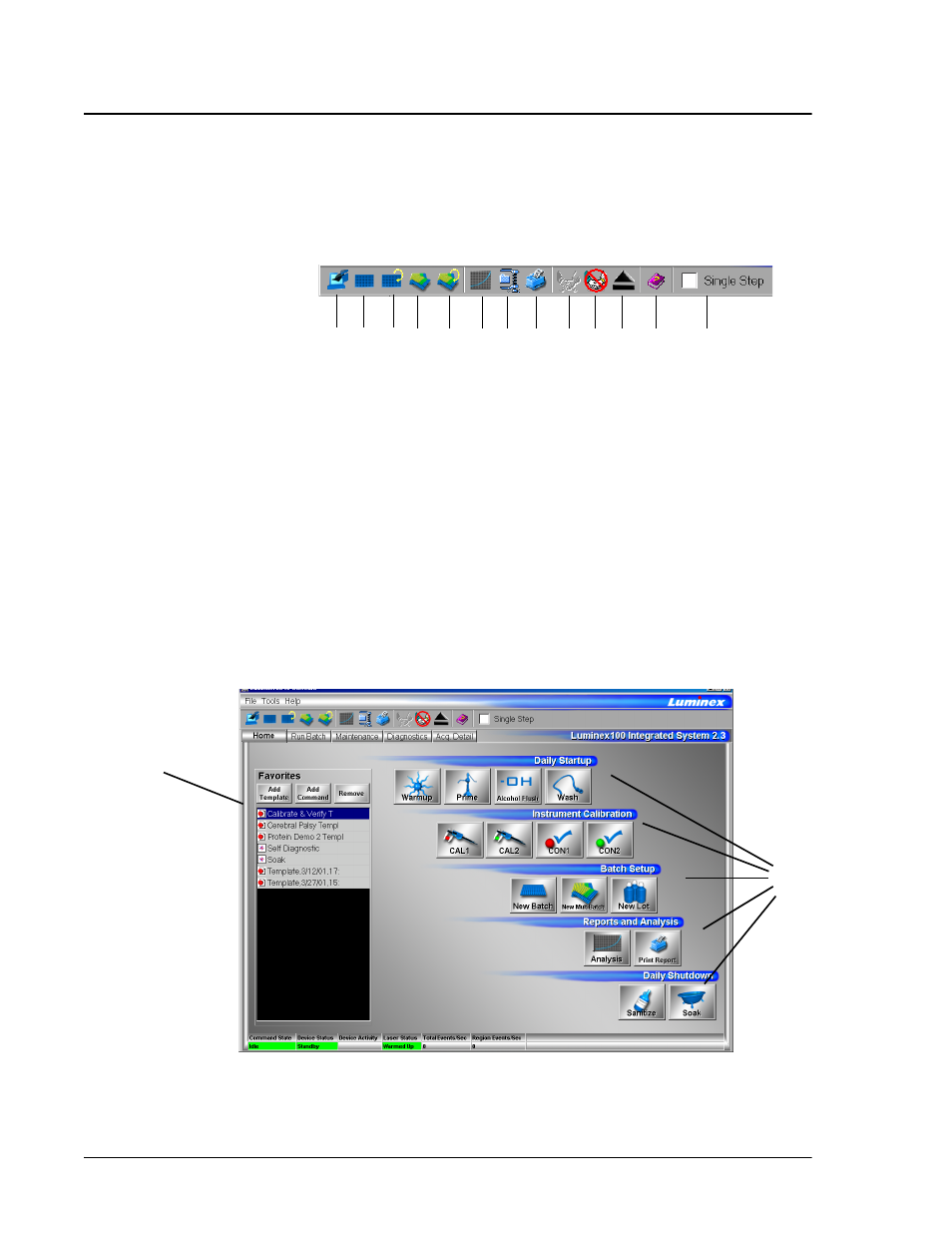

Figure 2 Luminex IS 2.3 Toolbar
Tabs
This section describes the tabs in the Main window.
Home tab
This is the default tab. It is organized by the order of system use. It
contains a Favorites list and five button groups representing data
acquisition and maintenance categories.
Figure 3 Home Tab
12
11
10
9
8
7
6
5
4
3
2
1
13
1. Import Template
8. Print Report
2. New Batch
9. Connect to the Instrument
3. Open Batch
10. Disconnect from the Instrument
4. Create New Multi-Batch
11. Eject/Retract
5. Open Multi-Batch
12. Open Help File
6. Start Analysis
13. Single Step
7. Export Batch Data
1
2
1. Favorites List
2. Button Groups
