Luminex IS Version 2.3 (IVD) - Manual (Page 23)

x MAP Technology Luminex 2.3 Software
PN 89-00002-00-254 Rev. B 13

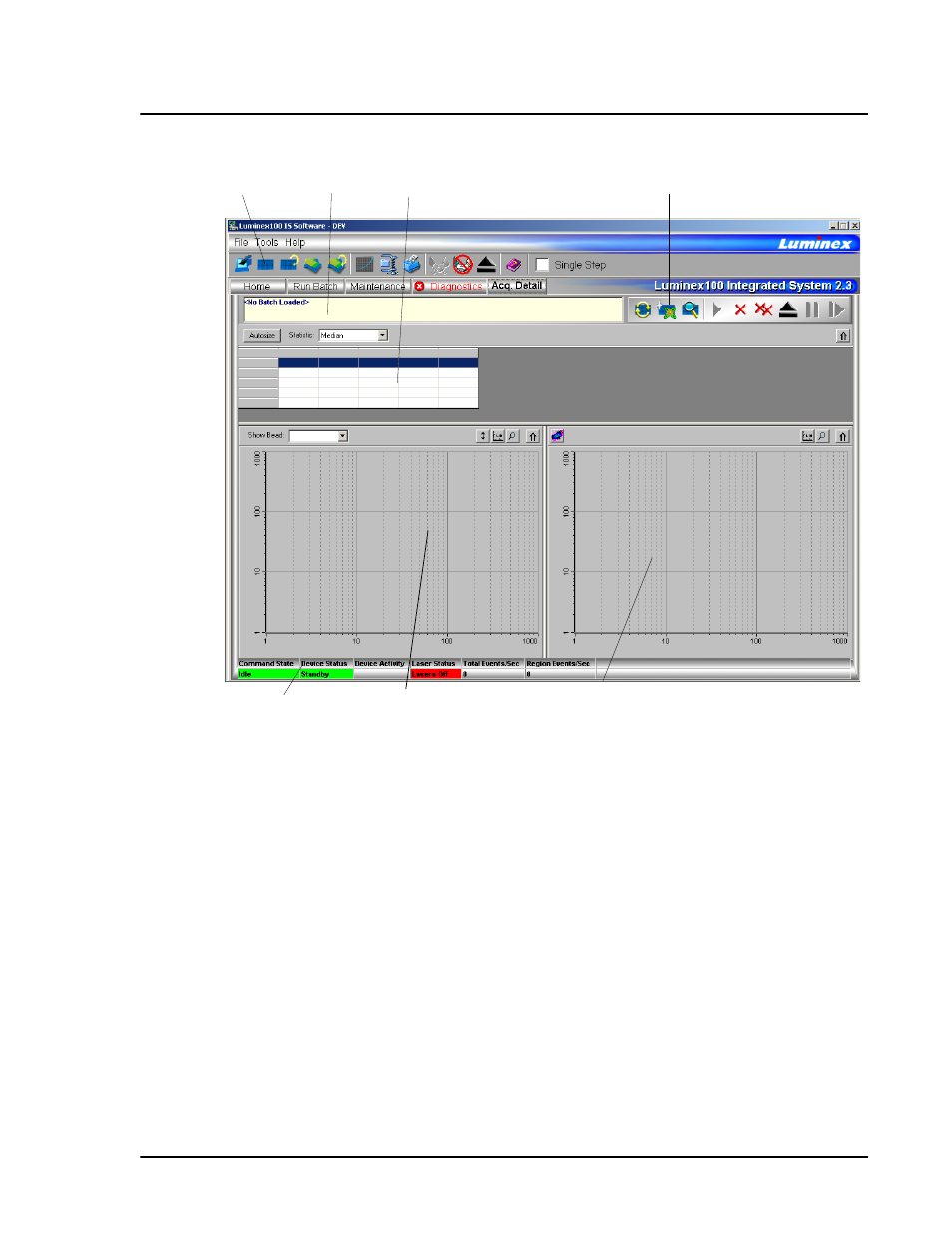

Figure 11 Acquisition Detail Tab
The Batch Name and Description section displays the name of the
batch as well as its description.
The Batch Data area displays sample results. The left column shows
plate location and Sample ID description. The remaining columns
display selected bead sets for the assay. Each row represents the data
for each bead set from one well.
The Acquisition Detail Toolbar shown in Figure 12 provides
functions to acquire raw data without using templates. For more
information about the commands on the Acquisition Detail Toolbar,
see the Command section, beginning on page 29.
1
2 3 4
5
7
6
1. Luminex IS 2.3 Toolbar 5. Status Bar
2. Batch Name and Description 6 Histogram
3. Batch Data Area 7 Dot Plot
4. Acquisition Detail Toolbar
