Procedure – Apple Xserve G5 User Manual
Page 71
Xserve G5 Take Apart - 69
Logic Board
Procedure

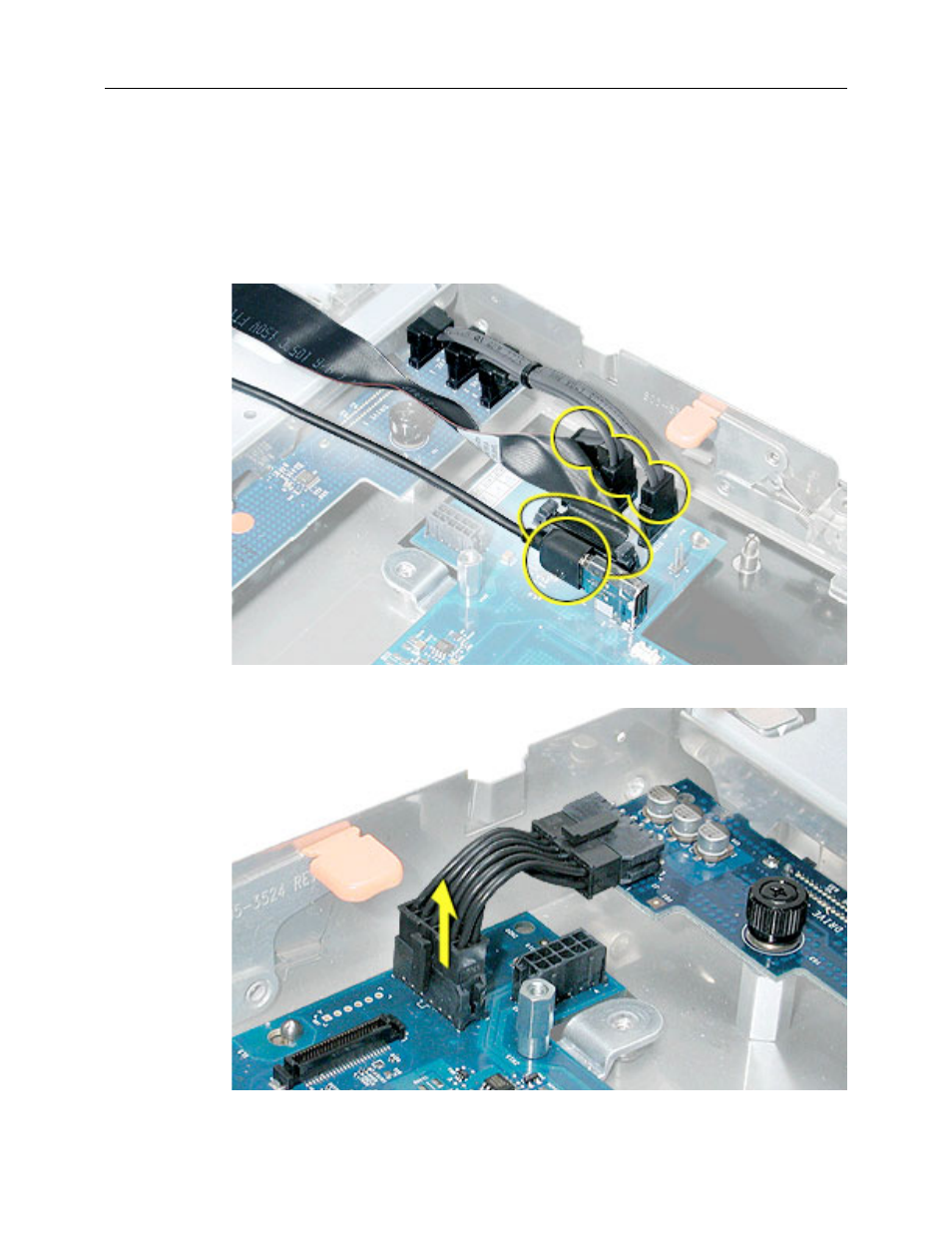

1. Disconnect the FireWire cable from the logic board
2. Release the two locking levers on the front panel board cable connector and
disconnect the cable from the logic board.
3. Disconnect the three-headed drive cable from the logic board.
4. Release the locking tab and disconnect the power cable from the logic board.
5. Fold the cables out of the way toward the front of the server.
