Page 16: Part location
14 -
Xserve G5 Take Apart
RAID Card
RAID Card
Tools
No tools are required for this procedure. You may, however, find a Phillips screwdriver
useful in releasing the thumbscrew in step 1 below.
Preliminary Steps
Before you begin, open the server and place the bottom housing on a sturdy, flat surface.

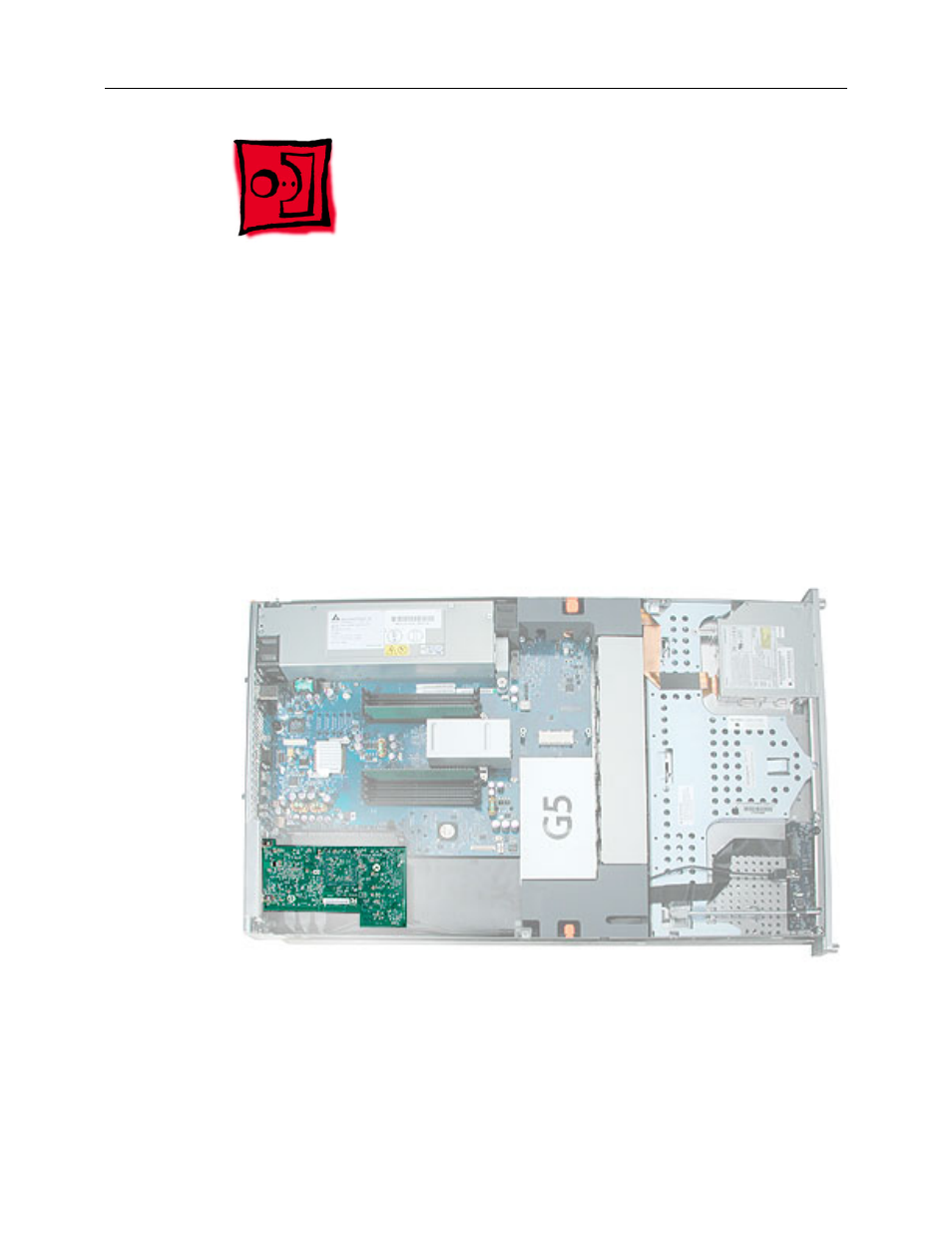

Part Location
