Xserve G5 Take Apart - 45 Light Pipe
Procedure

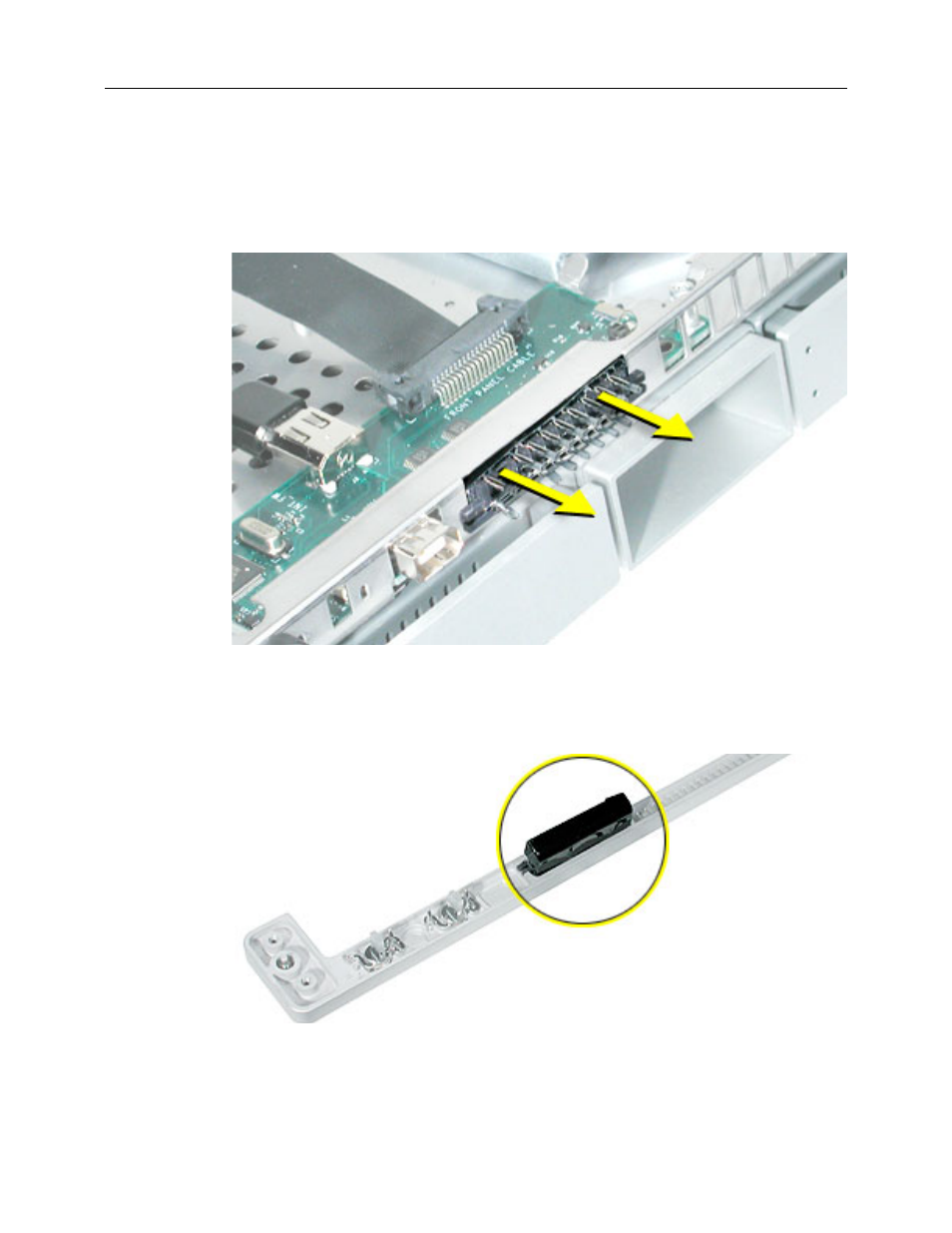

1. Ease first one side and then the other side of the light pipe assembly from its opening
in the front of the enclosure.
2. Remove the light pipe assembly from the server.
Replacement Procedure
1. Position the light pipes in the replacement light pipe assembly into the double row of
light pipe holes in the front bezel.
2. Replace the front bezel on the server, matching ports/projections with openings.
3. Replace the screw that secures the top of the bezel to the server.
4. Replace the two bezel brackets and their mounting screws.
