Xserve G5 Take Apart - 47
Front Panel Board
Procedure

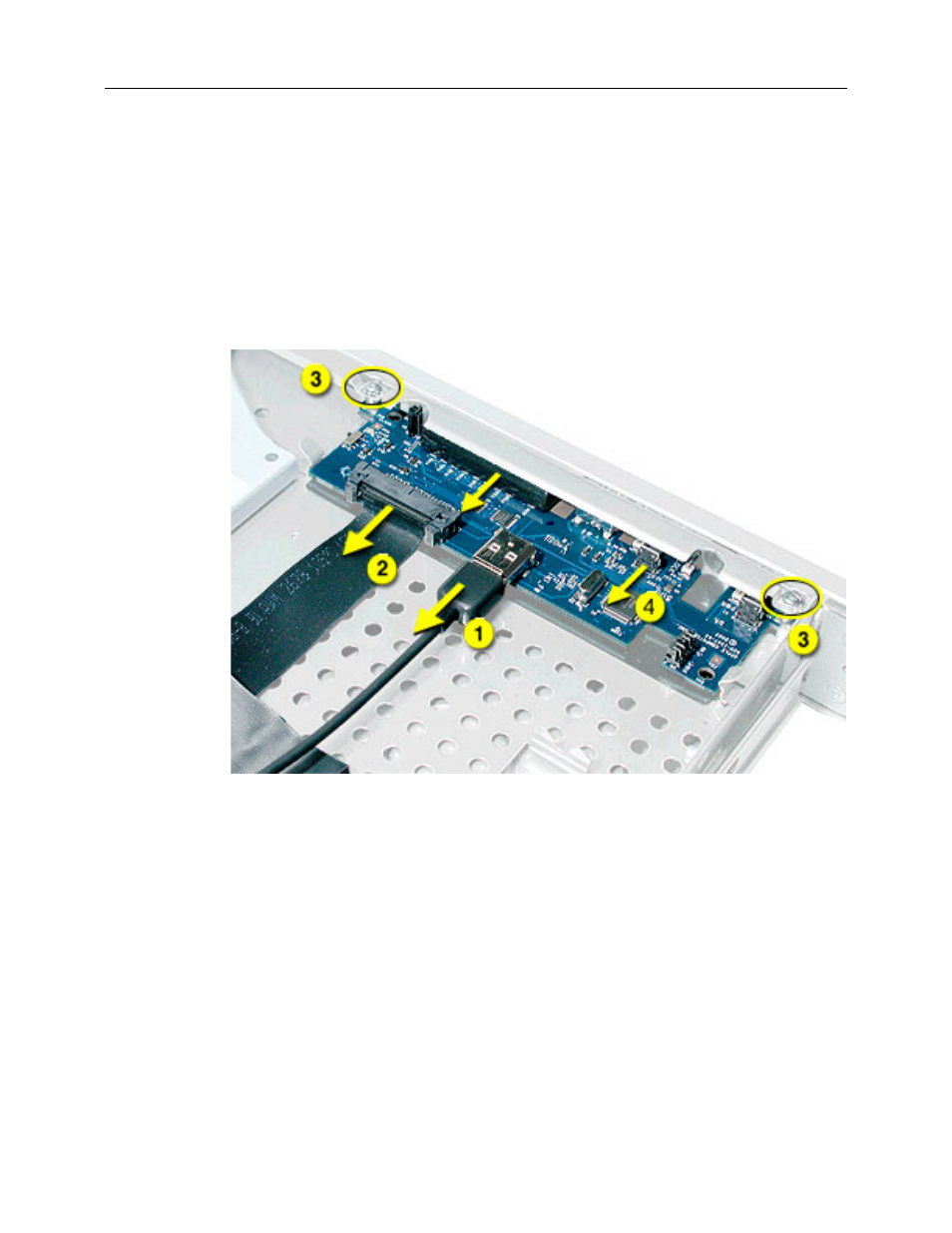

1. Disconnect the FireWire cable from the front panel board.
2. Release the two locking levers on the front panel board cable connector and
disconnect the cable from the front panel board.
3. Remove the two screws that mount the front panel board to the chassis.
4. Slide the board back slightly and release the two clips on either side of it.
5. Tilt the board up and remove it from the server.
Important: When replacing the front panel board, make sure the board slides under the
black plastic cover of the light pipe.
