Apple Xserve G5 User Manual
Page 18
16 -
Xserve G5 Take Apart
RAID Card
3. Turn the card over and disconnect the three RAID card cables.
Replacement Note:
Before installing the RAID card in the PCI riser, do the following:
1) Plug the backup battery cable into the connector on the card. 2) Connect the three

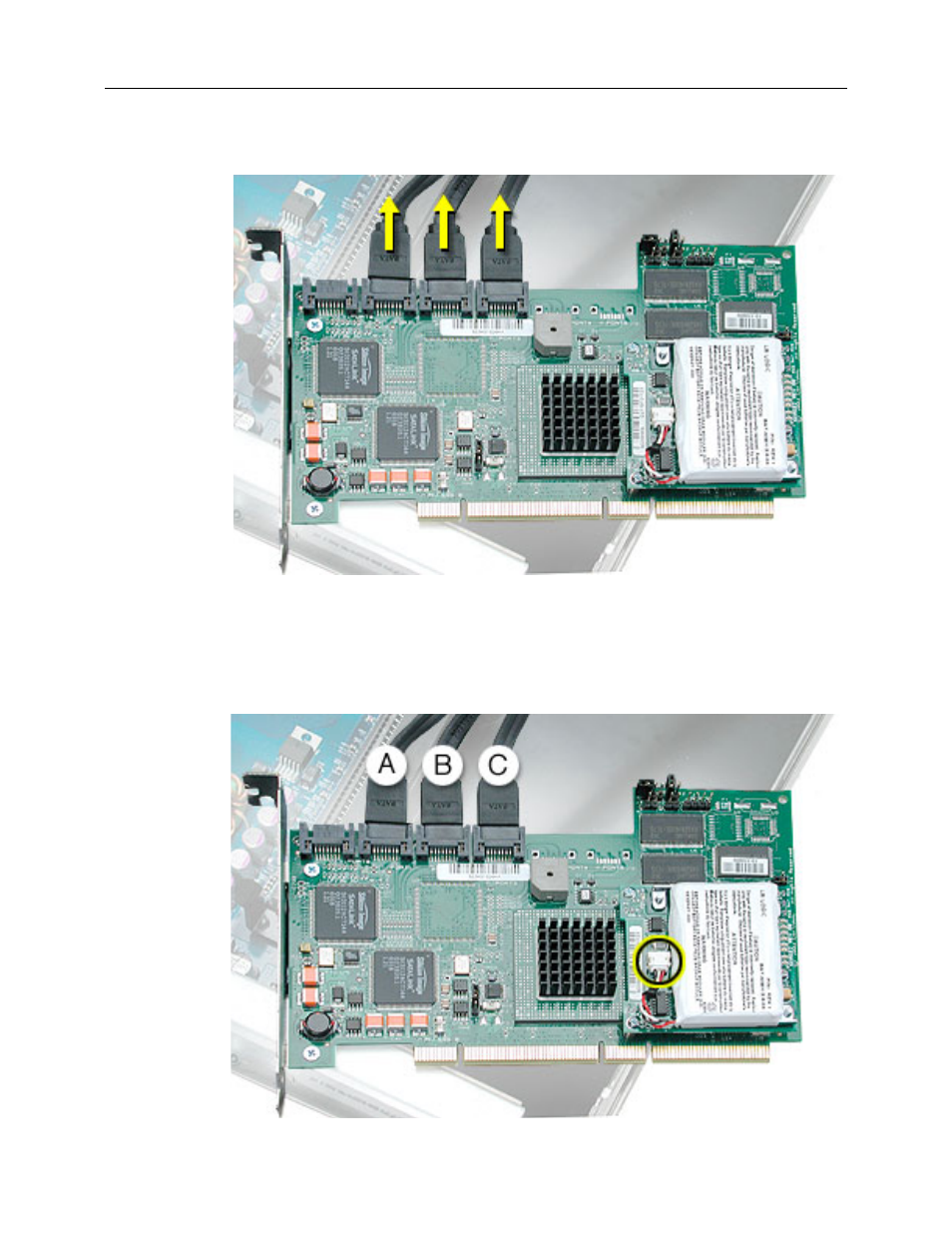

RAID card cables as illustrated below. Connect the bottom cable to connector A on the
card, the middle cable to connector B, and the top cable to connector C.
