Page 32
30 -
Xserve G5 Take Apart
Optical Drive Cable, Xserve G5
Procedure
Warning:
The optical drive cable is attached to the enclosure with adhesive on the
underside of the cable.

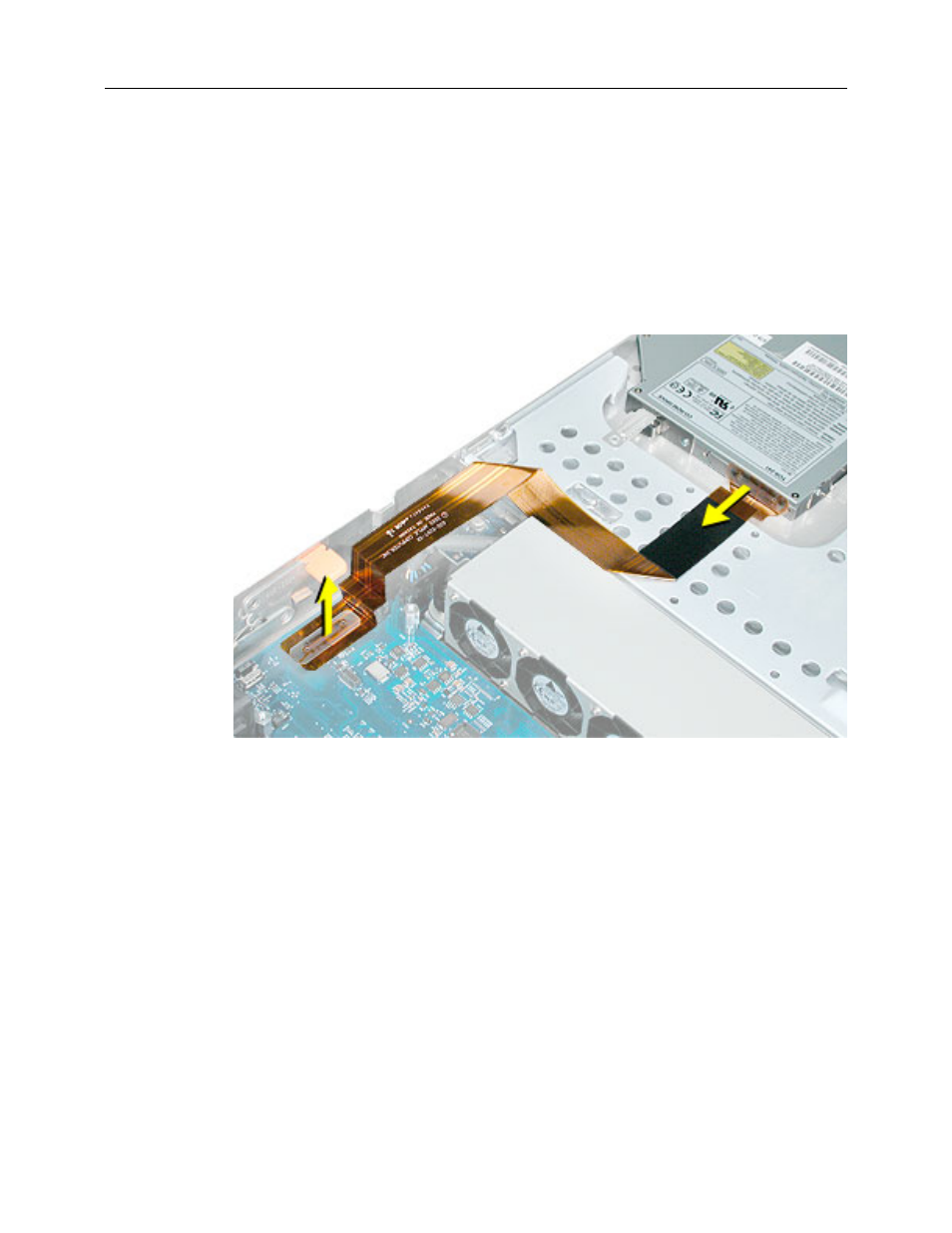

1. Carefully pry the cable’s adhesive from the enclosure.
2. Disconnect the optical drive cable from the optical drive.
3. Disconnect the cable from the logic board and remove the cable from the server.
