Series 6A Operation & Maintenance – field Connections
6A O & M : 10
Natural Gas as an Actuator Medium
The S6A can also be operated with natural gas as an actuator
medium. When operating the positioner with natural gas, you
must follow and adhere to the following safety notes:
1. Only the “EEx ia” version of the positioner and optional
modules with the “EEx ia” type of protection may be operated
with natural gas. Positioners with other types of protection,
i.e. flameproof enclosures for zones 1 and 2 are not permitted.
2. Do not operate the positioner with natural gas in closed spaces.
3. Natural gas is continuously blown off in the servo-drive
depending on the model. Special care must therefore be taken
during maintenance activities near the positioner. Always
ensure that the immediate surroundings of the positioner are
adequately ventilated.
4. The mechanical limit switch module may not be used when
operating the positioner with natural gas.
5. Depressurize the devices operated with natural gas adequately
during maintenance activities. Open the cover in an explosion-
free atmosphere and depressurize the device for at least two
minutes.
Normally you operate the positioner with compressed air. Natural
gas has been approved as an actuator medium for intrinsically
safe positioners with the “EEx ia” type of protection. Only use
natural gas which is clean, dry and free from additives.
The positioner releases the used natural gas through the exhaust
air outlet E (see Figure 2). The exhaust air outlet E is equipped
with an attenuator. As an alternative to this standard configuration,
the exhaust air outlet can be replaced with a G¼ screwed fitting.
You have to dismantle the attenuator for this purpose. Natural gas
escapes parallel to the exhaust air outlet E, from the enclosure
vent at the bottom side of the device, and from the control air
outlet near the pneumatic connections. This escaping natural gas
cannot be collected and carried off. When using natural gas as an
actuator medium refer to Figure 5 for maximum bleed off values.
6A-6DR5*1*-
*E***
6A-6DR5*2*-
*E***
Single-acting Double-acting
Bleeding process Operating
mode
[Nl/min] [Nl/min]
Operation,
typical
0.14 0.14
Operation,
max.
0.60 0.60
Bleed the enclosure volume through the bottom
side of the device. Purge air switch is at "IN":
Error case,
max.
60.0 60,0
Operation,
typical
1.0 2.0
Operation,
max.
8.9 9.9
Bleed through the control air outlet near the
pneumatic connections:
Error case,
max.
66.2 91.0
Operation,
max.
Bleed through the exhaust air outlet E
Error case,
max.
358.2 1) 339 1),
3 2 . 1 6 2 . 1 ] l[ . x a M e m u l o V
Figure 5 Maximim bleed off values

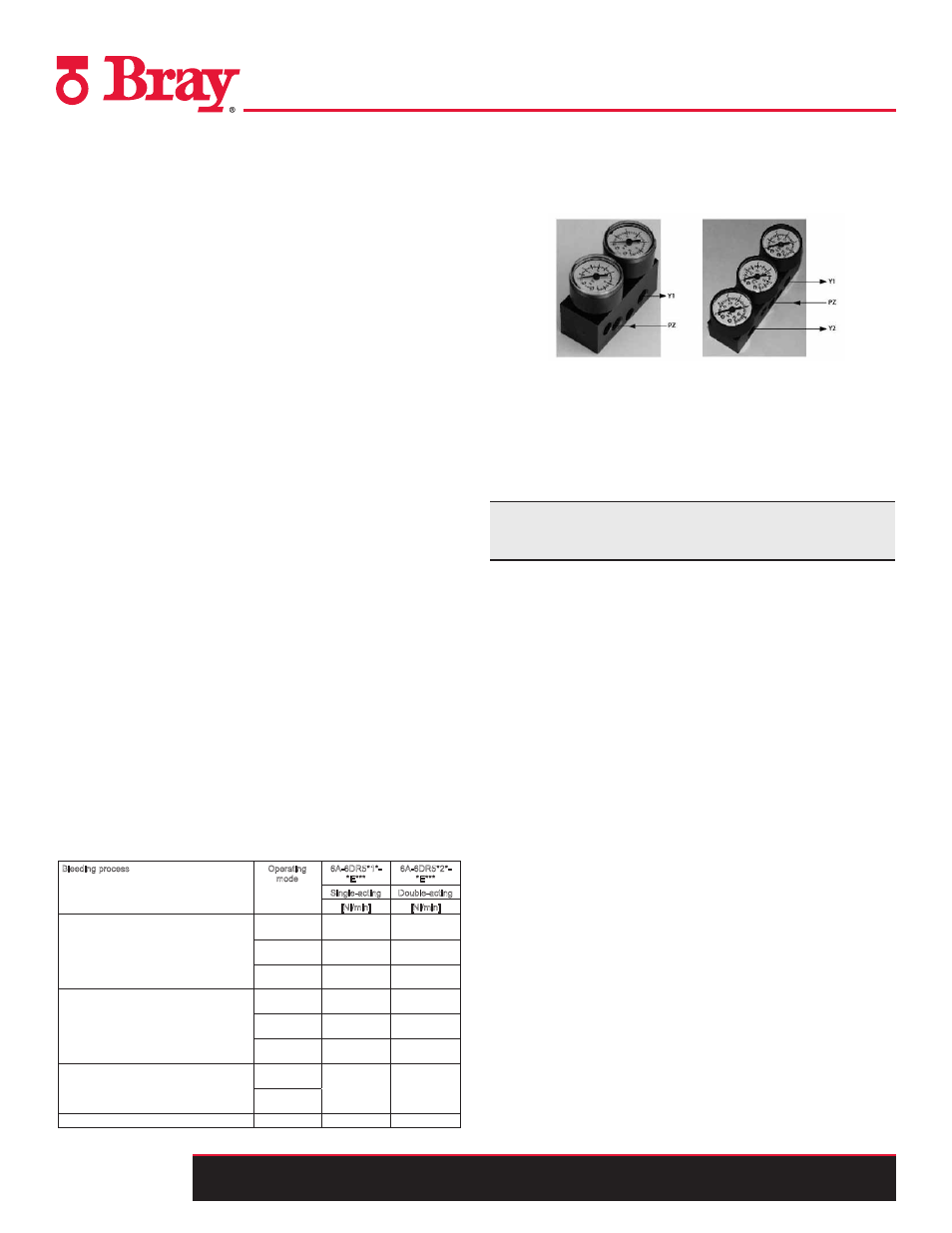

Optional Accessories
1. Pressure Gauges – used to measure and indicate supply and
actuating pressures
2. Filter – used to clean the supply medium
3. Non Contacting/external Position Detection System – used
for harsh environments
4. SIMAtIC PDM operation Software – used for online
diagnostics of the S6A
Contact your Bray representative for specific requirements for
your intended application.
