Ls500 control screen – Franklin Fueling Systems LS500 Auto Learn Line Leak Detection Installation & Users Guide User Manual
Page 15
15

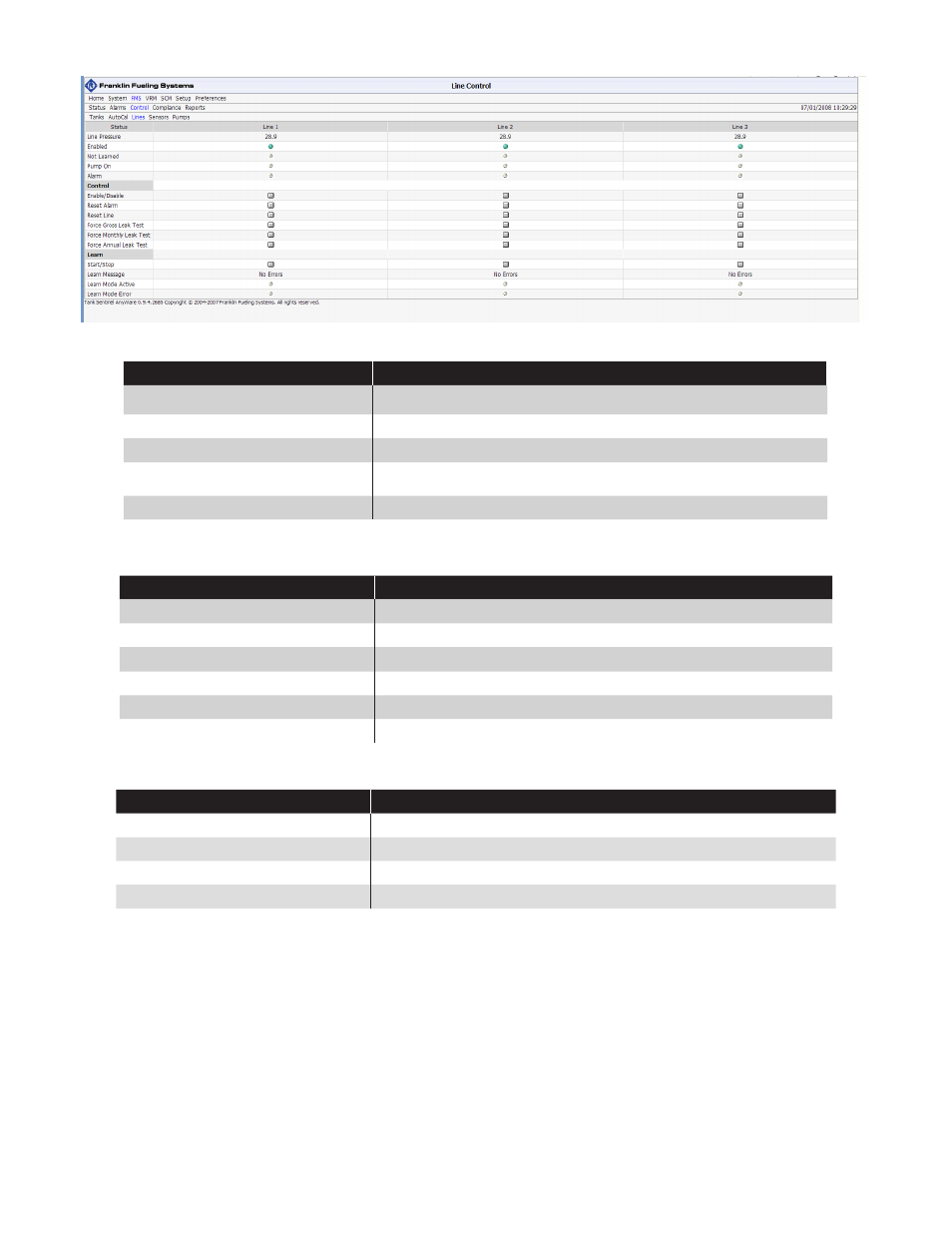

LS500 Control Screen
Status Section
Indicator
Description
Line Pressure
Indicates the current line pressure
Enabled
Green, enabled. Red, disabled
Not Learned
Red, if not learned. Gray, if learned
Pump On
Green, if the STP is on
Alarm
Red, if in alarm. Gray, if not in alarm
Control Section
Indicator
Description
Enable/Disable
Manually enable or disable the line
Reset Alarm
Manually reset an alarm on the line
Reset Line
Manually reset line
Force Gross Leak Test
Manually start a gross leak test
Force Monthly Leak Test
Manually start a monthly leak test
Force an Annual Leak Test
Manually start an annual leak test
Learn Section
Indicator
Description
Start/Stop
Manually start or stop the learn cycle
Learn Message
Indicates the status of the learn process
Learn Mode Active
Green: The line is being learned
Learn Mode Error
Red: An error has been detected in learning the line
