14
Line Status and Control Screens
The status of each line channel can be viewed at any time by navigating to the Line Status or Control screens. To get to
the Line Status or Control screens, go to FMS > Status > Lines or FMS > Control > Lines.

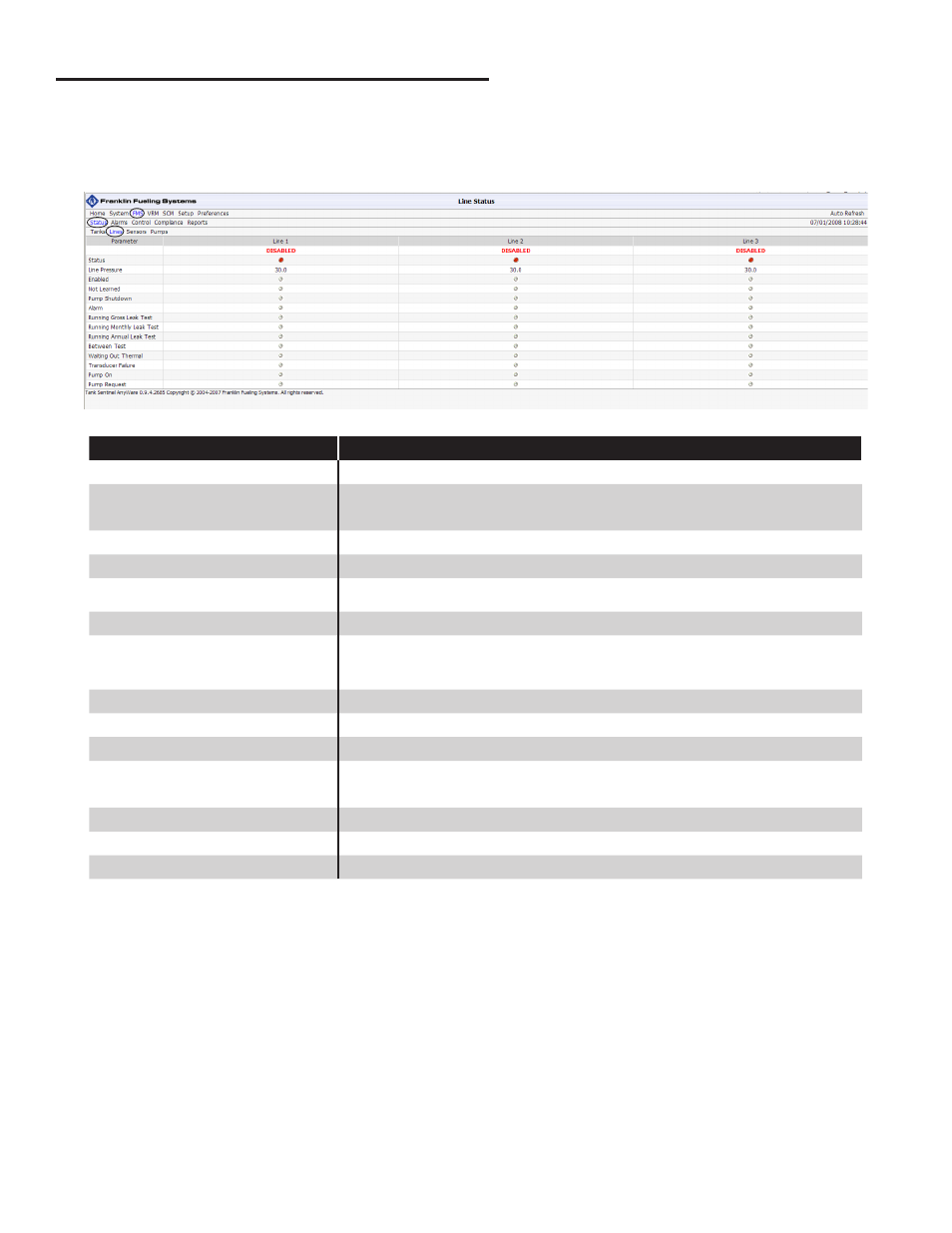

LS500 Status Screen
The status of each line can be viewed at any time by navigating to the line status or control screens.
Status and alarm Indicators Description
Status Indicates the condition of the line
Line Pressure Indicates the current line pressure
Enabled Green, enabled. Red, disabled
Not Learned Red, if not learned. Gray, if learned
Pump Shutdown Red, if pump is shutdown. Gray, if not shutdown
Alarm Red, if in alarm. Gray, if not in alarm
Running Gross Leak Test Green, if running test. Gray, if not running test
Running Monthly Leak Test Green, if running test. Gray, if not running test
Running Annual Leak Test Green, if running test. Gray, if not running test
Between Test Green, if running test. Gray, if not running test
Waiting out Thermal Green, if waiting out thermal, Gray, if not
Transducer Failure Red, if the LS-500 is not communicating with the transducer
Pump On Green, if the STP is on
Pump Request The LS-500 is attempting to turn the STP on
When viewing the Line Status Summary screen, remember to enable Auto Refresh. The Auto Refresh button will allow the
on-screen results to be automatically updated. The screen update depends on the user-defined parameter Refresh Rate
found on the Configuration page.
The Line Control screen will automatically update line information. Administrator privileges will be necessary to use the
Line Control screen. For instructions on FMS programming or on how to obtain an Administrator access level, please refer
to the T5 Series FMS Programming Guide (p / n 000-2142) or the TS-550evo FMS Programming Guide (p/n 000-2173).
.
