Franklin Fueling Systems T5 Series Fuel Management System Installation Guide - Manual (Page 18)

18

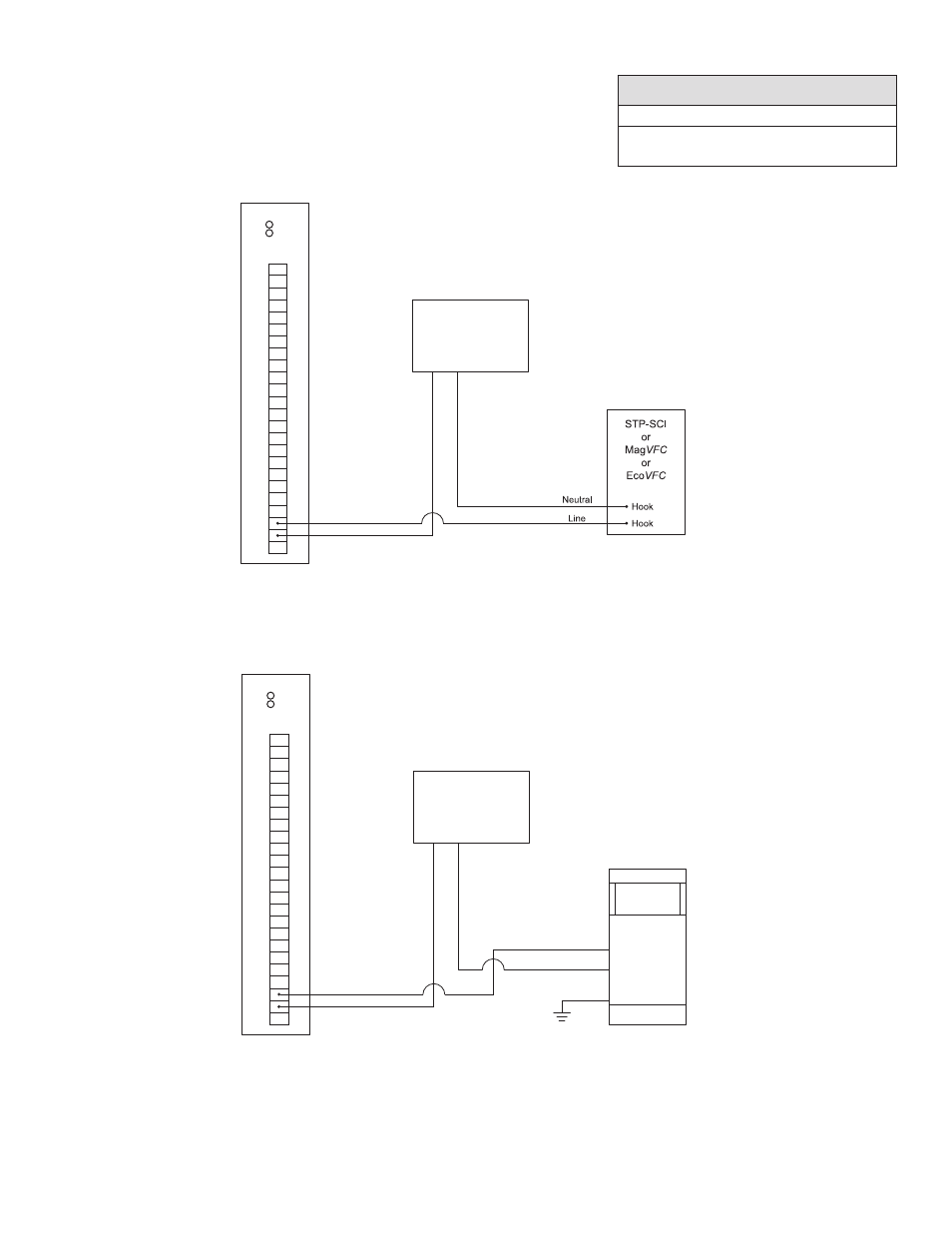

Appendix C: Relay Module (RLY)
The RLY is a non-intrinsically safe module that has 8 identical Form C output
channels. Each channel has a fuse and three terminals. Each channel can
be configured as NO or NC with the power off by wiring to the appropriate
terminals. A T5 series console can accommodate up to 24 outputs (8 outputs
on up to 3 modules) as space allows. The diagrams below illustrate two
examples of positive shutdown upon alarm conditions.
Note: A valid dispenser hook signal coming from the AC Input Module (shown in Figure D-1) is required for the above
diagram to function as shown.
Relay Module
RUN
ERR
NO8
C8
NC8
NO7
C7
NC7
NO6
C6
NC6
NO5
C5
NC5
NO4
C4
NC4
NO3
C3
NC3
NO2
C2
NC2
NO1
C1
NC1
DISPENSER 1
Relay Module disables power to the
dispenser upon alarm conditions.
110/240 VAC
Electrical Panel
Line Neutral
Line
Neutral
GND
Switching Current 2A Max.
Switching Power 1500 VA Max.
Figure C-2 – Positive Dispenser Shutdown
Relay Module Specifications
Number of Channels: 8 Form C
Contact Rating: 2A @ 250 VAC
2A @ 30 VDC
Relay Module
RUN
ERR
NO8
C8
NC8
NO7
C7
NC7
NO6
C6
NC6
NO5
C5
NC5
NO4
C4
NC4
NO3
C3
NC3
NO2
C2
NC2
NO1
C1
NC1
Relay Module disables the
hook signal to the pump
upon alarm conditions.
110/240 VAC
Electrical Panel
Line Neutral
Switching Current 2A Max.
Switching Power 1500 VA Max.
Figure C-1 – Positive Submersible Control Box Shutdown
Note: The relay will need to be configured as polarity inverted in order to function correctly in the above diagram.
Note: If a dispenser’s current rating is between 2 and 10 amps, use a 10 amp relay module. If the current rating is higher
than 10 Amps, use an appropriate isolation relay.
