11
10.25" (260.4 mm)
12" (305 mm
)
8.25" (210 mm) 9.00" (229 mm)

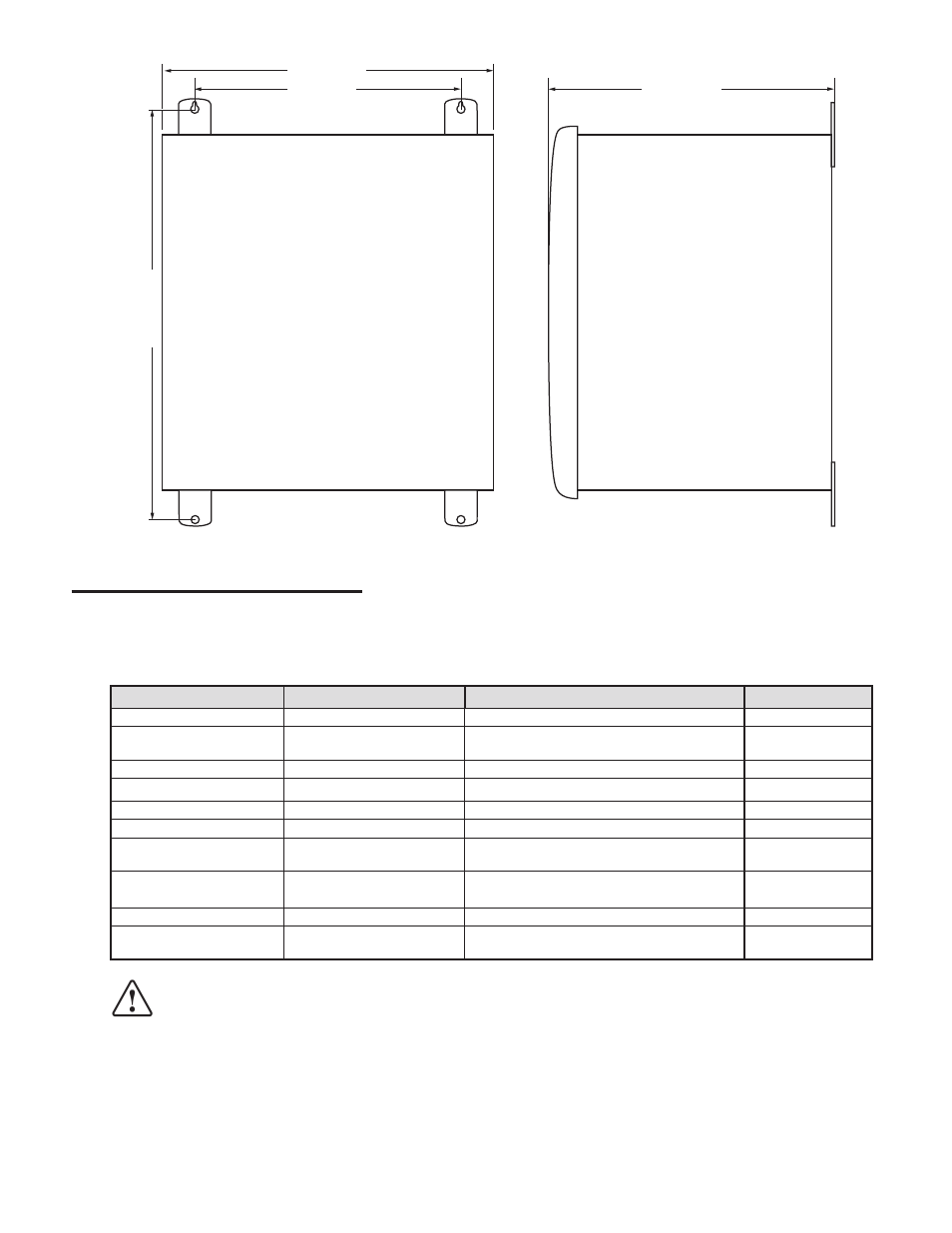

Figure 4: TS-550evo Dimensions
Communication Ports
The T5 series consoles have several communication ports that can be used to talk to various devices. The communication
ports can be used for a wide variety of applications: to connect the console to a computer network, to print reports on an
external printer or to fax reports via the optional internal fax/modem. Please refer to the table below for a more complete
listing of the ports and their associated devices.
Port Connector Type Devices Module
RS-232 Comm 1 DB9 Female Local PC (preferred in Comm 1) Controller
RS-232 Comm 2 DB9 Male
POS Terminal, External Modem, External ATG
to TS-EMS or Local PC with a null-modem cable Power Supply
Ethernet RJ-45 Local Network Controller
USB (#1) Type A External Hewlett-Packard Printer Controller
USB (#2) TS550evo only Type A External Hewlett-Packard Printer Controller
Fax/Modem RJ-11 Phone Line (requires an optional fax/modem) Controller
RS-485/TPI
4 Pin Pluggable Terminal
Block, 0.2" (5.08 mm) LS
TS-DIM (external) Power Supply
Bus Extension
(CAN) 3 Pin Pluggable Terminal
Block, 0.15" (3.81 mm) LS
TS-EXPC Power Supply
RS-422/232 & Current Loop DB9 Male Dispenser Distribution Box (Dbox) Dispenser Interface
LON
2 Pin Pluggable Terminal
Block, 0.2" (5.08 mm) LS
IFSF Network LON Interface
Peripheral equipment connected to the T5 series console’s communication port must:
1. Be listed by UL or another third-party Nationally Recognized test laboratory when required by
the authority having jurisdiction, and:
2. Not be installed over a hazardous location (unless so rated)
Caution
