TS-550 (TS-EMS / TS-EXPC2)
The TS-550 (TS-EMS / TS-EXPC2) is slightly larger than the TS-5 (TS-608) with conduit knockouts and communication
ports located on the bottom of the unit. Use the diagram below to help you mount the console appropriately.
TS-5000 (TS-EXPC)
The TS-5000 is the largest console in the T5 series, so plan accordingly using the diagram above. The TS-5000 also has
communication ports and conduit knockouts on the bottom of the unit.

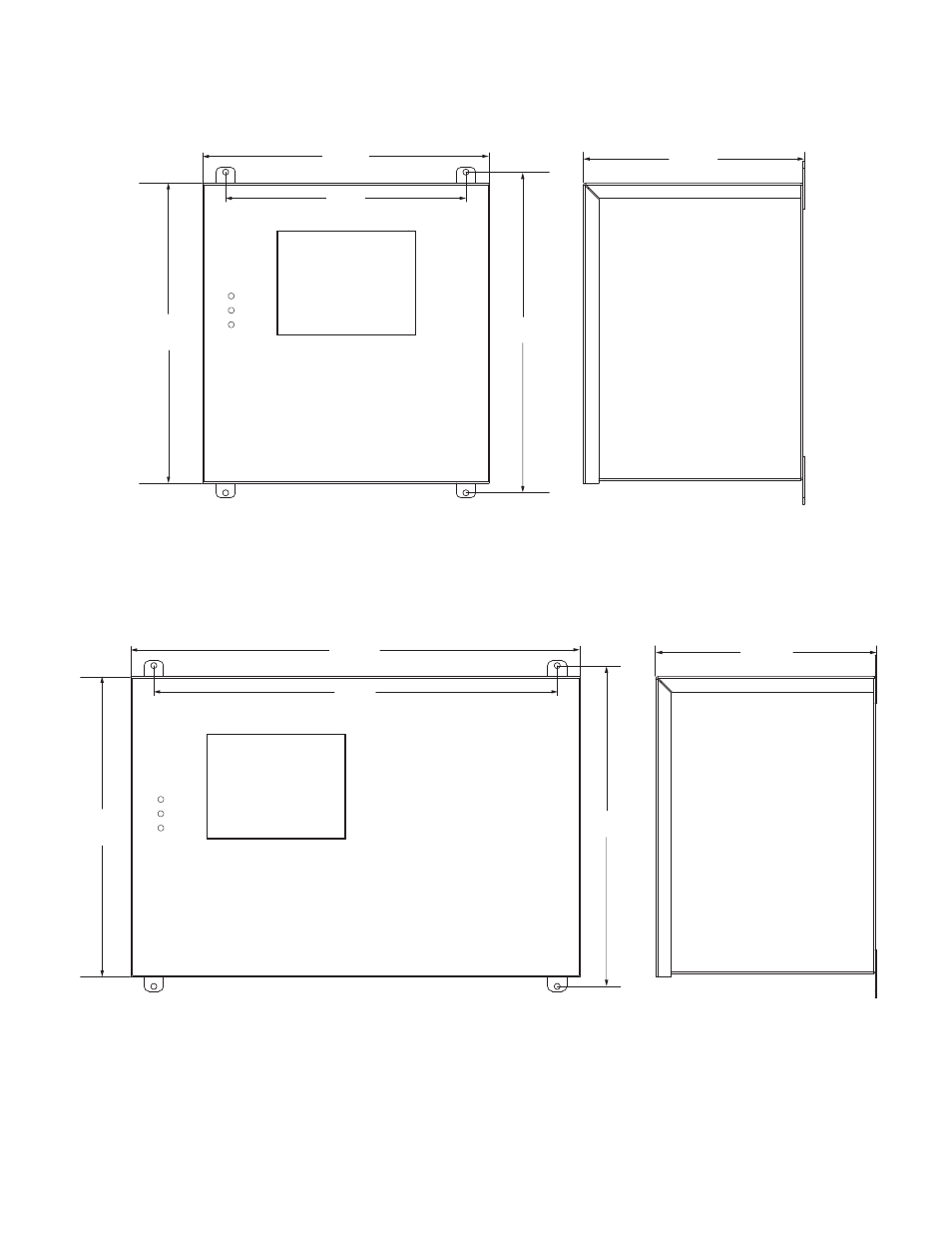

Figure 2 – TS-550 (TS-EMS / TS-EXPC2)
11.1"
(282 mm)
10.5"
(267 mm)
8"
(203 mm)
8.2"
(208 mm)
12.1"
(307 mm)
TS-550 (front view) TS-550 (side view)
Figure 3 – TS-5000 (TS-EXPC)
11.1"
(282 mm)
16.5"
(419 mm)
8"
(203 mm)
14.2"
(361 mm)
12.1"
(307 mm)
TS-5000 (front view) TS-5000 (side view)
