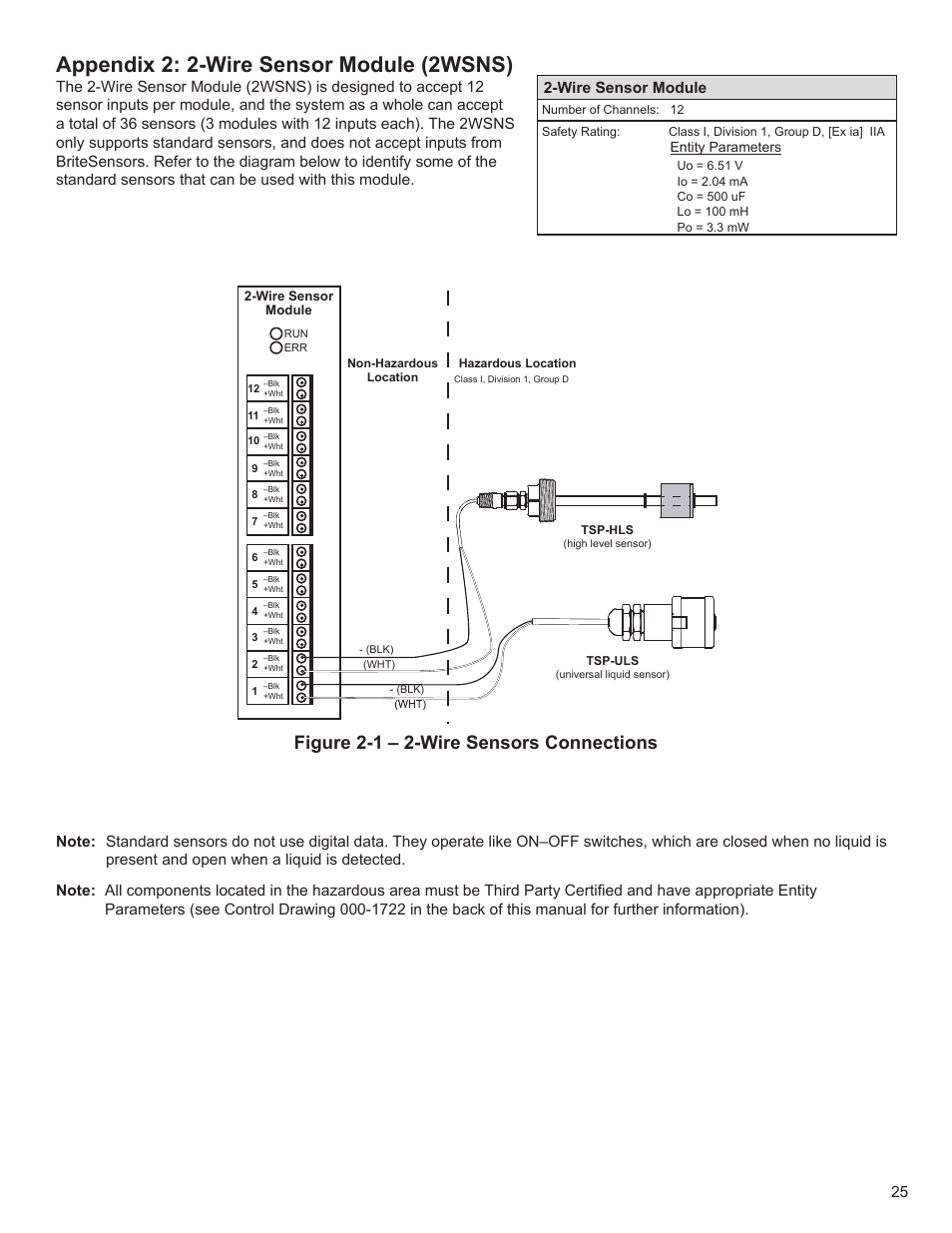

Appendix 2: 2-wire sensor module (2wsns), Figure 2-1 – 2-wire sensors connections – Franklin Fueling Systems T5 Series Fuel Management System Installation Guide User Manual
Page 25
