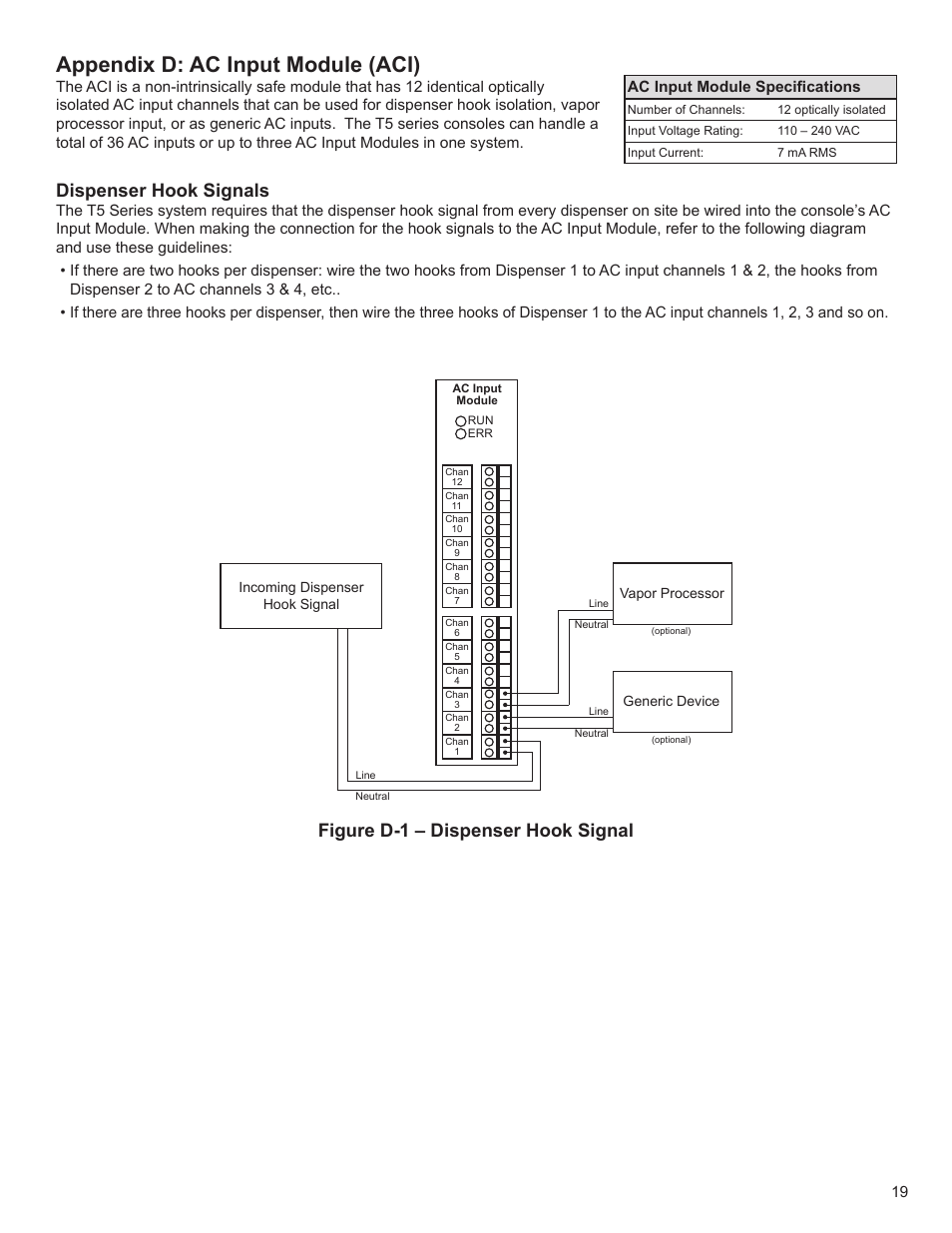

Appendix d: ac input module (aci), Dispenser hook signals, Figure d-1 – dispenser hook signal – Franklin Fueling Systems T5 Series Fuel Management System Installation Guide User Manual
Page 19: Ac input module specifications
