Extron • System 8/10 P

LUS

• User’s Manual

Reference

B-4

Host Baud Rate

Switch 4:

When set “ON” - if the front panel’s Display Power button is

momentarily depressed, the connected projector will immediately
power up/down without the default 2-second delay.

When set “OFF” - the front panel’s Display Power button must be
depressed for 2 seconds before the connected projector will
power up/down.

Changing the Host Baud Rate

Use the procedure on page B-3 to remove the System 8/10 P

LUS

cover.

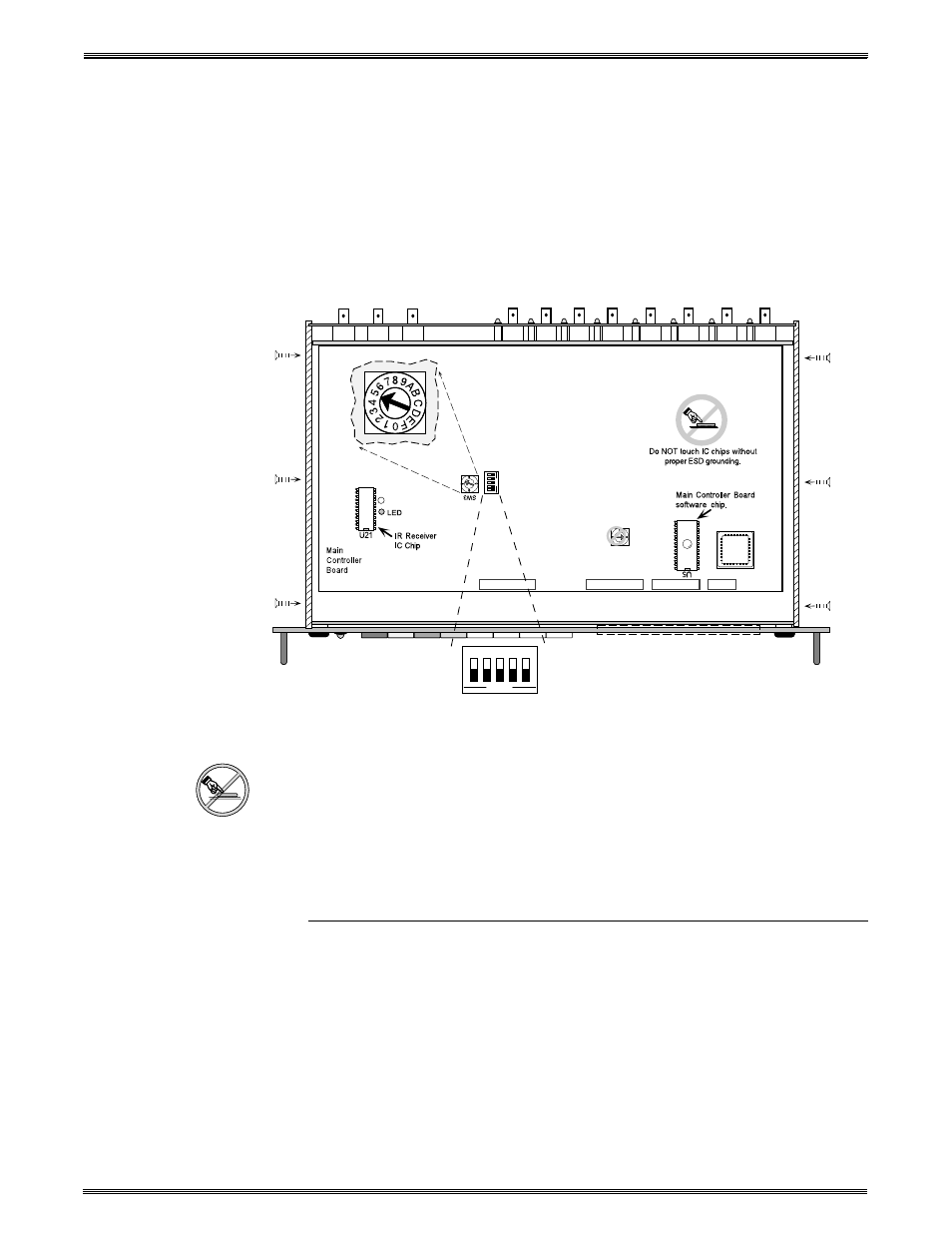

1. With the cover removed, locate the Host Baud Rate switch SW3.

_____ Do NOT touch any switches or electronic components, other than SW3 and

switches 3 or 4 of SW1 - see previous page. This could seriously affect the
operation of the switcher.

The factory setting for SW3 is 5 (9600 baud, 8-bit, no parity and 1 stop bit).

Other SW3 settings are listed below.

For 8-bit, no parity, 1 stop bit:

For 8-bit, odd parity, 1 stop bit:

Position 0 = 300 baud

Position 8 = 300 baud

Position 1 = 600 baud

Position 9 = 600 baud

Position 2 = 1200 baud

Position A = 1200 baud

Position 3 = 2400 baud

Position B = 2400 baud

Position 4 = 4800 baud

Position C = 4800 baud

Position 5 = 9600 baud

Position D = 9600 baud

Position 6 = 19200 baud

Position E = 19200 baud

Position 7 = 38400 baud

Position F = 38400 baud

2. Use a small screwdriver to rotate the switch to the position for the desired Host

baud rate.

3. When finished, replace the System 8/10 P

LUS

cover (page B-3) and return the

System 8/10 P

LUS

to normal operation.

13

4

2

5

OPEN

SW1

1

3 4

2

5

OPEN

ON

OFF
