Extron • System 8/10 P LUS • User’s Manual
Projector/Monitor Installation Configuration
3-4
Extron Comm Adapters
Extron communications adapters (Comm Adapters) provide the interface
between the 9-pin connector of the communications cable and the display’s
switcher port. Extron manufactures a wide range of Comm Adapters to interface
with virtually all projector makes and models. Your Extron representative will help
you select the correct Extron Comm Adapter to meet your specific projector
requirements.
Setting the System 8/10 P
LUS
for the Projector
Before each System 8/10 P
LUS
ships, it is configured for the projector type as
requested by the user. However, it can easily be reconfigured for any application.

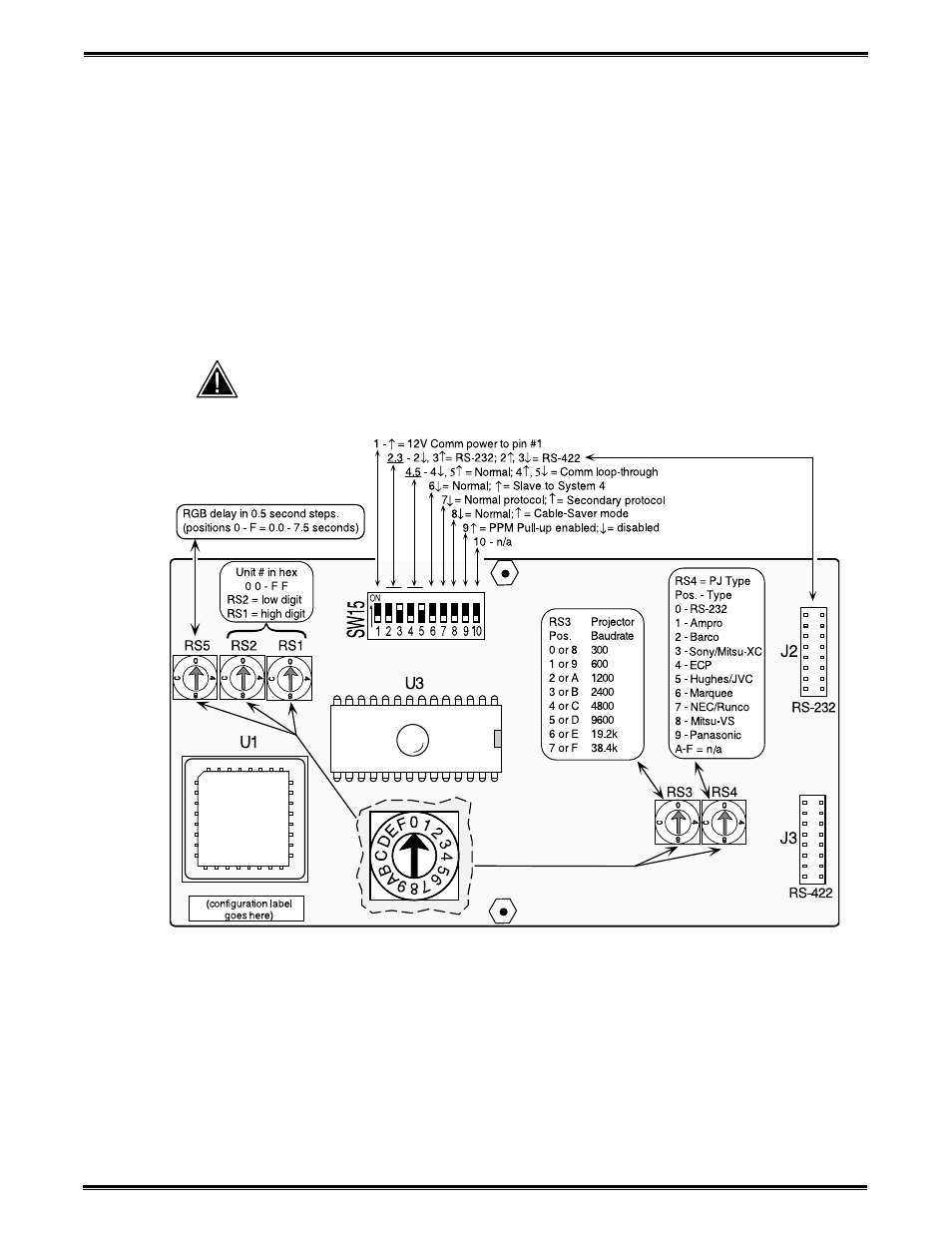

The picture below shows the function of each switch behind the access cover on
the front panel of the System 8/10 P
LUS .
______ Do not change any switch settings without following the correct procedure in this
chapter. Go to the appropriate procedure for your application.
Triple-Action Switching™ (RGB Delay Switch - RS5)
When an input is selected, the sync switches immediately. However, the picture
may be switched later (0.0 - 7.5 seconds) to prevent an unstable image while the
projector is setting up for the new sync signal. RS5 is used to set this delay.
Each position of the switch adds 0.5 seconds to the delay.
