Extron • System 8/10 P

LUS

• User’s Manual

Reference

B-3

Removing the Cover

Removing the System 8/10 P

LUS

Cover

There is rarely a need for the user to remove the System 8/10 P

LUS

cover.

Three possible reasons would be:

To change the Main Controller Board SW1 switch settings (switches 3 & 4

only)

To change the Host baud rate from the factory setting of 9600 baud

To upgrade the Main Controller Board Software chip

1. Unplug the AC power cord.

2. If rack-mounted, remove the System 8/10 P

LUS

from the mounting rack.

3. Remove all input and output cables.

4. Place the System 8/10 P

LUS

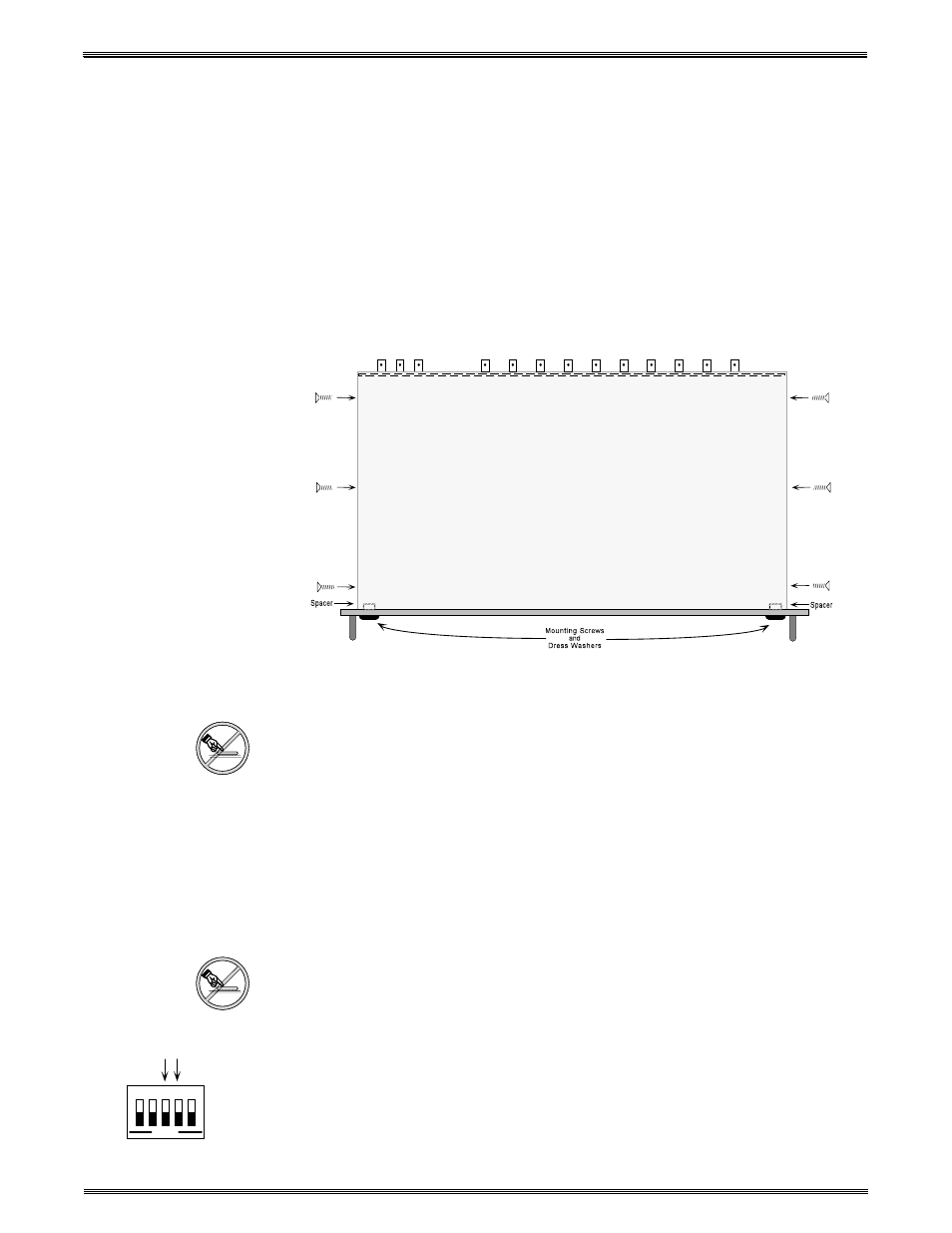

on a clean work space and remove the six (6)

screws shown in the picture.

5. Go to the procedure for which you have opened the cover (see following pages).

_____ Do NOT touch any switches or electronic components, other than those

specified. This could seriously affect the operation of the system.

6. When finished working inside the System 8/10 P

LUS

, use this procedure in

reverse to replace the cover.

(French) Enlever le couvercle du Système 8/10 P

LUS

- page B-9

(German) Entfernung der System 8/10 P

LUS

Abdeckung - seite B-11

Changing SW1 Switch Settings

_____ The SW1 DIP switches, as illustrated below, should ONLY be changed when

resetting switches 3 and 4! Switches 1, 2, and 5 must NEVER be reset! Failure
to heed this warning could seriously affect the operation of the switcher.

Locate SW1 on the Main Controller board (see diagram on next page).

Switch 3:

When set “ON” - if the connected projector is in ‘Display Mute’ mode,

the front panel’s Input Select button will not be illuminated.

When set “OFF” - if the connected projector is in ‘Display Mute’ mode,

the front panel’s Input Select button will be illuminated.

1

3 4

2

5

OPEN

ON

OFF

59,125MEJ?DAI

Note: Only switches 3 and 4 may be reset!
