Extron • System 8/10 P

LUS

• User’s Manual

Reference

Parts

B-2

Related Parts List

The System 8/10 P

LUS

needs two additional parts to control a

display device:

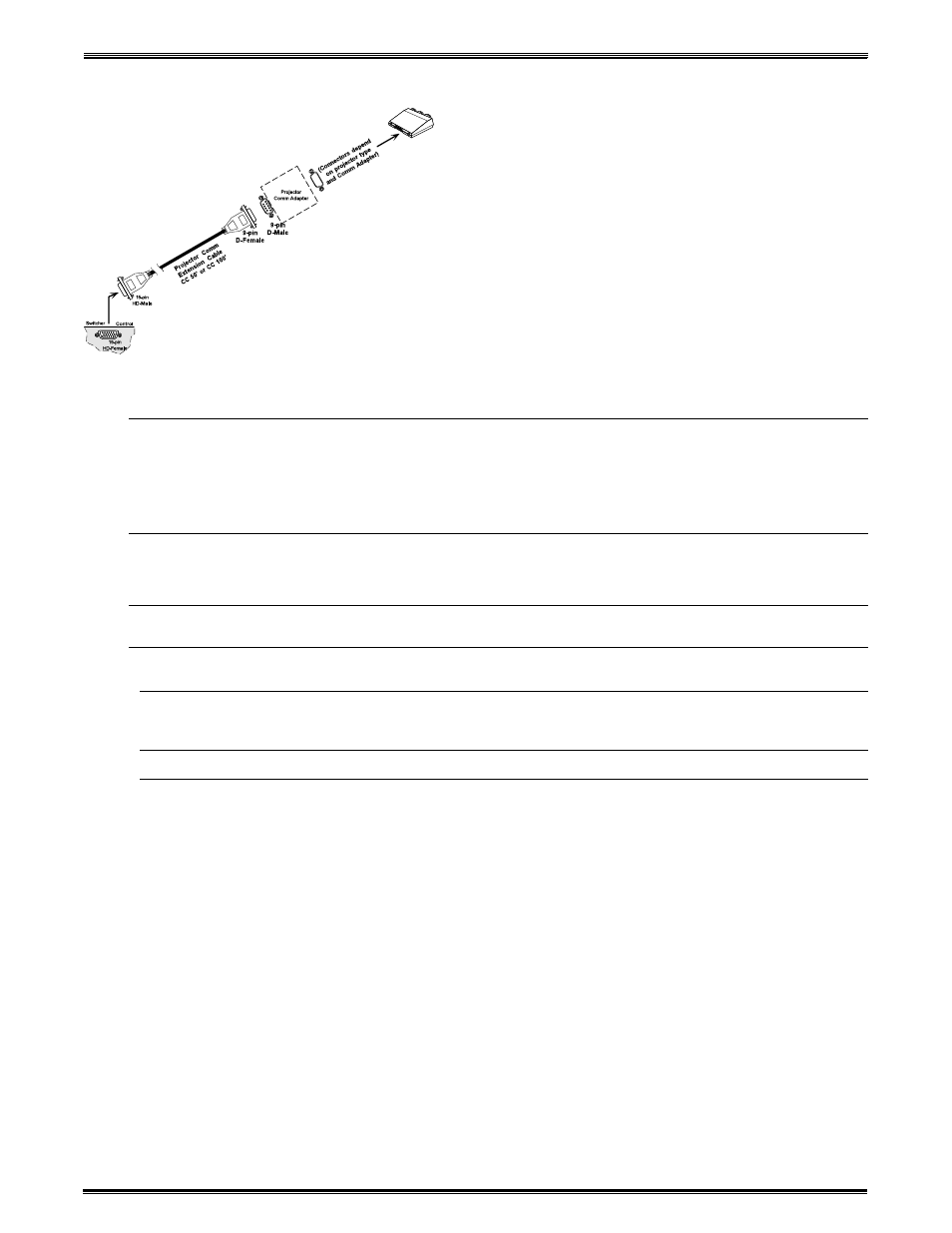

1. A Projector Communications Extension Cable (CC Cable)

2. A Communications Adapter (Comm Adapter)

The Communications Extension Cable is the same for most applications (other

than the choice of length). In most applications the Projector Comm Adapter
connects between the Communications Extension Cable and the projector or
monitor. Each adapter is designed specifically for the display device being used.

Below is a list of cables and other related parts.

Connector codes:

9 = 9-pins; 15 = 15 pins; D = "D" sub connector
M = male; F = female

Projector Communication Extension Cables

Connectors

Part #

CC50' (50 ft.)

15/HD/M to 9/D/F

26-305-01

CC50' Type II (50 ft.)

15/D/M to 15/D/F

26-323-01

CC100' (100 ft.)

15/HD/M to 9/D/F

26-305-02

CC100' Type II (100 ft.)

15/D/M to 15/D/F

26-323-02

CC200' (200 ft.)

15/HD/M to 9/D/F

26-305-03

CC200' Type II (200 ft.)

15/D/M to 15/D/F

26-323-03

S-Video Adapter Cables
S-VHS 6' (male-to-male, 6 feet)

26-316-02

S-VHS M20' (male-to-male, 20 feet)

26-316-01

S-VHS BNC (male-to-male, S-Video to BNC, 6")

26-353-01

Connectors
Captive Screw Phoenix® Connectors (6-pin, Audio)

10-163-01

Documentation
System 8/10 P

LUS

User's Manual

68-078-01

Extron Products that may be used with the System 8/10 P

LUS

CD 400 – Quad Standard Decoder

60-145-01/02

Andora – NTSC & PAL Scan Doubler

60-144-01

System 4C – Switcher with built in Quad Standard Decoder

60-183-01

System 4LD – Switcher with built in Line Doubler

60-155-01

Upgrade/Options
Infrared (IR-30) Remote Control Option (includes IC chip and System Remote)

70-037-01
