Extron • System 8/10 P LUS • User’s Manual
Controlling the Switcher
U3
J2
J3
U1
4-3
Miscellaneous
KEY CAP
CLEAR LEGEND
COVER
LEGEND
PLATE
The right side of the front panel has a removable cover for accessing setup
controls. This is explained in Chapter 3.

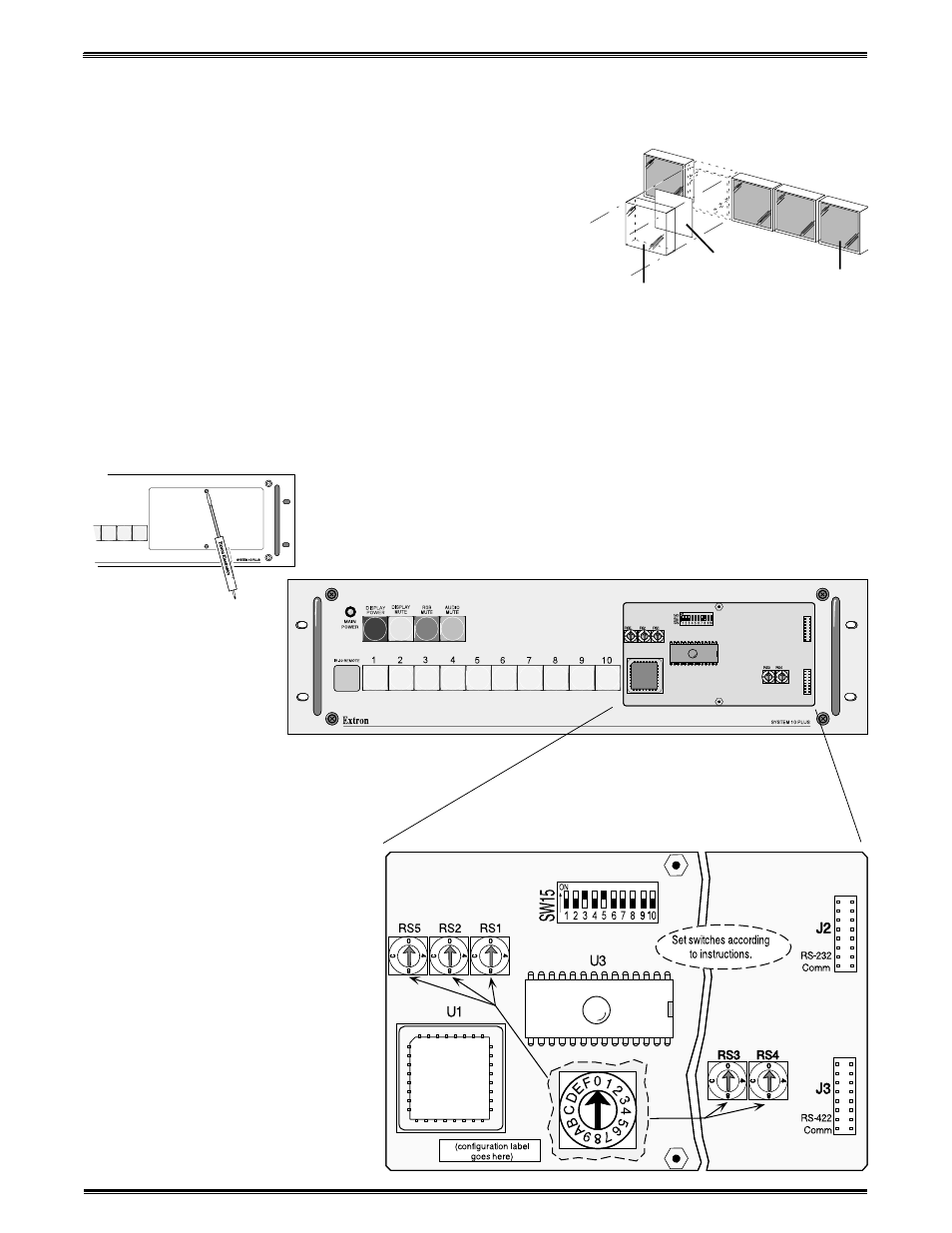

Button Labels
1. Remove the desired key cap from
the switcher by grasping the top and
bottom of the key cap and pulling it
away from the switcher.
2. Dismantle the button by prying the
clear legend cover from the key cap
base.
3. Label the button by using rub-on
letters on the white legend plate or by placing a small clear or white label
between the white legend plate and the clear legend cover.
4. Reinsert the key cap back into place on the switcher.
Front Panel Access Cover
The Front Panel has a cover that can easily be removed for configuring the
System 8/10 P
LUS for different applications. Use a small screwdriver to release
the captive screws that hold the access cover on. Note that the cover has a label
on the inside that shows how to configure the switches. Chapter 3 has detailed
instructions for using this area.
