Installing a Board in the Enclosure
Up to 16 single slot or 8 dual slot input/output boards can be inserted into the PowerCage
enclosure. The PowerCage transmitters and receivers are all dual slot boards.
NOTE: The boards are hot-swappable, and can be installed or removed without
disconnecting power to the PowerCage enclosure.
Use ESD precautions when installing a board to avoid damaging the board. Keep
the board in the anti-static bag until needed. Use proper grounding techniques
during installation.
1. Ensure power is removed from the PowerCage enclosure.
2. Position the board in the slot so that the power and communication ports on the
front end of the board are aligned with the matching ports inside of the board cage
(see figure 25).
5A MAX. 100-240V 50/60H
z
N15 778
C
US
LIS TED 1T2 3 I.T. E.
Screws (2 per card)
16 available single board slots or
8 double board slots
Power
Supply

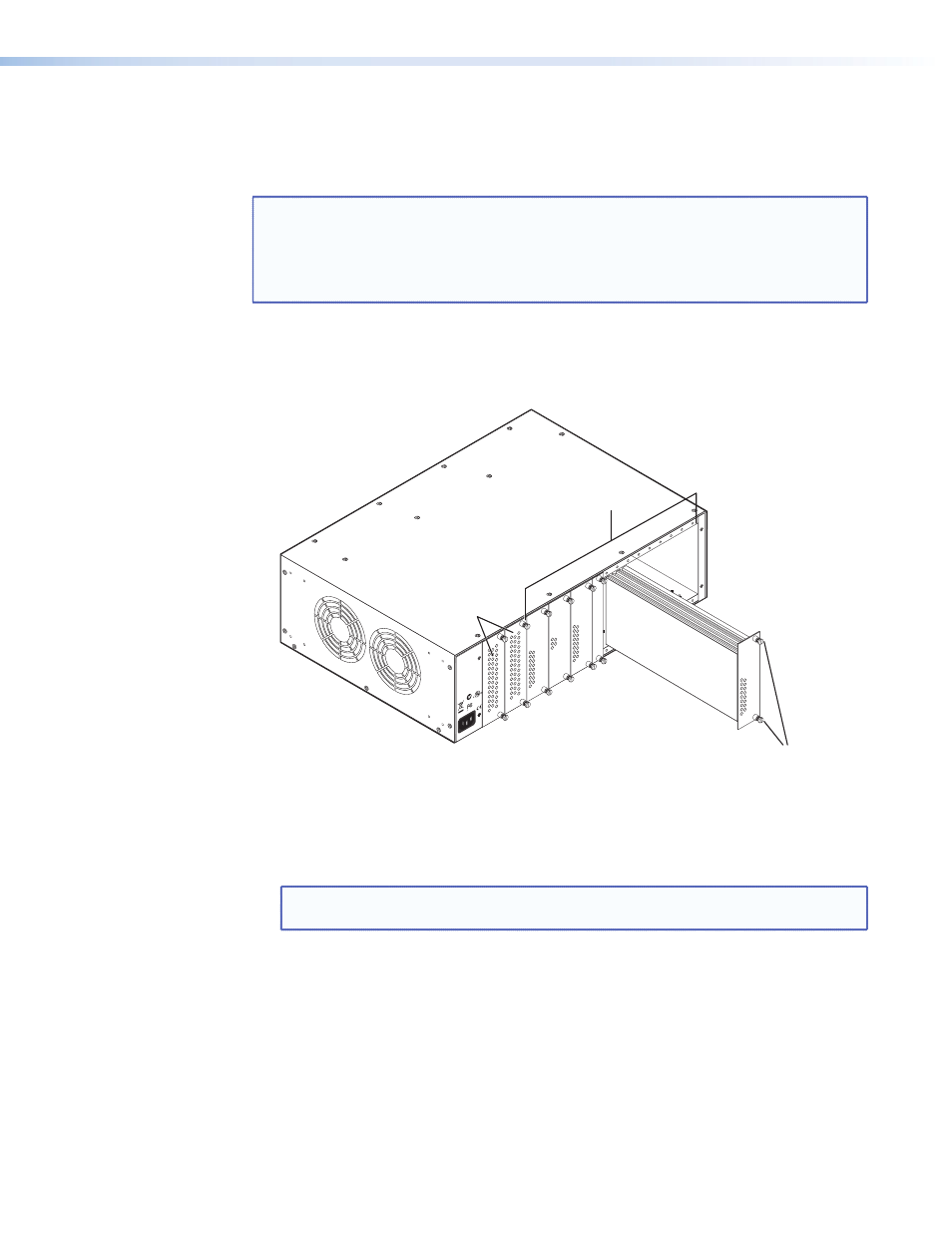

Figure 25. Inserting Boards into the PowerCage 1600 Enclosure
3. Carefully slide the board into the slot and push the board firmly into place.
4. Use a screwdriver to tighten the two screws to secure the board in place.
5. Repeat steps 2 to 4 for all boards needing installation.
NOTE: Ensure the boards are flush with the rear of the enclosure and the screws
tightened securely before applying power.
