2.

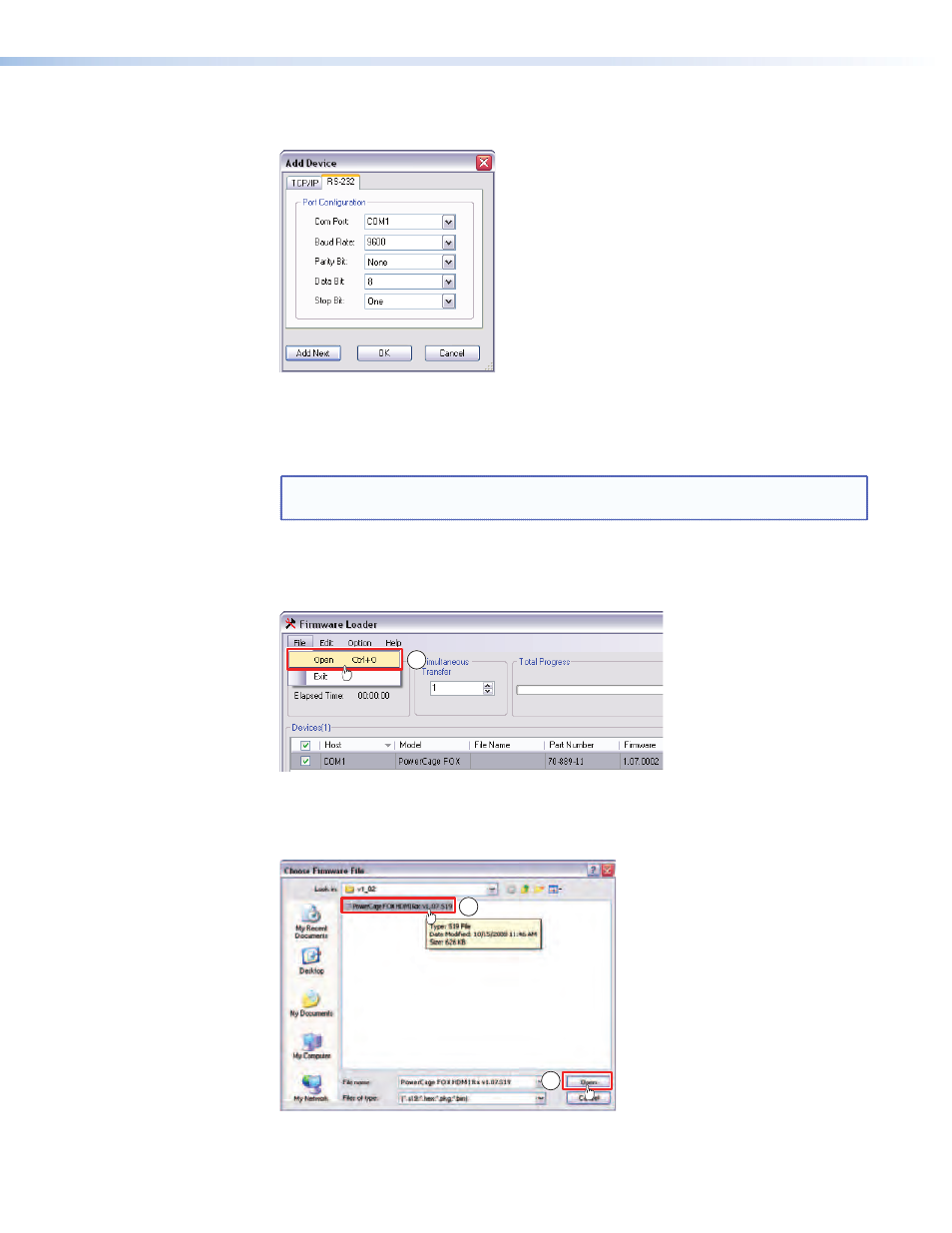

If you have not previously updated firmware for the PowerCage FOX unit before, on the
Add Device screen (see figure 21), select the RS-232 tab.
Figure 21.
Add Device Screen
If you have previously updated firmware for this model, click Cancel. The Firmware
Loader window appears. Proceed to step 5.
NOTE: Although the screen also has a TCP/IP tab, the PowerCage FOX unit does
not have a LAN port. Do not select the TCP/IP tab.
3.
From the drop-down menus on the RS-232 screen, select the appropriate Com port
number and baud rate (the default is 9600).
4.
Click OK. The Firmware Loader window appears (see figure 22).
5
Figure 22.
Extron Firmware Loader Window
5.
Select the PowerCage FOX unit and click File > Open. The Choose Firmware File
screen appears (see figure 23).
6
6
Figure 23.
Choose Firmware File Window
PowerCage FOX HDMI • Remote Control
35
