2.
Select the Com port to which your transmitter or receiver is connected. Click OK. The
FOX Extenders Control Program window appears (see figure 15).

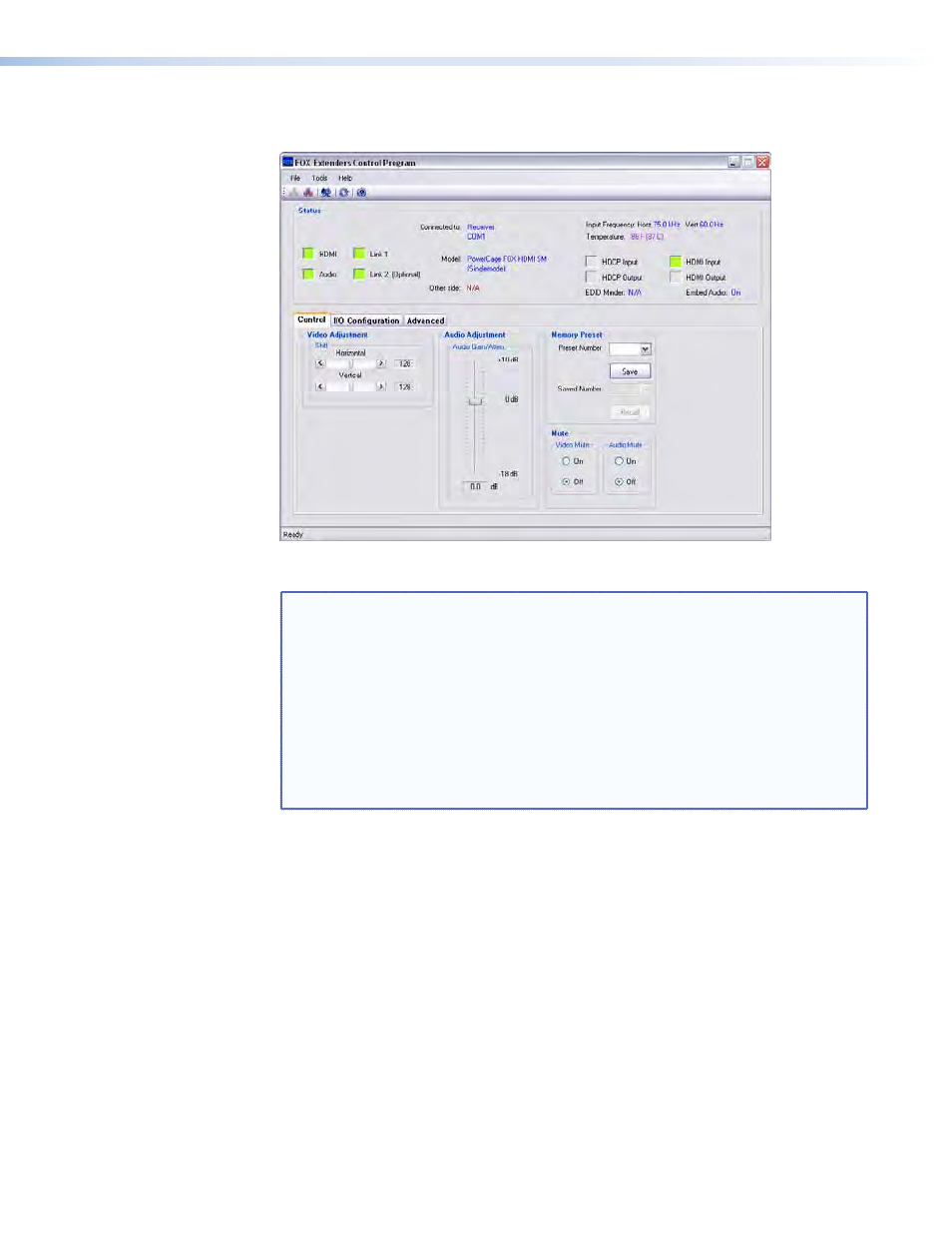

Figure 15.
FOX Extenders Control Program Window
NOTES:
•
Figure 15 is an amalgam of program displays. Some controls and displays
are available when connected to the transmitter only and some when
connected to the receiver only. These functions are identified in the
descriptions that follow.
•
Only one fiber optic cable, transmitter-Tx-to-receiver-Rx, is required for
serial command transmission. But, if you connect only one fiber optic
cable, the transmitter does not receive reports from the controlled device.
For the transmitter to receive responses from the controlled device,
you must install two fiber optic cables and leave link 2 enabled (via an
to the receiver or using the
).
PowerCage FOX HDMI • Remote Control
27
