Extron Electronics PowerCage FOX Tx_Rx HDMI User Guide User Manual
Page 39
Firmware Upgrade
Firmware can be upgraded for each unit via the PowerCage front panel Configuration port
using the Extron Firmware Loader utility from the Windows-based control program.
Downloading the firmware from the Web site
To obtain the latest version of firmware for your PowerCage FOX unit:
1.
Visit the Extron website,
www.extron.com
, click the Download tab, and then click the
Firmware link on the left sidebar menu (see figure 17).
1
1

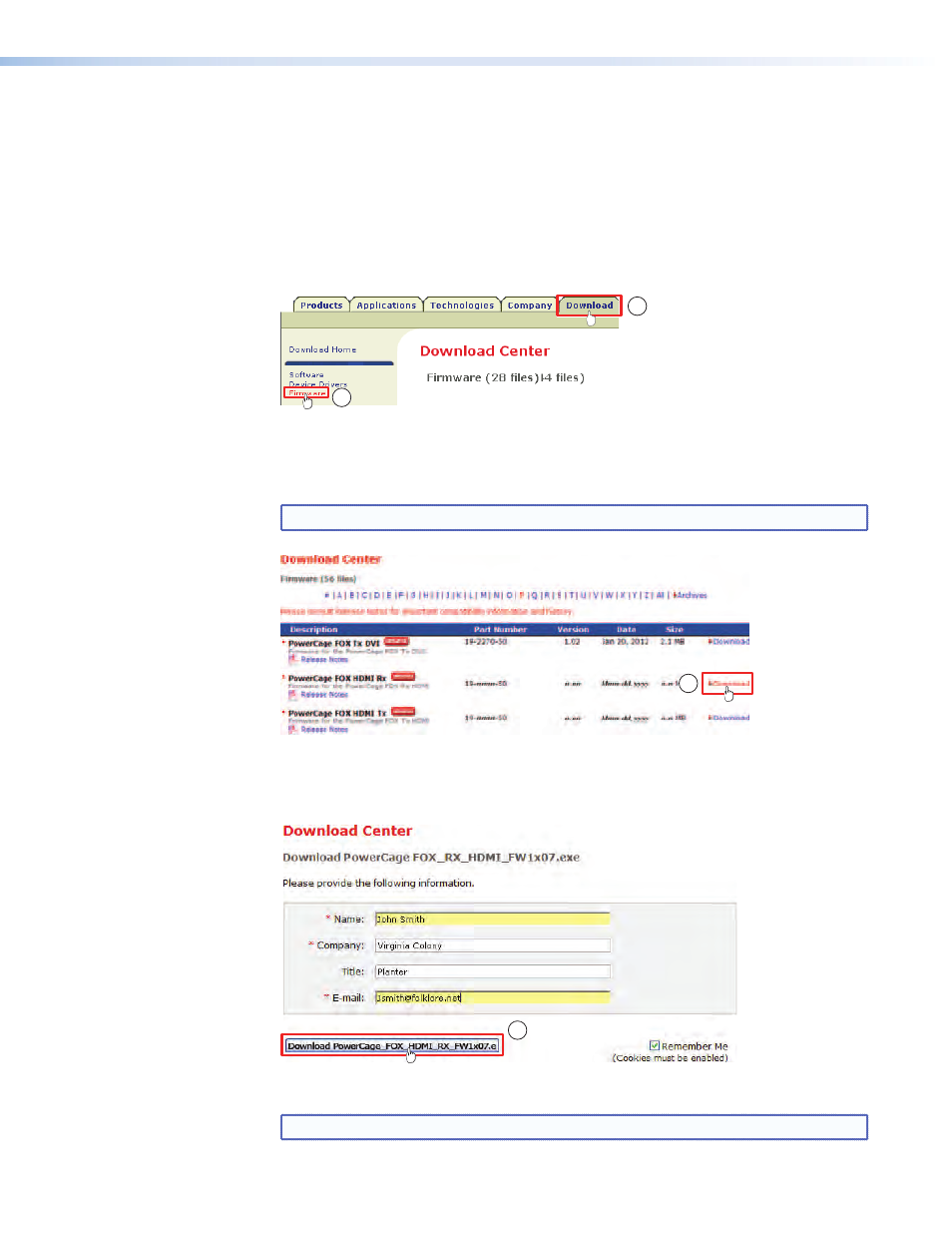

Figure 17.
Location of Firmware Upgrade Files
2.
On the Download Center screen (see figure 18), click the links for the appropriate
firmware file or files.
NOTE: There are different files for the transmitter (Tx) and receiver (Rx).
2
Figure 18.
Finding PowerCage FOX Firmware
3.
Complete the Personal Information form (see figure 19) and click the Download
button.
3
Figure 19.
Personal Information Form
TIP: Select the Remember Me checkbox to avoid filling out this form in the future.
PowerCage FOX HDMI • Remote Control
33
