Transmitter Side Panel Controls
The following features are on the PowerCage HDMI Tx transmitter, and are accessible
though the cut on the left side of the module enclosure (see figure 11).
1
2
2
1

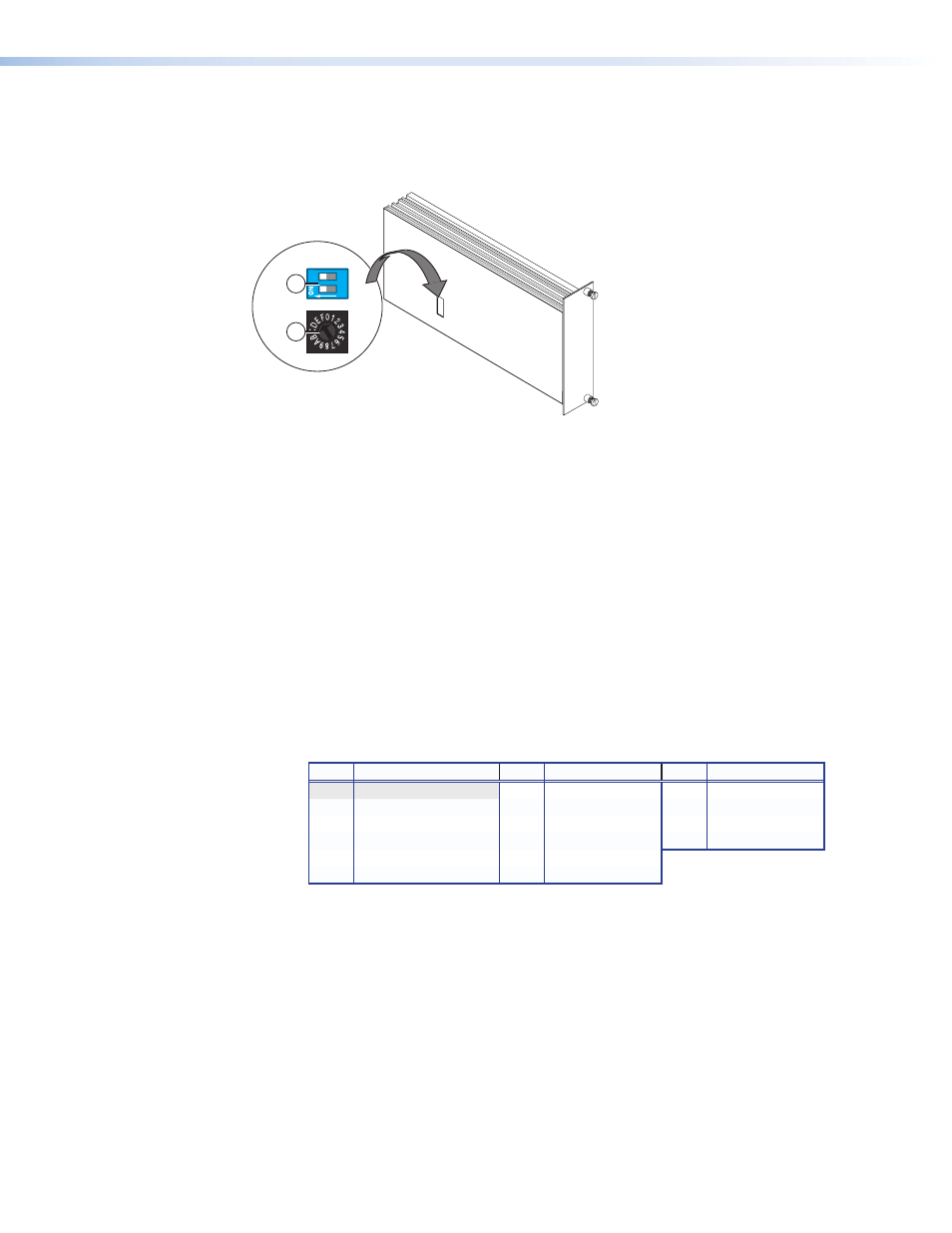

Figure 11. Transmitter Side Panel Controls
a DIP switches —
• Switch 2 (Audio) — This switch selects which audio input, the audio embedded
in the HDMI input or the analog audio, is sent to the receiver. On (left) selects the
digital (embedded) audio and off (right) selects the analog audio.
• Switch 1 (50 Hz or 60 Hz) — This switch selects the vertical refresh rate of the
resolution selected by the EDID Minder hex switch (item
b ). On (left) selects the
50 Hz rate and off (right) selects the 60 Hz refresh rate.
b EDID Minder hex switch — Set this switch to one of the positions below to select
the source of the DDC or a specific resolution.
• Position 0 — Not applicable
• Position 1 — The EDID is selected via one of the serial ports in the system using an
SIS command or the FOX Extenders Control Program.
• Position 2 - F — Specify a resolution. The table below identifies the switch
positions and the associated resolutions.
Pos. Source or resolution Pos. Resolution Pos. Resolution
0 Not applicable 6 1280 x 800 C 1600 x 1200
1 RS-232 7 1280 x 1024 D 1680 x 1050
2 800 x 600 8 1360 x 768 E 1920 x 1080 (1080p)
3 1024 x 768 9 1366 x 768 F 1920 x 1200
4 1280 x 720 (720p) A 1400 x 1050
5 1280 x 768 B 1440 x 900
PowerCage FOX HDMI • Installation and Operation 13
