Input Submenu > Advanced Selections
Figure 30 shows the selections that are available from the Input > Advanced screen. The
switcher automatically adjusts for different input and output modes. However, if the
input signal has slightly different timing or is non-standard, some settings may need to be
manually adjusted. All settings for each input and output mode (including non-standard
input modes) are stored in non-volatile memory so that the adjustments do not need to be
repeated after the settings are optimized.
Timeout
Timeout
No
menu
display
INPUT
Menu Menu
Timeout
Menu
Enter
Menu
Size
Pan
Aspect
Advanced
(Variable*)
(Variable*)
(Variable*)
(0 to 31)
Total Pixels +864
+556
+696
47
16 Phase
H-Start
Active Pixels
Active Lines
Enter
Menu
Center
Zoom
Size
Pan
Aspect
Advanced
Total Pixels
Phase
H-Start
Active Pixels
Active Lines
Center
Zoom
(0 to 200)
Inputs 5 - 5
(0 to 62)
Inputs 1 - 4
V-Start 31 V-Start (0 to 31)
Inputs 1 - 4
* These variables are dependent on the
input resolution and output resolution.
(0 to 85)
Inputs 5 - 8

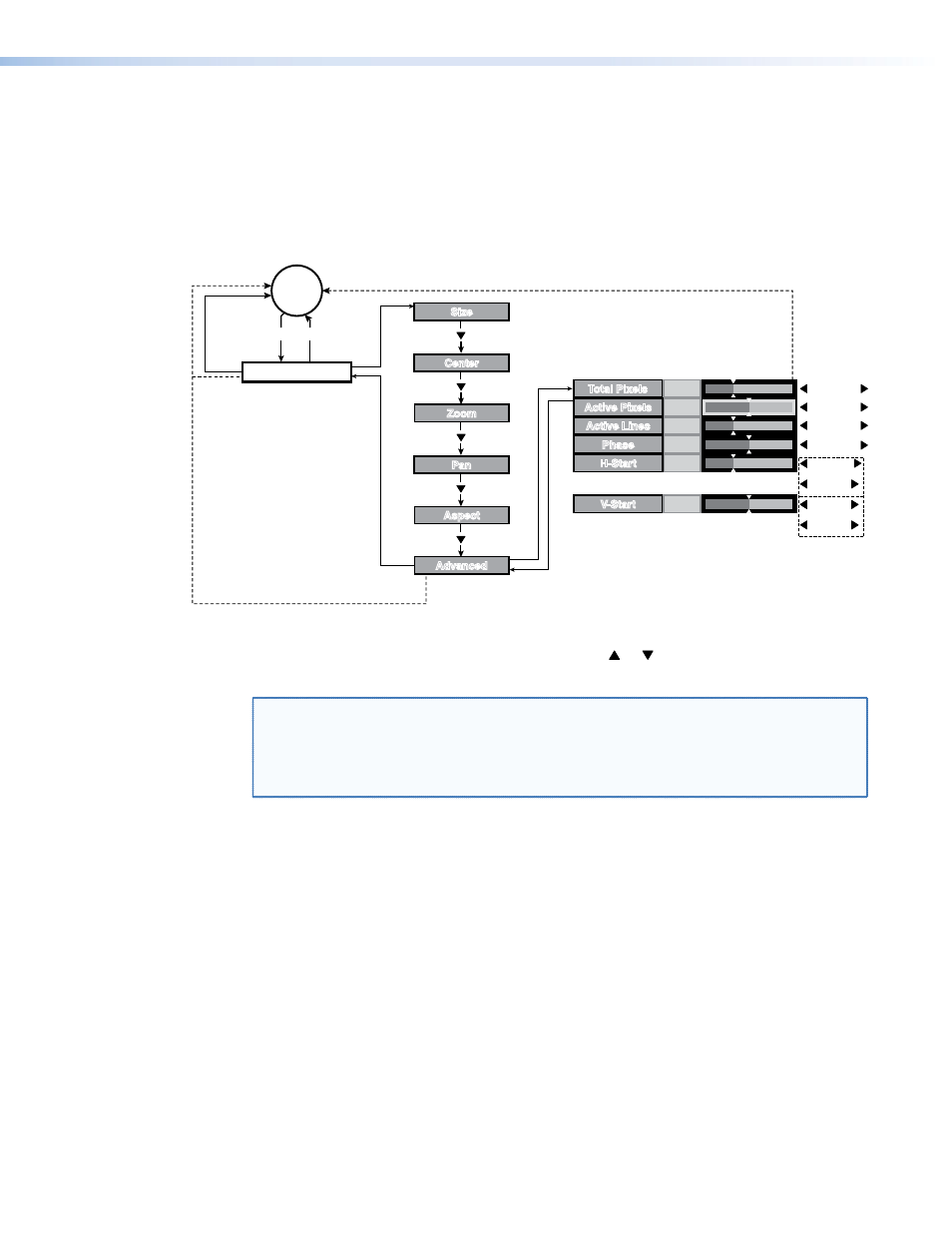

Figure 30. Input Submenu > Advanced Selections
To select one of the advanced settings, use the Menu or button to highlight the desired
status indicator bar.
NOTE: The Advanced settings available from the Input submenu are a comprehensive
set of adjustments to optimize the switcher for non-standard video inputs.
Most users do not encounter such signals. For those users who do, the switcher
automatically adjusts these settings. The automatic adjustments of the switcher
are adequate for most inputs.
IN1508 • Operation 40
