Operation
This section describes the front panel operation of the IN1508, including:
• Front Panel Controls and Indicators
• Remote Control Buttons
• Operations
• Optimizing the Video
• Optimizing the Audio
• Troubleshooting
Front Panel Controls and Indicators
All of the switcher controls are on the front panel (see figure 7). Many controls are
duplicated on the IR remote control (see
figure 14 on page 15). Front panel LEDs provide
graphic indication of some of the basic system functions. For more complex tasks, such as
system configuration, the switcher has a menu system that is operated by using the front
panel or IR remote control buttons. The menu system reports via an on-screen display on the
connected output device (see
figure 8 on the next page).
INPUT OUTPUT RATE PIP SCALING PRESENTATION SWITCHER
IR
IN1508
PICTURE CONTROLS
VGA
SVGA
XGA
SXGA
ON 7 6 5 4 3 2 1 SWAP 8 CENTER SIZE
CONT/
BRT
COL/
TNT MENU ENTER
1024x852
1024x1024
1366x768
1365x1024 UXGA
720p
1080i
1080p
1 6 8 2 3 4 5 7

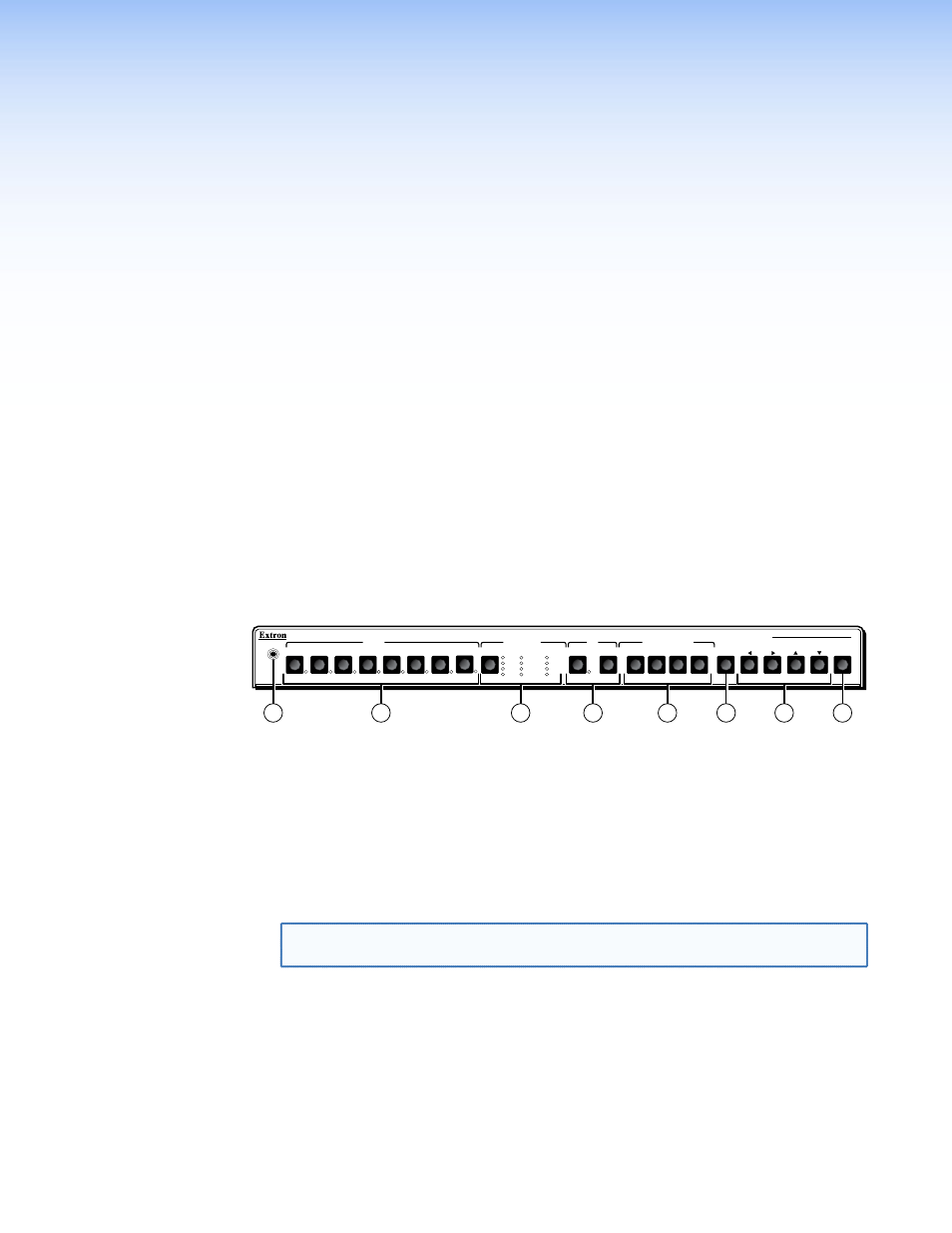

Figure 7. IN1508 Scaling Presentation Switcher Front Panel
Infrared Sensor
a Infrared remote sensor — This sensor receives infrared (IR) signals from the included
IN1508 remote control. The IR remote control must be pointed within 30 degrees of this
sensor (see
figure 8 on the next page) for best results.
See “ Remote Control Buttons ,” later in this chapter, for operation of the remote
control.
NOTE: The IR receiver can be disabled to avoid conflicts with other remotes (see the
IR receiver enable SIS command to disable the IR receiver).
IN1508 • Operation 9
