DXP DVI Pro and DXP HDMI Series • Matrix Software 93
• I/O Group settings — Allows you to establish input-output groups.
1. Drag two or more of the small boxes representing inputs or outputs to one of the
input or output Group boxes. You can drag boxes to a Group box from the Free
section or from another Group section.
2. Repeat step 1 as desired.
3. Click Take to establish the groups.

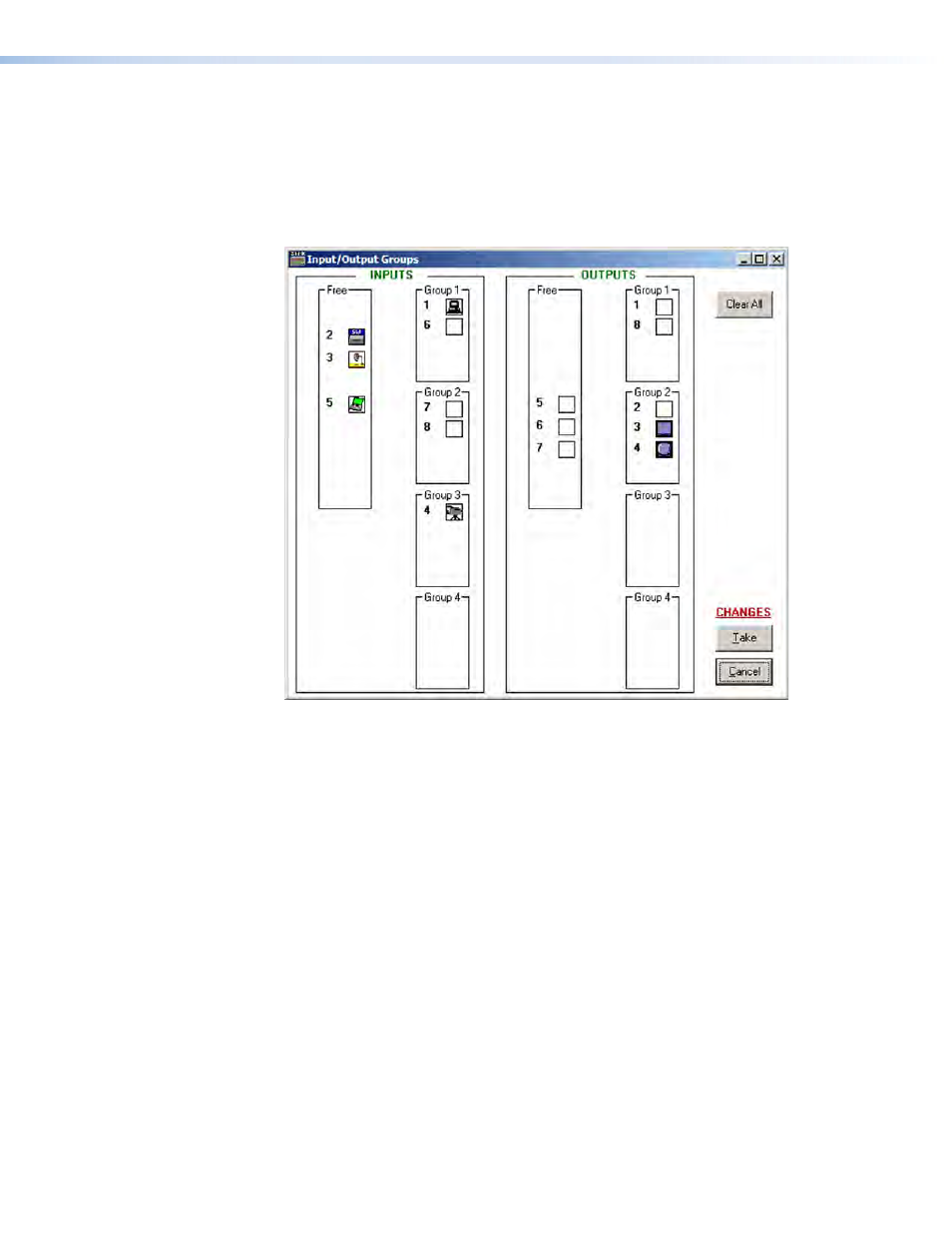

Figure 92. Input/Output Groups Window
