DXP DVI Pro and DXP HDMI Series • Operation 34
4. Press and release the desired input and output buttons.
Press and release the Input 1 through Input 4 buttons.
The selected buttons light.
Press and release the Output 1 through Output 4 buttons.
The selected buttons light.
5 6 7 8
OUTPUTS
5 6 7 8
INPUTS
1 2 3 4
1 2 3 4

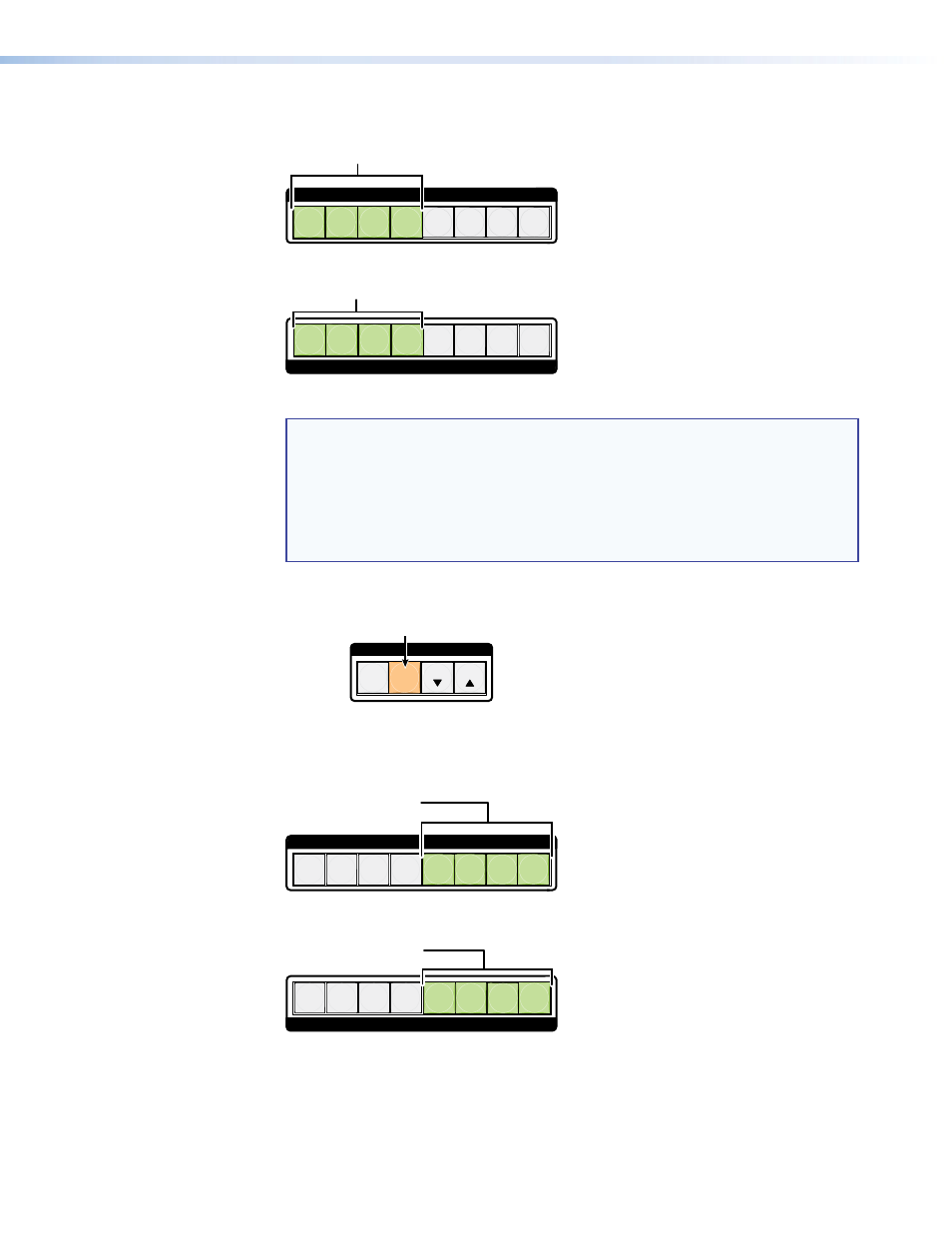

Figure 49. Assign Inputs and Outputs to Group 1
NOTES: • I/O groups are protected when front panel lock mode 2 is selected.
You can view the groups in lock mode 2, but you cannot change them
from the front panel (see “
Locking and Unlocking the Front Panel
(Executive Modes) ” on page 38).
• If front panel lock mode 2 is selected and you try to perform this step,
the button presses are ignored and the Enter, Video, and Audio buttons
flash.
5. Press and release the Preset button to select group 2.
C O N T R O L
PRESET ENTER ESC VIEW
1 3 2 4
Press and release the Preset button to select group 2.
The button lights to indicate the selection.
Group #
Figure 50. Select I/O Group 2
6. Press and release the desired input and output buttons.
Press and release the Input 5 through Input 8 buttons.
The selected buttons light.
Press and release the Output 5 through Output 8 buttons.
The selected buttons light.
1 2 3 4
OUTPUTS
1 2 3 4
INPUTS
5 6 7 8
5 6 7 8
Figure 51. Assign Inputs and Outputs to Group 2
