DXP DVI Pro and DXP HDMI Series • Matrix Software 88

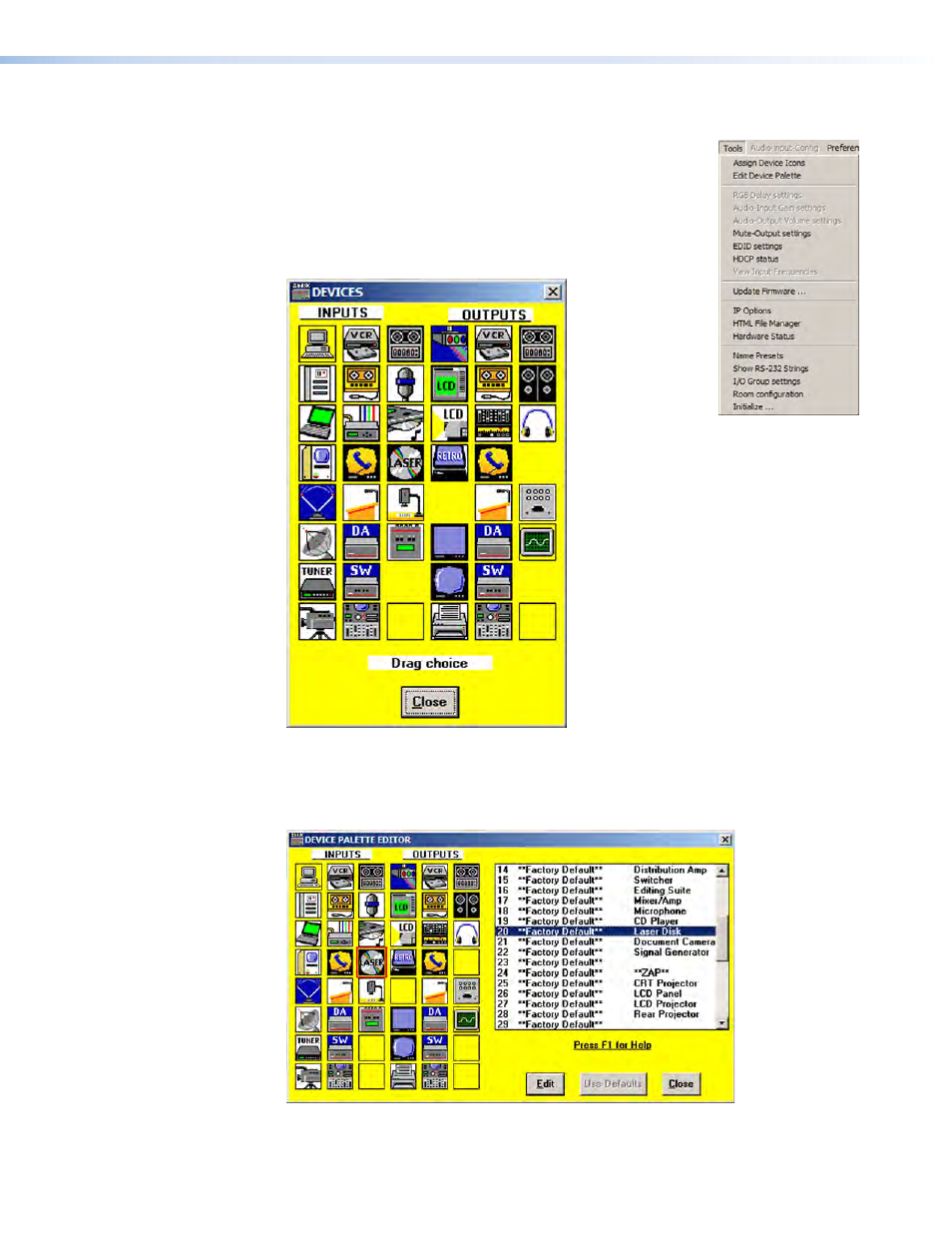

Tools menu
The Tools menu contains the following options. Grayed out
options are unavailable on your switcher.)
• Assign Device Icons — Displays the complete set of input
and output device icons. You can drag any of these icons to
the input and output boxes. To remove an icon from an input
or output box, drag an empty square from this list to the input
or output box.
Figure 83. Devices Window
• Edit Device Palette — Allows you to add your own device icon graphics. For
instructions on using this editing window, press on your computer keyboard to
display a help page.
Figure 84. Device Palette Editor
