DXP DVI Pro and DXP HDMI Series • Operation 30
2. Press and release the Preset button.
PRESET
All buttons with assigned
presets light.
Press and release the
Preset button.
The Preset button lights.
Preset Assigned
INPUTS
1 2 3 4 5 6 7 8
No Preset Assigned

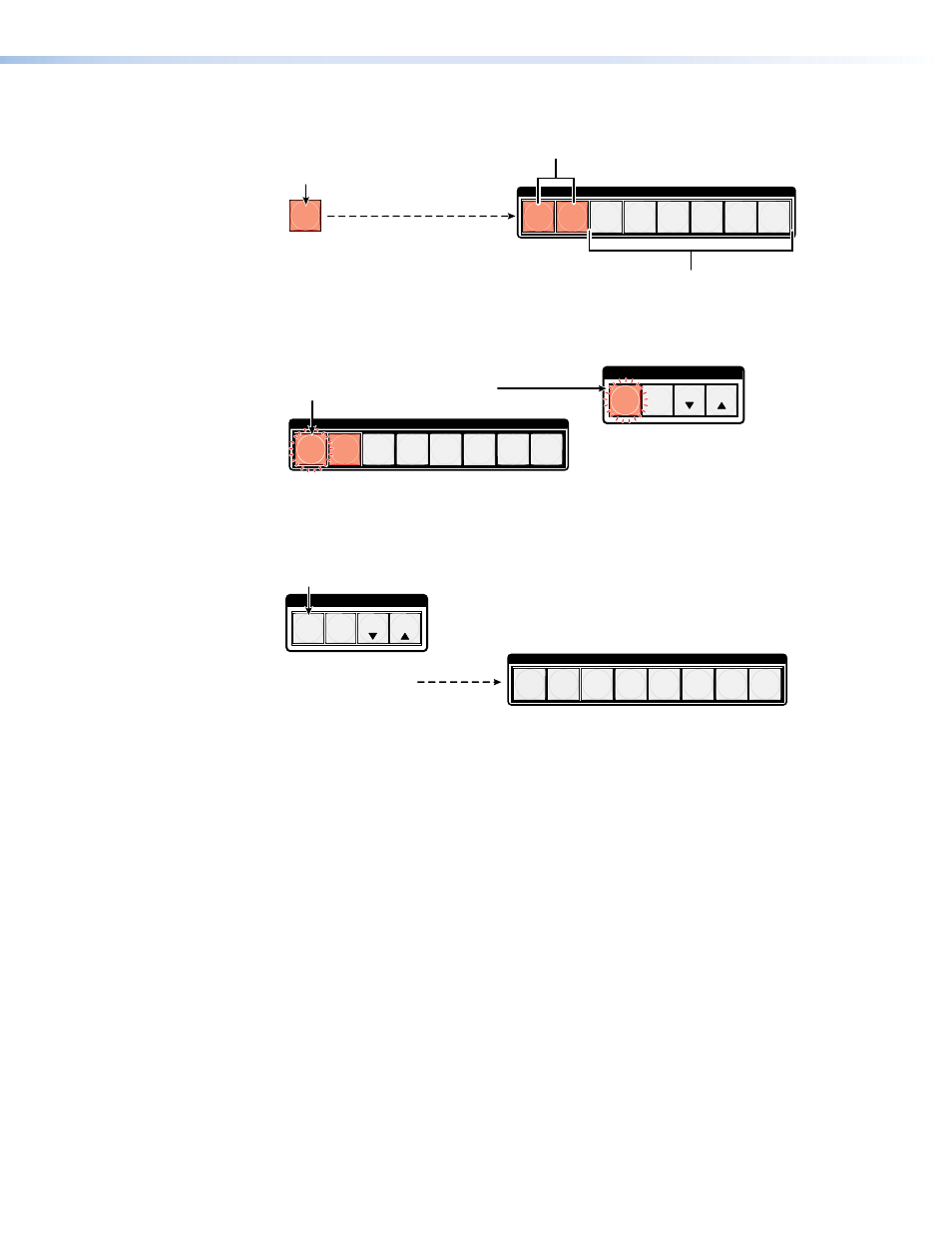

Figure 42. Enter Recall Preset Mode
3. Press and release the input or output button for the desired preset.
C O N T R O L
ESC VIEW
The Enter button blinks
to indicate the need to
recall the preset.
INPUTS
1 2 3 4 5 6 7 8
PRESET ENTER
Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not recalled.
Figure 43. Select the Preset
4. Press and release the Enter button. The configuration stored in the selected memory
location is now the current configuration and can be viewed in view-only mode.
C O N T R O L
PRESET ENTER ESC VIEW
All input buttons return to unlit or background illumination.
The Enter and Preset
buttons return to unlit or
background illumination.
Press the Enter button to
recall the preset.
INPUTS
1 2 3 4 5 6 7 8
Figure 44. Press the Enter button
